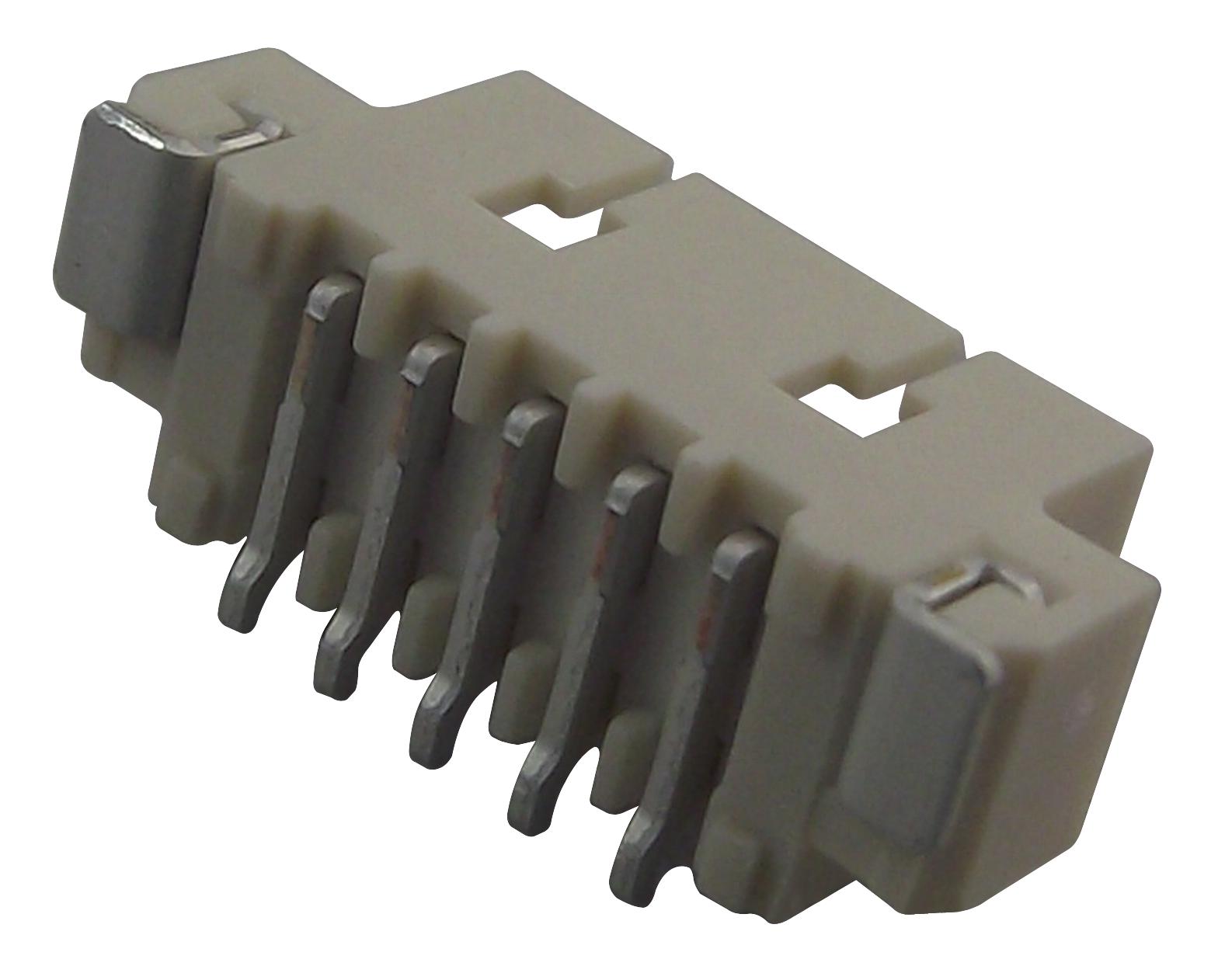

MULTICOMP PRO MC34415 Pin Header
The shrouded pin header is a surface-mount, 1.25mm pitch component designed for reliable connections in compact electronic assemblies. Made from high-temp UL94V-0 plastic with copper alloy contacts that are tin plated, it offers robust performance with a current rating of 1A AC/DC and a voltage rating of 125V AC/DC. The header features durable insulators resistant to high temperatures, with contact resistance of 20mΩ max and insulation resistance greater than 100MΩ. Suitable for precise, high-reliability applications, it provides a secure and easy-to-mate connection in SMD configurations.
MULTICOMP PRO MC34415 Pin Header Specifications:
- Pitch: 1.25mm
- Operating Temperature Range: -40°C to +85°C
- Material and Finish: Copper alloy contacts, tin plated, high-temp UL94V-0 plastic insulator
- Current Rating: 1A AC/DC
- Voltage Rating: 125V AC/DC
- Contact Resistance: 20mΩ max
- Insulation Resistance: > 100MΩ
- Withstanding Voltage: 250V AC for one minute
- Dimensions vary per model (e.g., 2 Pos: 7.25mm x 4.25mm, 3 Pos: 8.5mm x 5.5mm, etc.)
- Surface-mount design suitable for PCB applications
Buy the Multicomp Series 1.25mm Shrouded Pin Header: MC34415
Enhance your electronic projects with the high-quality, surface-mount 1.25mm pitch shrouded pin header. Crafted from durable high-temp plastic and copper alloy contacts, it guarantees reliable electrical connections. With a current capacity of 1A and a voltage rating of 125V, this component features low contact resistance and excellent insulation resistance. Ideal for compact PCB assemblies, it provides easy mating with secure fit, making it perfect for industrial electronics, control systems, and automation applications. Order online today for fast, reliable delivery.
Buy Multicomp Series 1.25mm Shrouded Pin Header MC34415 now and experience unmatched reliability and performance with secure surface-mount connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34415?
You can click on the BUY or RFQ button to purchase MC34415 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34415?
You can download the MC34415 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34415?
MULTICOMP PRO
