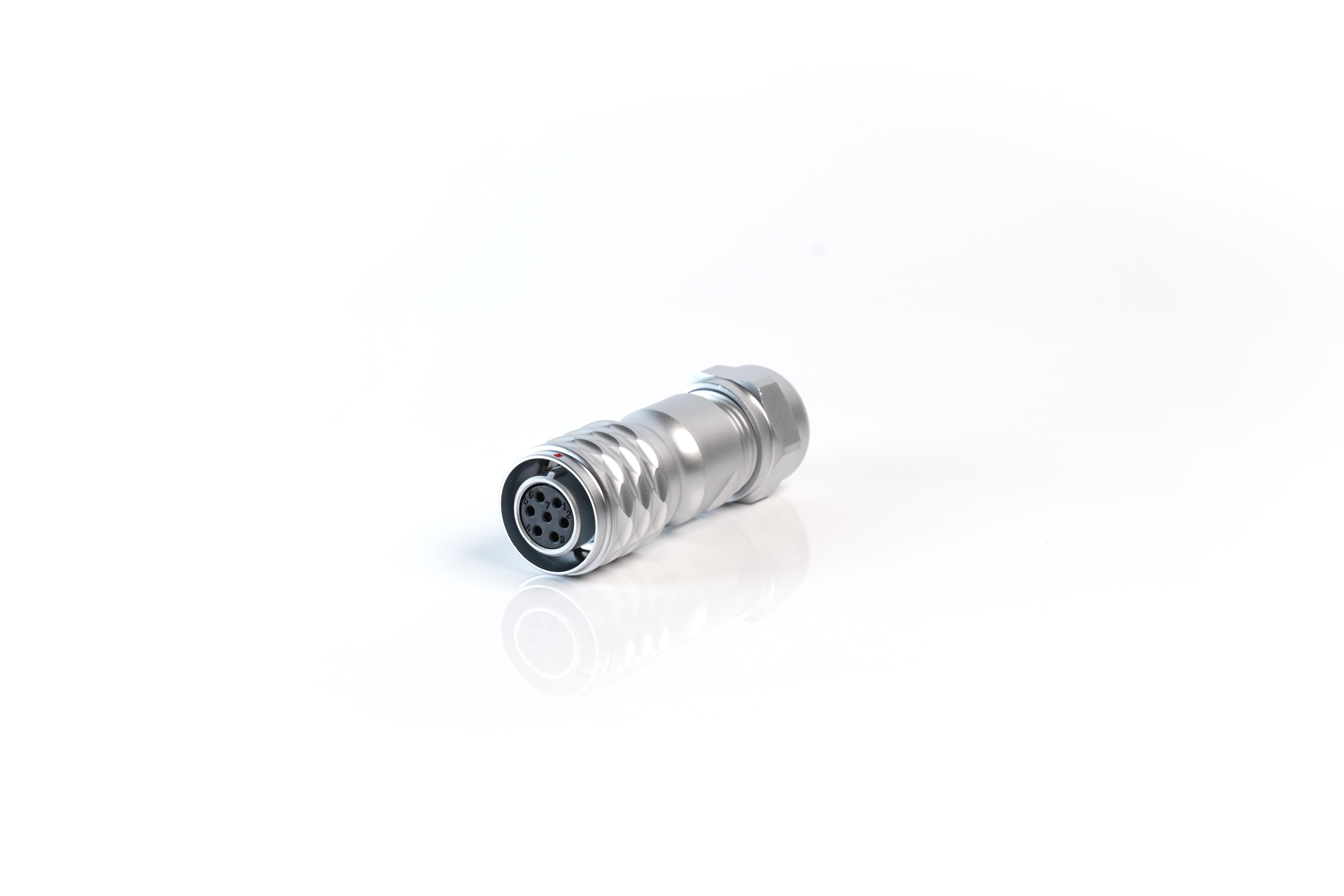

MULTICOMP-PRO MP002738 Industrial M12 Push-Pull Connector
The MP M12 push-pull connectors are made of chrome-plated brass, offering excellent durability and corrosion resistance for harsh environments. They are designed for quick and secure connections with a push-pull coupling mechanism. Available in panel mount, cable mount, and in-line configurations, these IP67-rated connectors are suitable for outdoor and indoor use. They support solder termination and fit a 12mm panel cut-out, supporting multiple pole configurations including 2, 4, 5, and 7 contacts. Ideal for automation, process control, industrial automation, medical, security, and measurement applications, ensuring reliable, weather-resistant performance.
MULTICOMP-PRO MP002738 Industrial M12 Push-Pull Connector Specifications:
- Material: Brass with chrome plating
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Push-pull
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Rated Current: 13A for 2 contacts, 5A for 4,5,7 contacts
- Rated Voltage: 250V for 2 contacts, 200V for 4,5 contacts, 180V for 5 contacts, 125V for 7 contacts
- Contact Resistance: 2.5mΩ for 2 contacts, 5mΩ for 4,5,7 contacts
- Wire Size: 0.75mm² / 18 AWG
- Connector Outer Diameter: 4mm to 6.5mm / Smm to 8mm
- Panel Cutout: 3.5mm max, 20mm x 44.2mm
- Dimensions: Supports panel and cable mount with secure contact alignment
- Mating Cycles: 500
- Test Voltage: 1500V for 1 min., 1000V for 1 min.
- Temperature Range: -40°C to +85°C
Buy the Multicomp Series M12 Push-Pull Connector: MP002738
Order the Multicomp M12 Push-Pull Connector MP002738 online today for a reliable, weatherproof connection solution designed for industrial automation, automation sensors, and process control systems. Featuring robust chrome-plated brass construction for durability, this IP67-rated connector offers quick coupling, multiple configurations, and support for solder termination. Its versatility extends to panel, cable, and inline mount options, supporting various pole configurations. Ensure your automation or measurement project benefits from high-quality, corrosion-resistant connectors that deliver long-lasting performance and secure connections in harsh environments.
Get Multicomp M12 Push-Pull Connector MP002738 today—built for precision, weather resistance, and reliable industrial connections.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002738?
You can click on the BUY or RFQ button to purchase MP002738 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002738?
You can download the MP002738 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002738?
MULTICOMP-PRO
