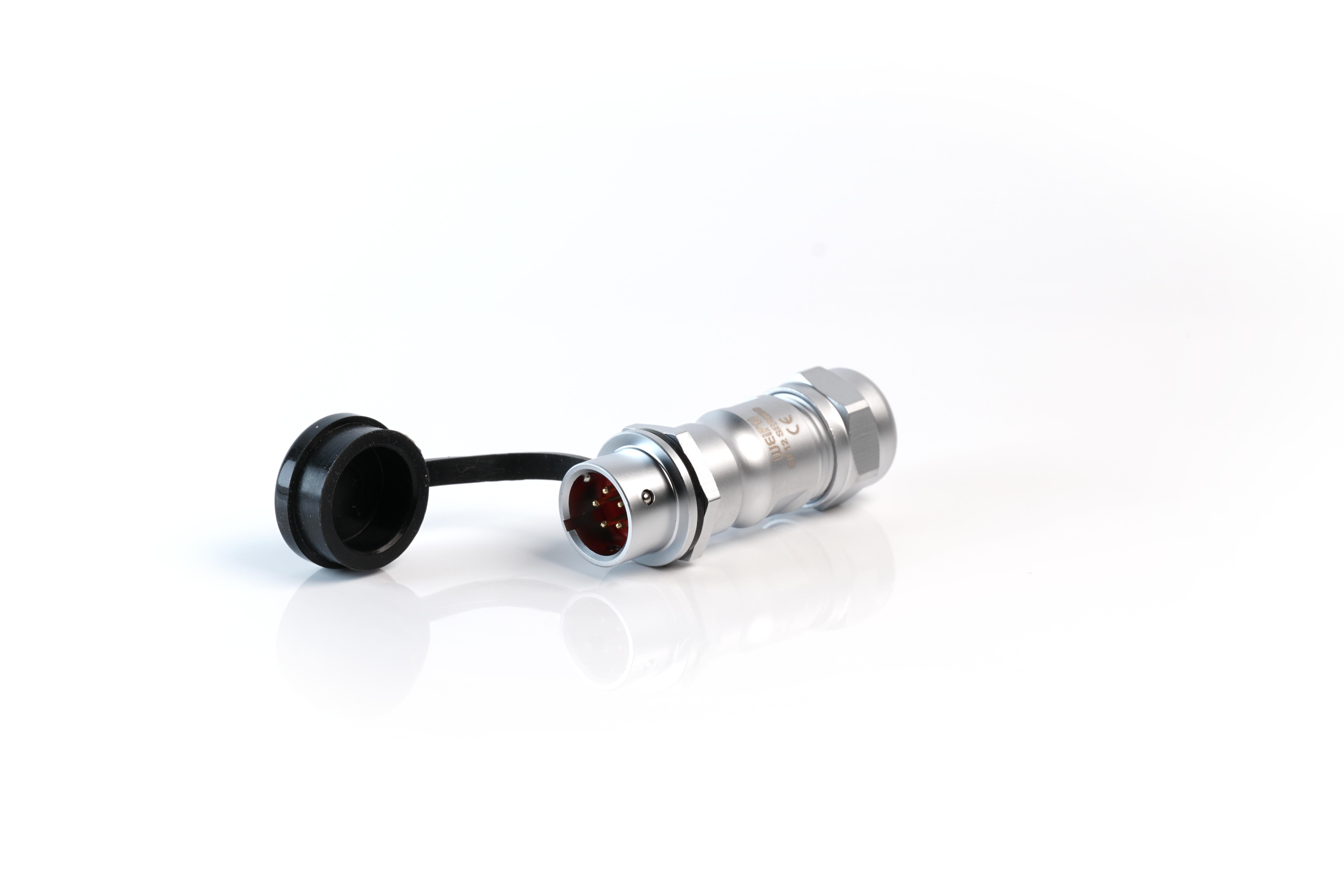

MULTICOMP PRO MP002741 M12 Push-Pull Connector
The MP M12 push-pull connectors are a series of chrome-plated brass connectors designed for durability and aesthetic appeal. They are suitable for harsh environments and available in panel mount, cable mount, and in-line cable mount configurations, offering options for cable-to-cable or cable-to-panel connections. Featuring a push-pull coupling mechanism for quick and easy connection and disconnection, these IP67-rated connectors are ideal for indoor and outdoor use. They fit a 12mm cut-out, utilize solder termination, and come in configurations with 2, 4, 5, and 7 poles, making them perfect for automation, medical, security, and industrial applications.
MULTICOMP PRO MP002741 M12 Push-Pull Connector Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of contacts: 2, 4, 5, 7
- Rated Current: 13A for 2 contacts, 5A for 4, 5, and 7 contacts
- Rated Voltage: 250V for 2 contacts, 200V for 4, 180V for 5, 125V for 7 contacts
- Test Voltage: 1500V min. for 2 and 4 contacts, 1000V min. for 5 and 7 contacts
- Contact Diameter: 1.6mm (2 contacts), 1mm (4, 5, 7 contacts)
- Wire Size: 0.75/18 AWG
- Dimensions: Fits 12mm cut-out, overall length varies depending on configuration
Buy the Multicomp Series M12 Push-Pull Connectors: MP002741
Enhance your industrial and automation systems with our durable M12 push-pull connectors. Featuring chrome-plated brass shells, IP67 weatherproof rating, quick coupling mechanism, and various configurations, these connectors are perfect for harsh environments. They support solder termination and are rated for high currents and voltages. Easy to install with a 12mm cut-out, suitable for indoor and outdoor applications. Purchase online now for reliable, long-lasting connections in medical, security, and process control systems.
Order your Multicomp Series M12 Push-Pull Connectors today and ensure reliable, weatherproof connections for industrial and automation projects.
