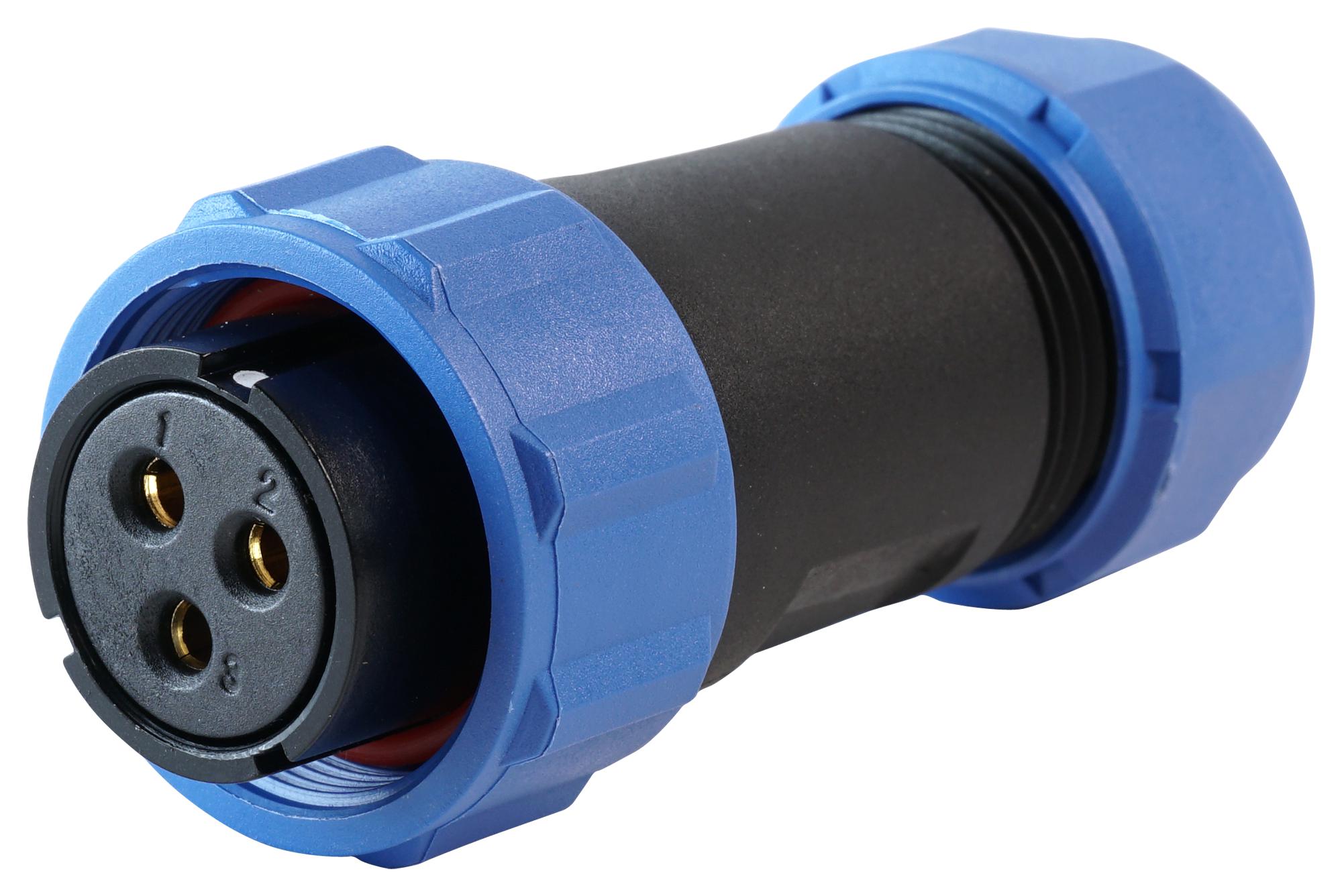

MULTICOMP-PRO MP002560 Industrial Connectors
The MP-T21 IP68 series offers durable, weatherproof connectors with threaded coupling and IP68 sealing, suitable for industrial, automation, and outdoor applications. These connectors support multiple pole configurations—2, 3, 4, 5, 7, 9, and 12 poles—and feature options for solder or screw terminations, making them versatile for various wiring needs. Designed for rugged environments, they include panel, cable, and inline cable mount options, ensuring reliable performance in harsh conditions. An optional IP68 cap provides extra protection against dust and water ingress, ideal for automation systems, process control, and outdoor electronics.
MULTICOMP-PRO MP002560 Industrial Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Coupling: Threaded
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500
- Rated Current: 30A (2-4 poles), 15A (5 poles), 5A (7-12 poles)
- Rated Voltage: 500V (2-5 poles), 400V (7-12 poles)
- Test Voltage: 1500V for 1 min
- Contact Resistance: 1mΩ (2-4 poles), 2.5-5mΩ (5-12 poles)
- Wire Size for Solder: 4/11 mm²/AWG 50/0.75, 18
- Wire Size for Screw: 1.5/15 mm²/AWG 50/0.75
- Mating Cycles: 500
- Compatibility: Suitable for automation, outdoor electronics, industrial control
- Dimensions: Suitable for 21mm cutout size, with options for various mounting styles
- Cap: Optional IP68 dust cap available for enhanced sealing
Buy the Buy Multicomp MP002560 Industrial Connectors Part Number MP002560 Online
Enhance your automation and industrial projects with our reliable IP68-rated connectors. Designed for durability, these connectors offer threaded coupling, multiple configurations, and optional protective caps. They support rugged environments, feature corrosion-resistant brass contacts with gold plating, and accommodate various wiring options with solder or screw terminations. Perfect for outdoor, outdoor automation, and harsh environment applications, these connectors are easy to install across panel, inline, and cable mounting styles. Experience quick online ordering and fast delivery for your critical industrial needs.
Order your multicomp IP68 series connector today and ensure your industrial projects have the dependable sealing and durability they need.
