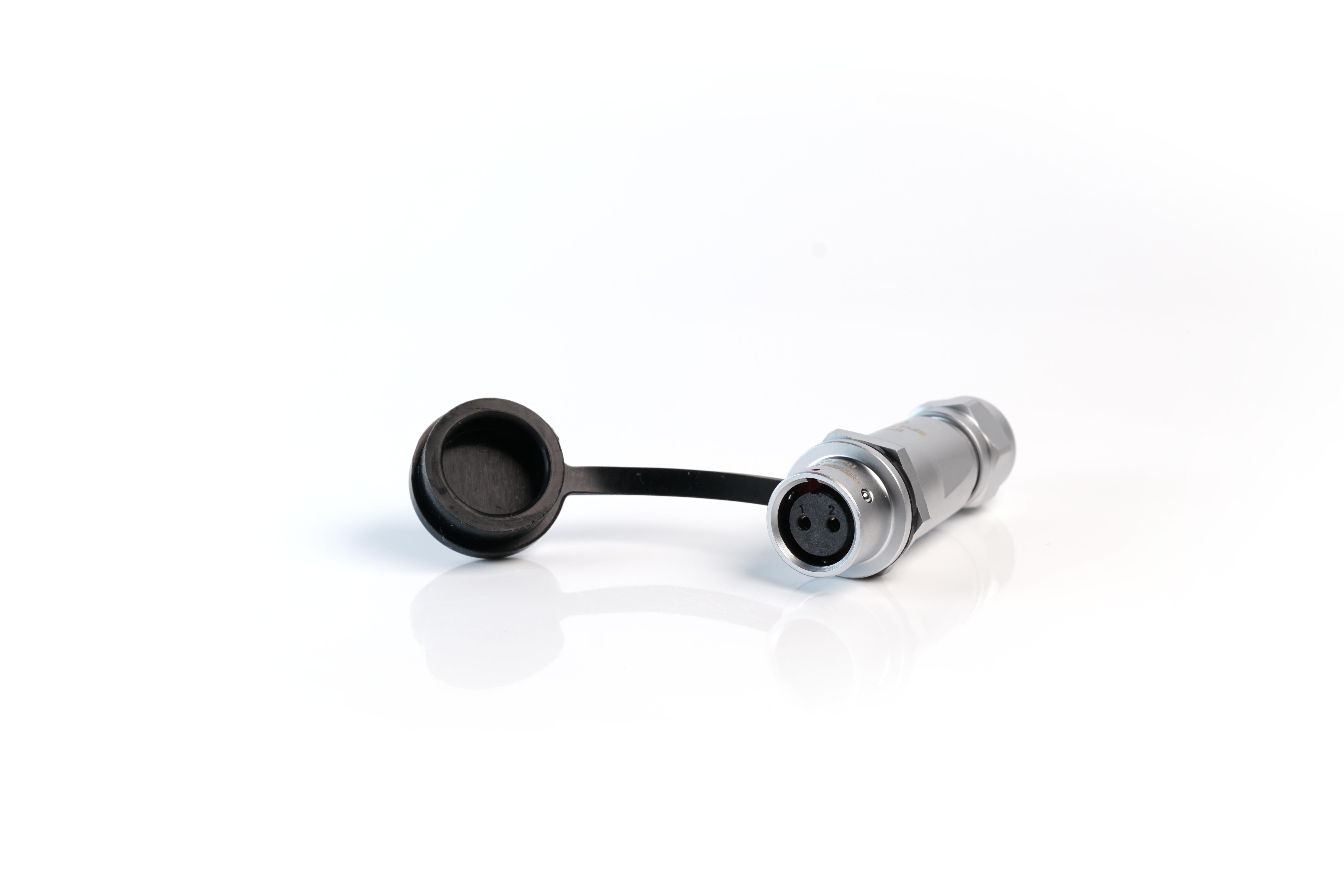

MULTICOMP PRO MP002746 Push-Pull Circular Connector
The MP M12 push-pull connectors are made from chrome-plated brass, offering durability suitable for demanding environments while maintaining an attractive appearance. They are available in panel mount, cable mount, and in-line cable mount configurations, supporting cable-to-cable or cable-to-panel connections. Featuring a push-pull coupling mechanism for easy connection and disconnection, these connectors are rated IP67 for weather resistance, making them suitable for both indoor and outdoor use. They fit a 12mm cut-out, have solder terminal connections, and are available in 2, 4, 5, and 7 pole versions. These connectors are ideal for applications in automation, process control, medical equipment, security systems, test and measurement devices, and industrial automation.
MULTICOMP PRO MP002746 Push-Pull Circular Connector Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Push-pull
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Contact Resistance: 2.5 mΩ (2 pole), 5 mΩ (4, 5, 7 pole)
- Rated Current: 13A (2 pole), 5A (4, 5, 7 pole)
- Rated Voltage: 250V (2 pole), 200V (4 pole), 180V (5 pole), 125V (7 pole)
- Test Voltage: 1500V (2, 4, 5 pole), 1000V (7 pole)
- Wire Size: 0.75/18 AWG (equivalent to 2/14 mm²)
- Dimensions: Suitable for 12mm panel cutout
- Connection Type: Solder termination
- Cable Outer Diameter Range: 4mm to 6.5mm or 5mm to 8mm
- Mating cycles: 500
Buy the Buy Multicomp Push-Pull Circular Connectors Part Number MP002746 Online
Enhance your projects with the high-quality, durable Multicomp push-pull circular connector. Constructed from chrome-plated brass with IP67 protection, it’s suitable for industrial, automation, and outdoor applications. Available in panel, cable, and in-line mount styles with 2, 4, 5, and 7 pole configurations, featuring solder terminals for secure wiring. Rated for -40°C to +85°C, supporting 500 mating cycles, ensuring long-term performance in demanding environments. Order online now for fast delivery and dependable connectivity.
Order your Multicomp Series MP002746 push-pull connector today and ensure reliable, weather-resistant connections for your industrial and outdoor projects.
