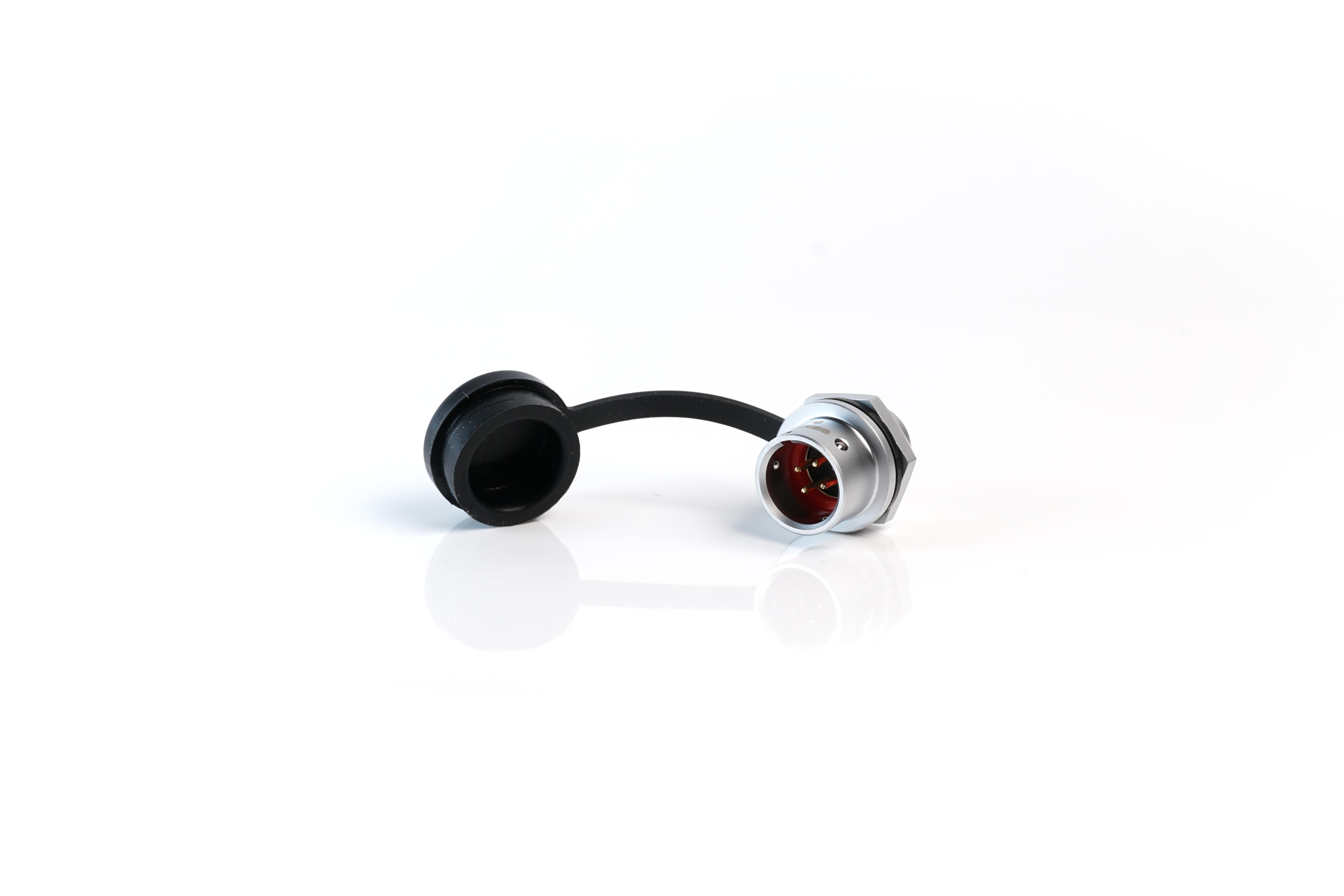

MULTICOMP PRO MP002748 M12 Push-Pull Connector
The MP M12 push-pull connectors are crafted from durable chrome-plated brass, ensuring long-lasting performance in harsh environments while maintaining a sleek appearance. They support various configurations including panel, cable, and inline mount, enabling flexible connections such as cable-to-cable or cable-to-panel. Featuring a reliable push-pull coupling mechanism, these IP67-rated connectors provide quick, secure, and dustproof connections suitable for outdoor and indoor applications. With a 12mm mounting hole, solder termination, and options for 2, 4, 5, or 7 poles, they are ideal for automation, process control, and industrial uses, offering excellent electrical and mechanical performance.
MULTICOMP PRO MP002748 M12 Push-Pull Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13 A for 2-pin, 5 A for 4, 5, and 7-pin options
- Rated Voltage: 250 V AC for 2-pin, 200 V, 180 V, 125 V for other configurations
- Test Voltage: 1500 V for 2-pin, 1000 V for others
- Contact Resistance: 2.5 mΩ (2-pin), 5 mΩ (others)
- Wire Size: 0.75 mm² / 18 AWG
- Cable Outer Diameter Range: 4 mm to 6.5 mm
- Dimensions: 19 mm mounting diameter, 44.2 mm panel cutout, 3.5 mm max panel thickness
- Connection Type: Solder termination
- Mounting Type: Panel, cable, inline cable
- Part Number: MP002748
Buy the Buy Multicomp M12 Push-Pull Circular Connector Part Number MP002748 Online
Purchase the Multicomp M12 Push-Pull Connector MP002748 online today for your industrial automation needs. Featuring a robust chrome-plated brass shell, IP67 water and dust resistance, and a quick push-pull coupling mechanism, this connector is perfect for harsh environments. It supports multiple configurations, including panel, cable, and inline mount, with solder terminations and a 12mm mounting hole. Ideal for process control, automation, and security systems, ensuring reliable electrical connections with high durability and ease of installation.
Get Multicomp M12 Push-Pull Connector MP002748 today—designed for quick, secure, and reliable industrial connections with IP67 durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002748?
You can click on the BUY or RFQ button to purchase MP002748 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002748?
You can download the MP002748 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002748?
MULTICOMP PRO
