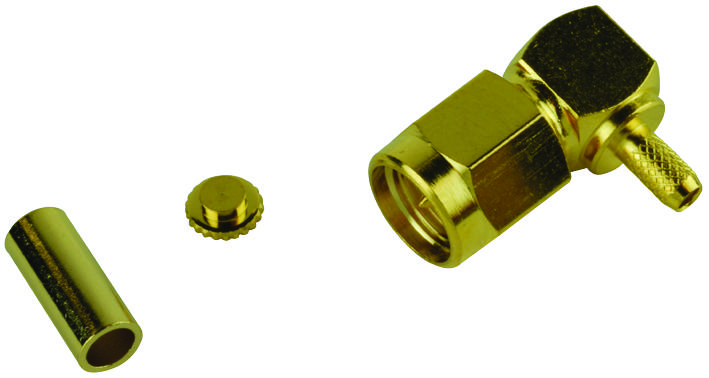

MULTICOMP PRO MC23551 SMA Right-Angle Connector
The MC23551 SMA right-angle adapter is designed for high-frequency, RF, and microwave applications, supporting frequencies up to 3 GHz. Made with a brass body and brass center contact, it features PTFE insulation for excellent dielectric properties and durability. The connector ensures reliable performance with a maximum working voltage of 335V and a nominal impedance of 50 ohms. Suitable for communication, networking, defense, military, and aerospace applications, it offers easy cable attachment with crimp and solder options, operating across -65°C to +165°C for versatile, high-performance use.
MULTICOMP PRO MC23551 SMA Right-Angle Connector Specifications:
- Frequency Range: DC to 3 GHz
- Impedance: 50 ohms
- Max Working Voltage: 335 volts
- Proof Voltage: 750 volts
- VSWR: 1.24 maximum
- Material Body: Brass PER JIS-C3604
- Material Center Contact: Brass PER JIS-C2700
- Insulation: PTFE
- Crimp Ferrule Material: Brass Gold
- Cable Attachment: Crimp (outer), Solder (inner)
- Recommended Coupling Torque: 3 to 5 in-lbs
- Cable Retention Force: 215 lbs minimum
- Crimp Size: 3.5 (.215) hex crimp tool
- Operating Temperature Range: -65°C to +165°C
- Dimensions: Millimetres (Inches) - not specified
Buy the Multicomp Series SMA Right-Angle Connector: MC23551
Purchase the Multicomp MC23551 SMA right-angle connector online today for high-frequency applications supporting up to 3 GHz. Crafted with brass and PTFE insulation, it provides excellent electrical performance, durability, and ease of installation. Perfect for communication, networking, aerospace, and defense projects, this connector ensures stable impedance and reliable connections under demanding conditions. Experience professional-grade quality, fast delivery, and guaranteed compatibility to meet your project requirements efficiently. Order now and ensure optimal RF and microwave system performance.
Buy Multicomp MC23551 SMA right-angle connector now and experience reliable high-frequency performance with durable construction for demanding RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC23551?
You can click on the BUY or RFQ button to purchase MC23551 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC23551?
You can download the MC23551 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC23551?
MULTICOMP PRO
