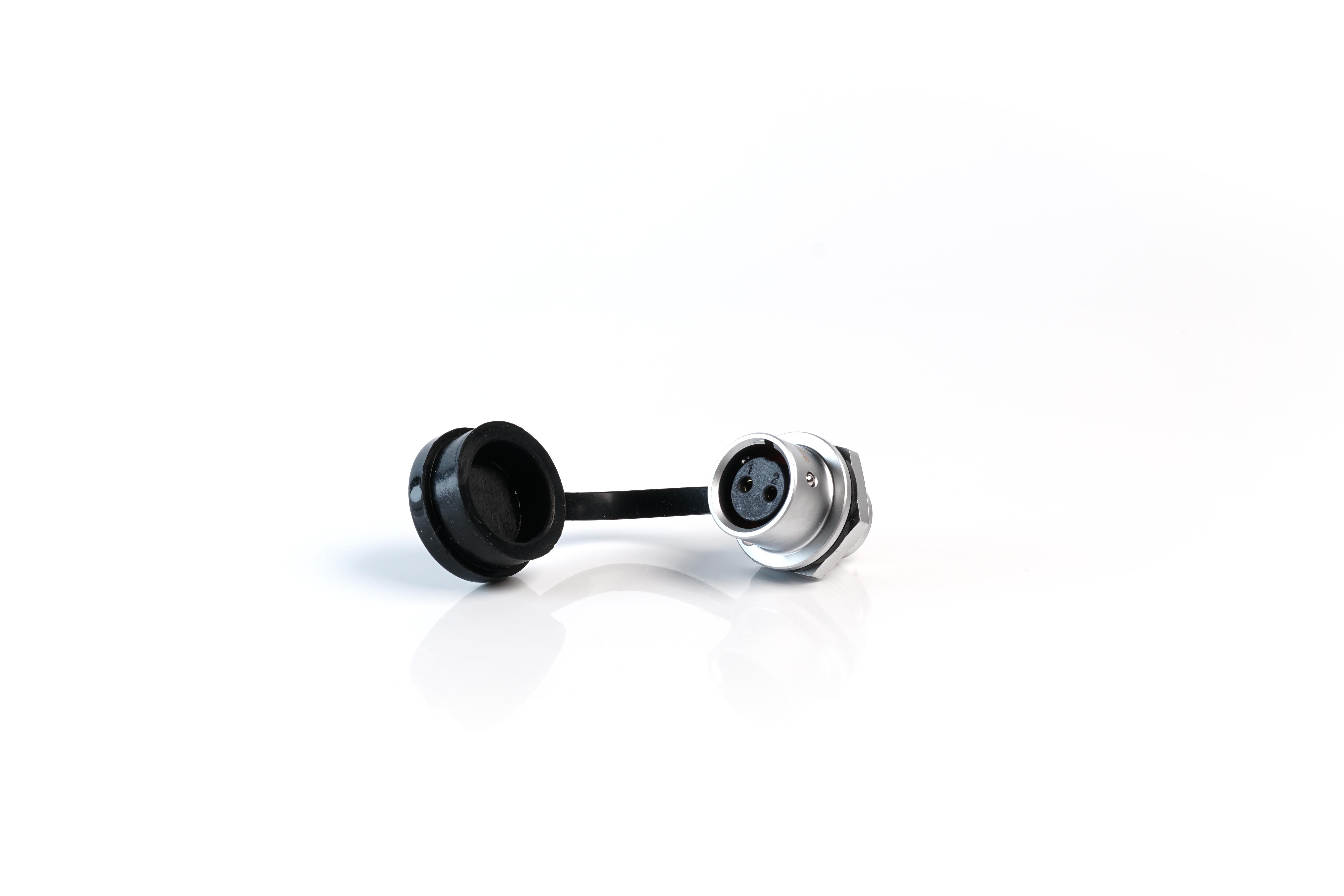

MULTICOMP PRO MP002751 M12 Push-Pull Connector
The MP M12 push-pull connectors are corrosion-resistant, chrome-plated brass devices designed for durability and aesthetic appeal. These connectors are available in panel mount, cable mount, and inline configurations, facilitating versatile cable-to-cable or cable-to-panel connections. Equipped with a push-pull coupling mechanism for effortless operation, they feature an IP67 rating for weather resistance, suitable for indoor and outdoor applications. With a 12mm panel cut-out, solder termination, and versions in 2, 4, 5, and 7 poles, they are ideal for automation, process control, industrial automation, medical devices, security, and testing equipment.
MULTICOMP PRO MP002751 M12 Push-Pull Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- Ingress Protection: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13A (2-pin), 5A (4, 5, 7-pin)
- Rated Voltage: 250V (2-pin), 200V (4-pin), 180V (5-pin), 125V (7-pin)
- Test Voltage: 1500V (2, 4-pin), 1000V (5, 7-pin) for 1 min.
- Contact Resistance: 2.5 mΩ (2-pin), 5 mΩ (others)
- Wire Size: 0.75/18 AWG
- Panel Cutout: 3.5 mm max
- Cable Outer Diameter: 4mm to 6.5mm
- Dimensions: Suitable for 12mm panel cutout, specific size details provided
- Type: Cable mount, inline, rear panel mount options
Buy the Multicomp Series M12 Push-Pull Connectors: MP002751
Upgrade your industrial automation, medical, or security projects with the reliable and durable M12 Push-Pull Connector. Featuring corrosion-resistant brass, a secure push-pull coupling, IP67 weather resistance, and multiple configurations, this connector provides simple assembly and excellent connection stability. Suitable for outdoor and indoor environments, its versatile design includes panel, cable, and inline options to fit various setups. With a robust rated current and voltage, it ensures safety and efficiency, making it an essential component for your automation or control system.
Order your Multicomp Series M12 push-pull connector MP002751 today and secure reliable weather-resistant connections for industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002751?
You can click on the BUY or RFQ button to purchase MP002751 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002751?
You can download the MP002751 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002751?
MULTICOMP PRO
