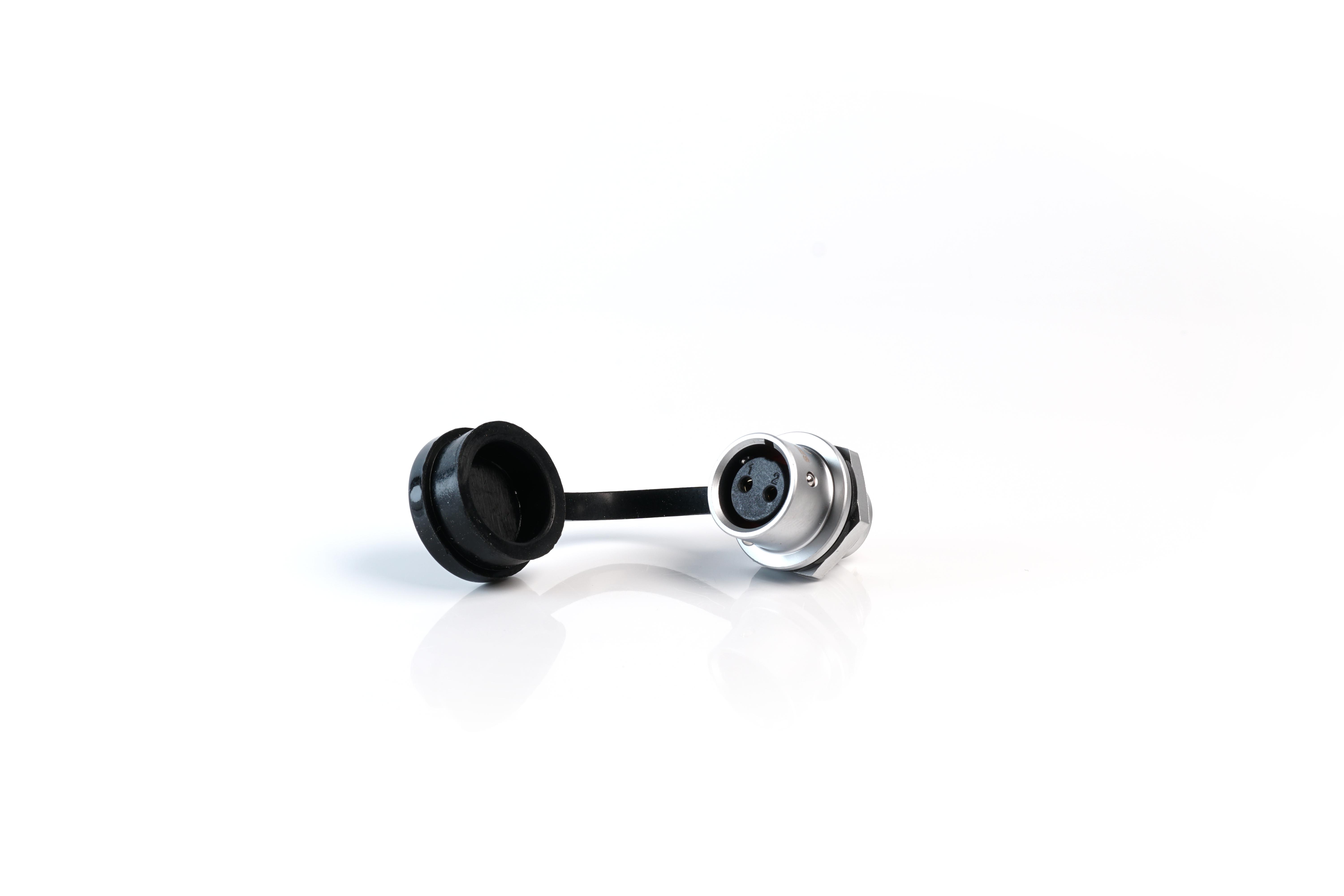

MULTICOMP PRO MP002754 M12 Push-Pull Connector
The MP M12 push-pull connectors are made of chrome-plated brass, ensuring durability in harsh environments while maintaining an attractive finish. These versatile connectors come in panel mount, cable mount, and inline configurations, allowing flexible cable and panel connections. The push-pull coupling system enables quick, reliable engagement and disengagement. Rated IP67 for weather resistance, they suit indoor and outdoor applications. With a 12mm cut-out, solder termination, and configurations for 2, 4, 5, and 7 poles, they are ideal for automation, control, medical, security, test, and industrial sectors.
MULTICOMP PRO MP002754 M12 Push-Pull Connector Specifications:
- Material: Chrome-plated Brass
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Rated Current: 13A (2-pole), 5A (4, 5, 7 poles)
- Rated Voltage: 250V (2-pole), 200V (4 poles), 180V (5 poles), 125V (7 poles)
- Contact Diameter: 1.6mm (2-pole), 1mm (4, 5, 7 poles)
- Test Voltage: 1500V (2, 4 poles), 1000V (5, 7 poles) for 1 min
- Contact Resistance: 2.5mΩ (2-pole), 5mΩ (others)
- Wire Size: 0.75/18 AWG (approximately 2mm2)
- Dimensions: Suitable for 4mm to 6.5mm cable outer diameter, panel cutout 3.5mm max
- Connection: Solder terminals
Buy the Multicomp M12– Reliable Push-Pull Connectors for Industrial Applications
Enhance your projects with the durable M12 Push-Pull Connector from Multicomp, featuring a chrome-plated brass shell, IP67 weather sealing, and quick connection system. Ideal for industrial automation, process control, medical, security, and measurement applications, these connectors offer reliable performance with solder termination and various configurations for versatile use. Easily install with panel or cable mount options, supporting up to 7 poles, making them perfect for demanding environments where durability and quick connectivity are essential. Purchase online today for dependable industrial solutions.
Order your Multicomp SeriesMP002754 M12 push-pull connector today and ensure quick, reliable connections for your industrial automation and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002754?
You can click on the BUY or RFQ button to purchase MP002754 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002754?
You can download the MP002754 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002754?
MULTICOMP PRO
