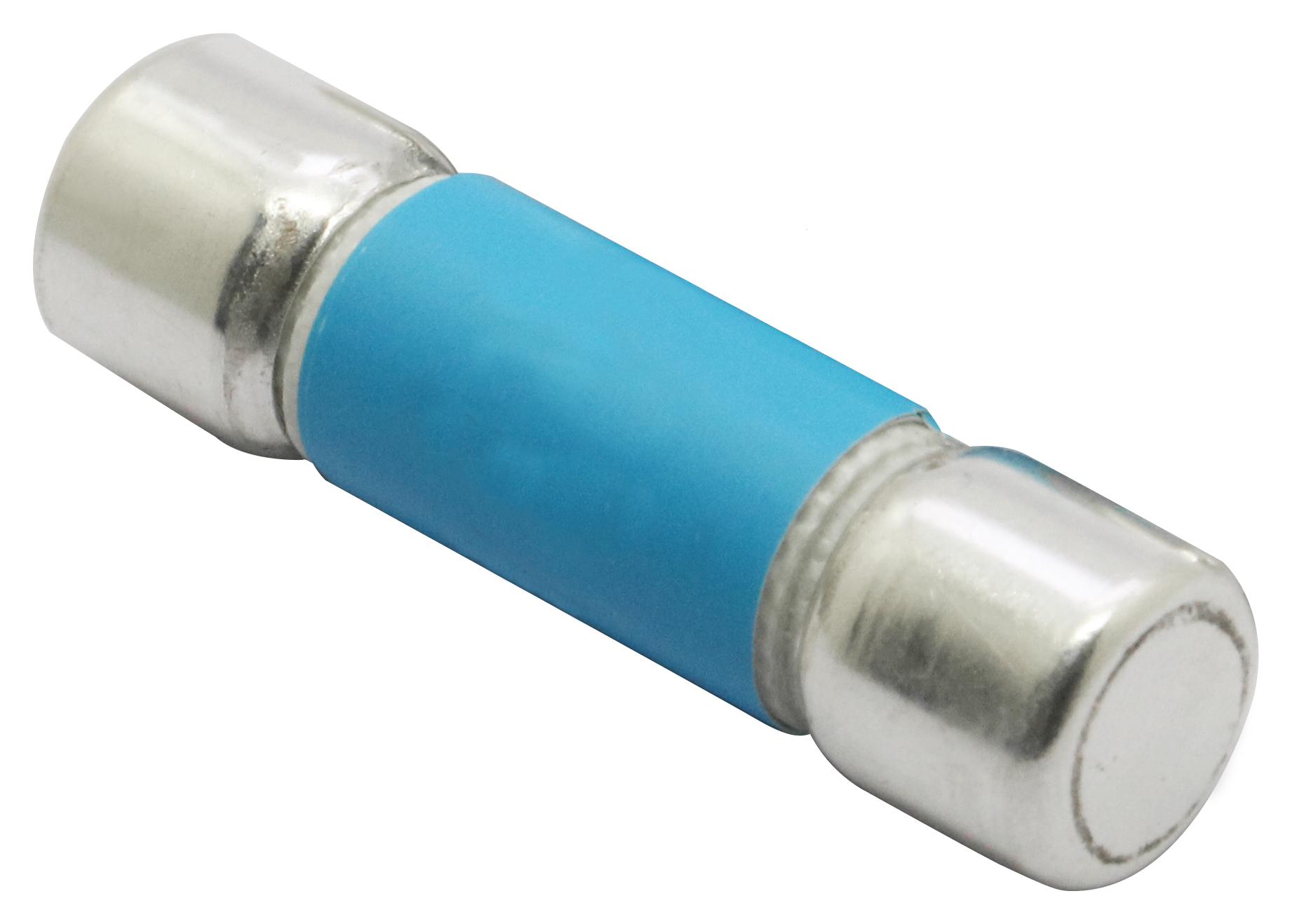

MULTICOMP PRO MP008151 Photovoltaic Fuse
This cylindrical fuse is designed for high-power photovoltaic applications, measuring 10mm x 38mm, with a rated current of 2A and capable of withstanding 1100V DC. It features glass-fiber construction and silver-plated caps for enhanced conductivity, with an IEC 60269-6 and UL 248-19 approval, and a breaking capacity of up to 30 kA. Suitable for inverter and junction box protection, it provides reliable overcurrent protection with fast response times, making it ideal for renewable energy systems and industrial electrical safety.
MULTICOMP PRO MP008151 Photovoltaic Fuse Specifications:
- Dimensions: 10mm x 38mm
- Rated Current: 2A
- Voltage Rating: 1100V DC
- Breaking Capacity: 30 kA at 1100V DC
- Construction: Glass-fiber link
- Cap Material: Silver-plated
- Compliance: IEC 60269-6, UL 248-19
- Pre-Arcing Dissipation: 40W
- Certification: UL Listed, IEC Approved
- Time Constant: 1ms to 3ms
- Application: PV inverter, junction boxes
- Temperature Range: Suitable for high-power PV systems
- Design: Customizable for special applications
Buy the Multicomp Pro MP008151 – Reliable PV Fuse for Industrial Applications
Purchase the Multicomp Pro photovoltaic fuse MP008151 online and ensure your high-power energy systems are protected with reliable, industry-approved overcurrent protection. Featuring glass-fiber construction and silver-plated caps, this 10mm x 38mm fuse supports voltages up to 1100V DC and currents of 2A. Its fast response time (1-3ms) and high breaking capacity (30 kA) make it suitable for inverter and junction box applications, delivering safety and durability for renewable energy and industrial projects. Buy now for dependable performance.
Get Multicomp Pro MP008151 today—built for precision and long-lasting durability in high-power photovoltaic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008151?
You can click on the BUY or RFQ button to purchase MP008151 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008151?
You can download the MP008151 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008151?
MULTICOMP PRO
