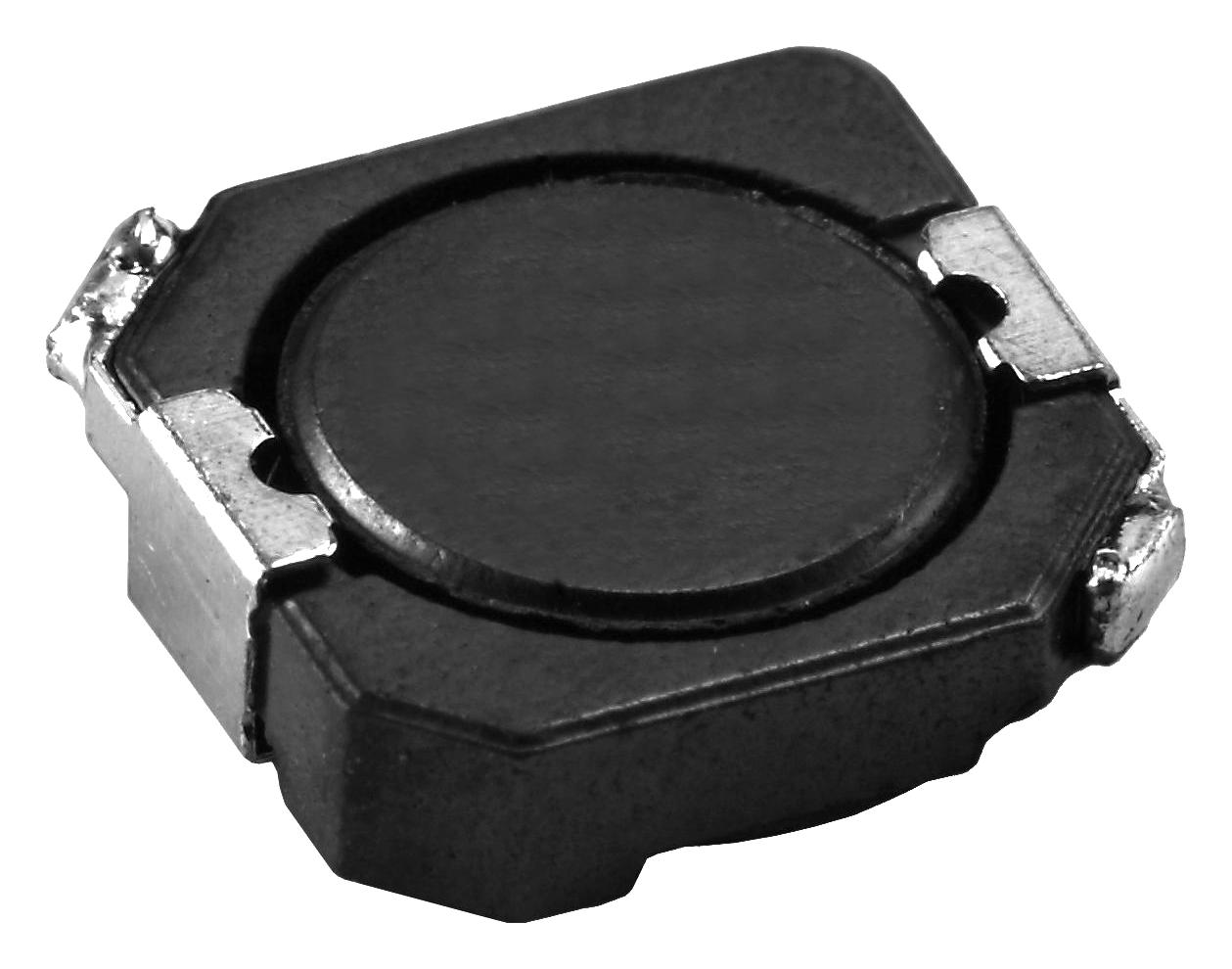

MULTICOMP-PRO MP002868 Shielded Power Inductor
The shielded SMD power inductor is designed for high power and high saturation applications, ideal for DC/DC converters, power supplies, LCD TVs, notebooks, and portable communication devices. It features a ferrite core with directly connected electrodes and magnet shielding to prevent radiation. Operating from -40°C to 125°C, it provides reliable performance with rated DC currents defined by inductance reduction or coil temperature increases, ensuring efficient power regulation in compact surface-mount packages for automated assembly.
MULTICOMP-PRO MP002868 Shielded Power Inductor Specifications:
- Rated DC current: Defined by inductance drop or temperature rise to AT=40°C (Ta=25°C)
- Operating temperature range: -40°C to 125°C
- Case Code: 1004
- Dimensions: Length 10.3 mm, Width 10.4 mm, Height 4 mm
- Core Material: Ferrite with magnetic shielding
- Inductance: 10 µH, 22 µH, 47 µH, 100 µH, 150 µH (varies by part)
- Inductance Tolerance: ±20% (for some models)
- DCR: 35 mΩ, 73 mΩ, 128 mΩ, as specified
- Packaged on tape and reel for surface mounting
- Test Conditions: 100 kHz, 0.1 V, with resistance and inductance specifications verified
- Environmental: Storage temperature 15°C to 28°C, humidity less than 80%, able to withstand thermal shocks and vibration
Buy the Buy Multicomp Shielded SMD Power Inductor Part Number MP002868 Online
Enhance your electronic designs with the high-quality shielded power inductor designed for demanding DC/DC conversion and power supply applications. This surface-mount inductor features robust ferrite core with magnetic shielding to prevent radiation interference, ensuring efficient energy transfer and stability across a wide operating temperature of -40°C to 125°C. Suitable for compact, automatic surface-mount assembly, it supports high current loads and offers flexible inductance options for various circuit needs, making it an ideal choice for power regulation in modern electronic devices.
Buy Multicomp MP002868 shielded SMD power inductor now and experience reliable high power performance for DC/DC converters and compact electronics.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002868?
You can click on the BUY or RFQ button to purchase MP002868 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002868?
You can download the MP002868 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002868?
MULTICOMP-PRO
