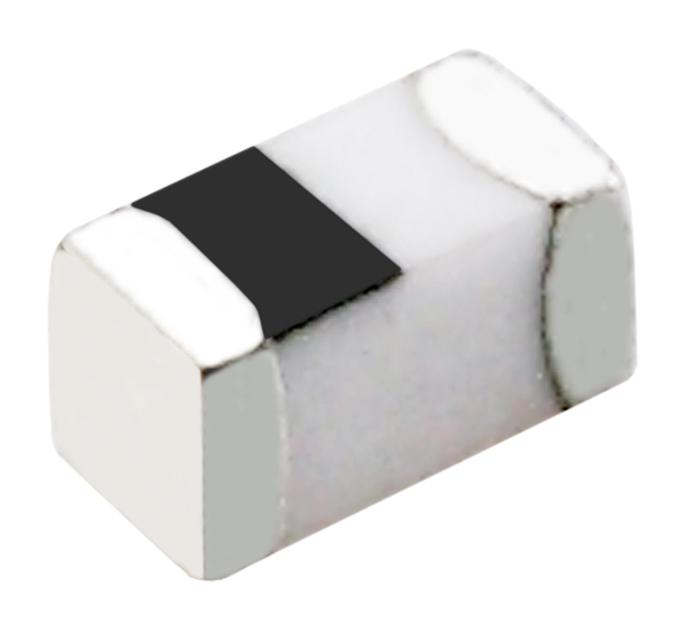

MULTICOMP-PRO MP002910 RF Inductor
This high Q multilayer chip inductor with a 10nH inductance offers excellent performance for RF applications in telecommunication equipment. Featuring RoHS compliance, it has a monolithic structure for high reliability, high self-resonant frequency, and excellent solderability. Designed for operating temperatures from -55°C to +125°C, it boasts low DC resistance, stable inductance, and high-quality factors, making it ideal for miniaturized circuits requiring high performance and durability across various electronic devices and RF circuits.
MULTICOMP-PRO MP002910 RF Inductor Specifications:
- Inductance: 10nH ±5%
- Tolerance: ±5%
- Frequency Range: up to 2000MHz
- Operating Temperature: -55°C to +125°C
- RoHS Compliant
- Case Size: 0603
- Dimension: L 1.6540.2 mm, W 0.840.2 mm, T 0.840.2 mm
- Q (Typical): >57 at 1800MHz
- DC Resistance: 0.4Ω
- Material: Ceramic core
- High self-resonant frequency
- High reliability, stable performance
Buy the Multicomp Series RF Inductor: 10nH - MP002910
Order the Multicomp high Q 10nH RF inductor today online and enjoy exceptional performance in RF and telecommunication applications. Designed with RoHS compliance and operating from -55°C to +125°C, it offers high reliability, minimal DC resistance, and excellent solderability. Perfect for miniaturized designs requiring high self-resonant frequency and stable inductance. Whether you are upgrading existing circuits or designing new RF modules, this inductor ensures durability and top performance across a wide temperature range. Buy now for fast delivery!
Buy Multicomp high Q 10nH RF inductor now and enhance your telecommunication and RF circuit reliability with excellent performance and solderability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002910?
You can click on the BUY or RFQ button to purchase MP002910 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002910?
You can download the MP002910 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002910?
MULTICOMP-PRO
