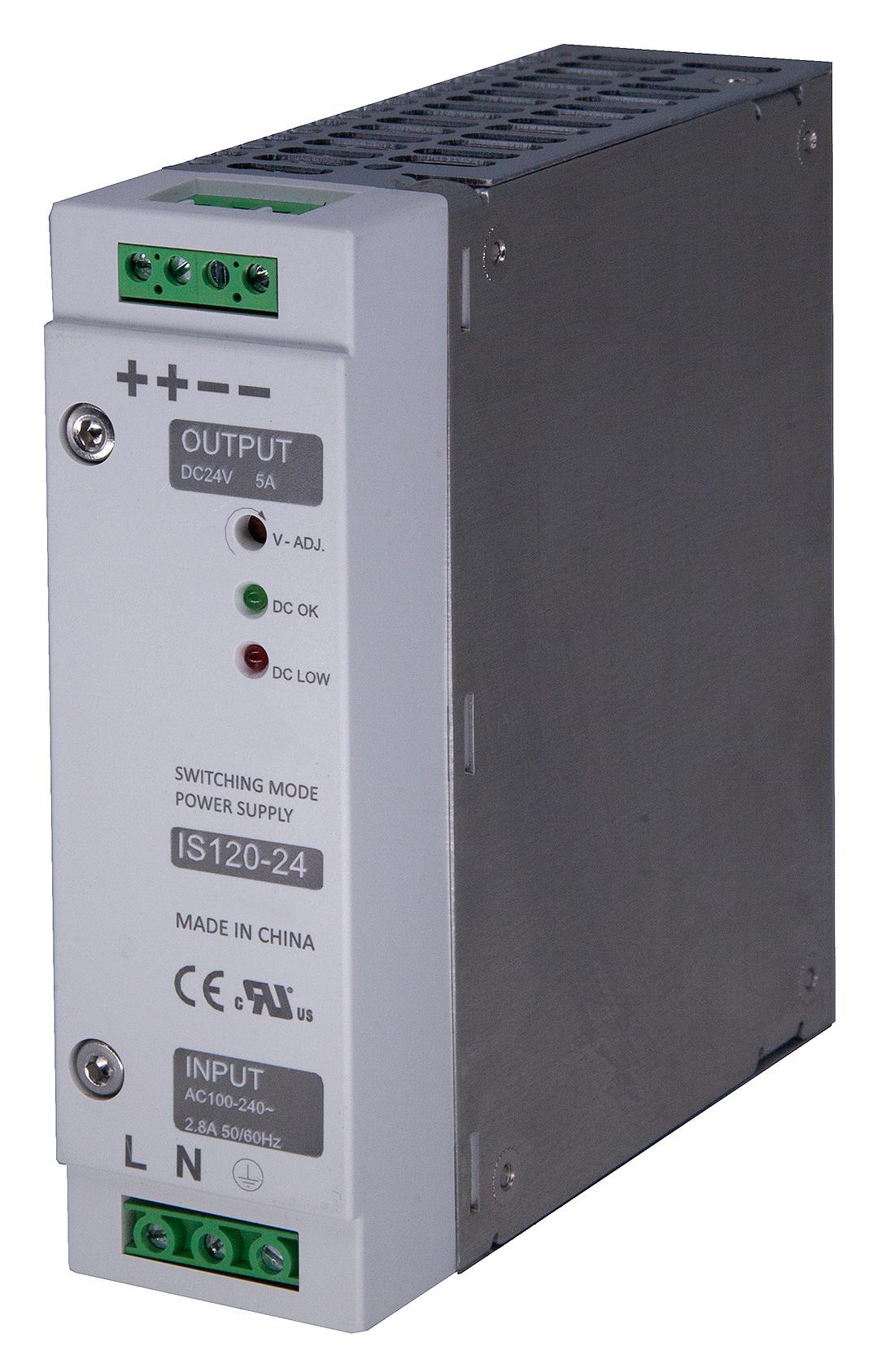

MULTICOMP PRO MP003271 Industrial Power Supply
The 120W AC-DC Din Rail Power Supply is a compact, reliable industrial power solution designed for process control, factory automation, and transportation system applications. It features universal AC input voltage (90V-264V), high efficiency (up to 85%), and protections against short circuit, overvoltage, overcurrent, and overtemperature. The power supply offers adjustable output voltage (12V or 24V models), LED indicators for status, and supports free air convection cooling. Mounting is straightforward with vertical DIN rail installation, ideal for space-constrained environments, ensuring safe, stable operation in diverse industrial settings.
MULTICOMP PRO MP003271 Industrial Power Supply Specifications:
- Input Voltage: 90V-264V AC, 47-63Hz
- Output Voltage: 12V or 24V (adjustable within range)
- Output Current: 8A (12V model), 5A (24V model)
- Efficiency: Up to 85%
- Ripple: Max 100mV (12V), Max 120mV (24V)
- Protection: Short circuit, overvoltage (20V/33V), overcurrent (10A/6.6A), over temperature (100°C)
- Dimensions: 40mm x 130mm x 125mm
- Weight: 800g
- Temperature Range: -25°C to +70°C
- Cooling: Free air convection
- Isolation Voltage: 3KV between input and output
- Certifications: CE, FCC, CB, UL
- MTBF: 200,000 hours at 25°C
- LED Indicators: Green DC-OK, Red DC Low
- Mounting: Vertical DIN rail, 35mm wide
- Compliance: RoHS
Buy the Multicomp Series Industrial Power Supply: 120W AC-DC DIN Rail MP003271
Purchase the 120W AC-DC DIN Rail Power Supply from Multicomp today and ensure reliable operation for your automation, control, or industrial project. Designed for space-efficient DIN rail mounting, it offers universal input compatibility (90V-264V AC), high efficiency up to 85%, and robust protections including short circuit, overvoltage, overcurrent, and overtemperature. Its adjustable output voltage (12V or 24V) and LED status indicators make troubleshooting easy, while free air convection cooling guarantees safe operation. Perfect for factory automation, process control, and transportation systems, ensuring durability and consistent performance in demanding environments.
Buy Multicomp 120W AC-DC DIN Rail Power Supply MP003271 now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP003271?
You can click on the BUY or RFQ button to purchase MP003271 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003271?
You can download the MP003271 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP003271?
MULTICOMP PRO
