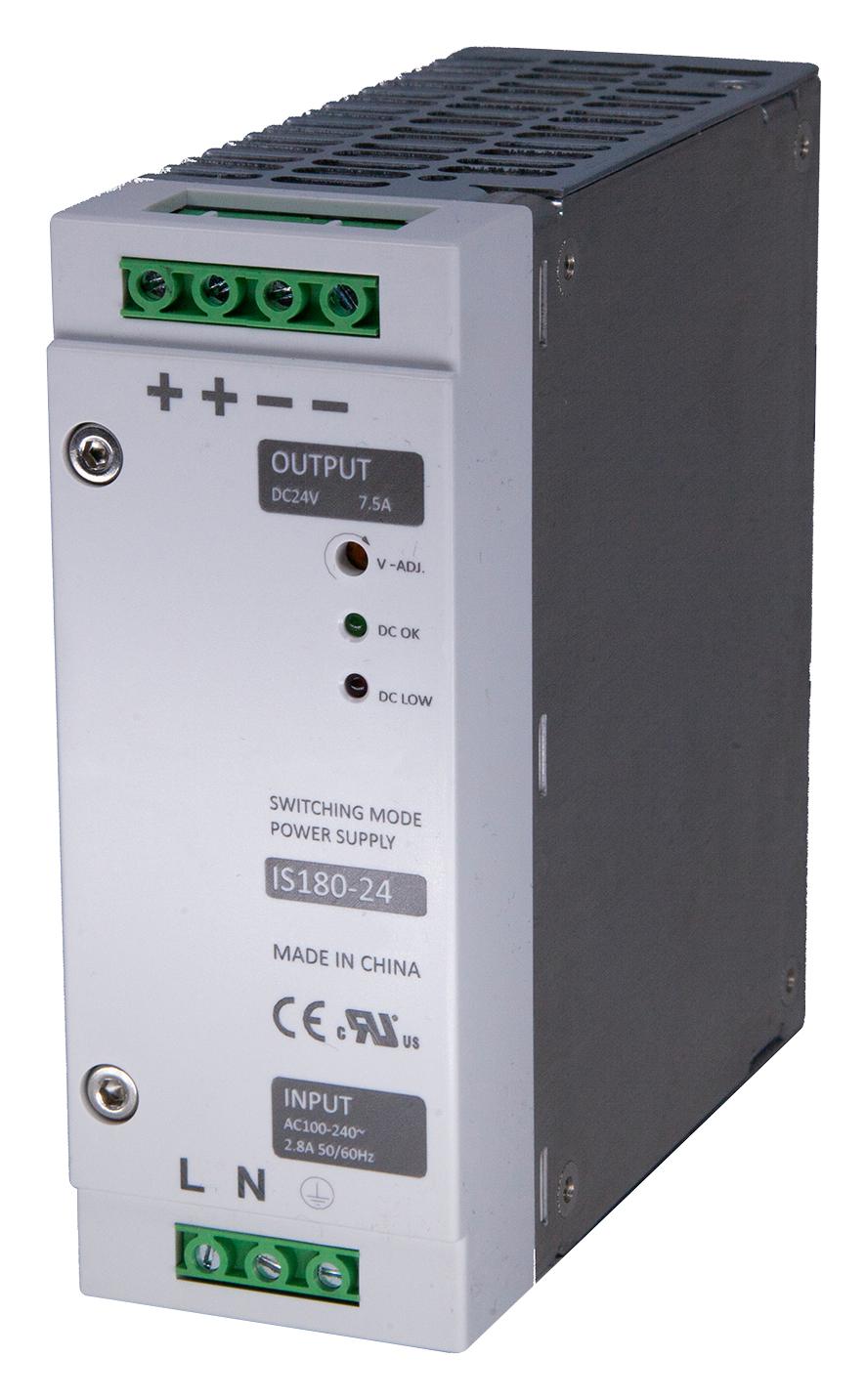

MULTICOMP PRO MP003274 Industrial Power Supply
The 180W AC-DC Din Rail Power Supply by multicomp:ro is designed for industrial automation and control applications. Featuring a compact metal enclosure with DIN rail mounting, it supports single-phase input voltage from 90V AC to 264V AC, ensuring high performance and reliable operation. It offers an adjustable output voltage from 21V to 28V, with a rated output current of 7.5A and an efficiency of 90%. Equipped with protections against short circuits, overvoltage, overcurrent, and over temperature, it includes LED indicators for DC power status and low voltage conditions, making it ideal for factory automation, process control, and traffic systems.
MULTICOMP PRO MP003274 Industrial Power Supply Specifications:
- Input Voltage: 90V AC to 264V AC
- Input Frequency: 47Hz to 63Hz
- Output Voltage: 21-28V (adjustable)
- Output Current: 7.5A
- Efficiency: 90%
- Ripple: Max. 120mV
- Protection: Short circuit, overvoltage (33V), over current (8.3A), over temperature (110°C)
- Dimensions: 50mm x 130mm x 125mm
- Weight: 950g
- Isolation Voltage: I/P-O/P: 3KV AC
- Operating Temperature: -25°C to +70°C
- MTBF: 230,000 hours
- Cooling: Free air convection
- LED Indicators: DC OK (Green), DC Low (Red)
Buy the Multicomp Series Power Supply: 180W AC-DC Din Rail MP003274
Enhance your control and automation systems with the reliable 180W AC-DC Din Rail Power Supply. Designed for industrial environments, it offers an adjustable output of 21V to 28V, high efficiency, and multiple protections including overcurrent and overvoltage. Its compact size fits DIN rails easily, and LED indicators simplify monitoring. Ideal for factory automation, process control, and traffic management systems, this power supply ensures continuous operation with robust safety features, making it a trusted choice for demanding industrial applications.
Order your multicomp Series Power Supply 180W AC-DC Din Rail MP003274 today and give your industrial automation projects the dependable power they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP003274?
You can click on the BUY or RFQ button to purchase MP003274 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003274?
You can download the MP003274 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP003274?
MULTICOMP PRO
