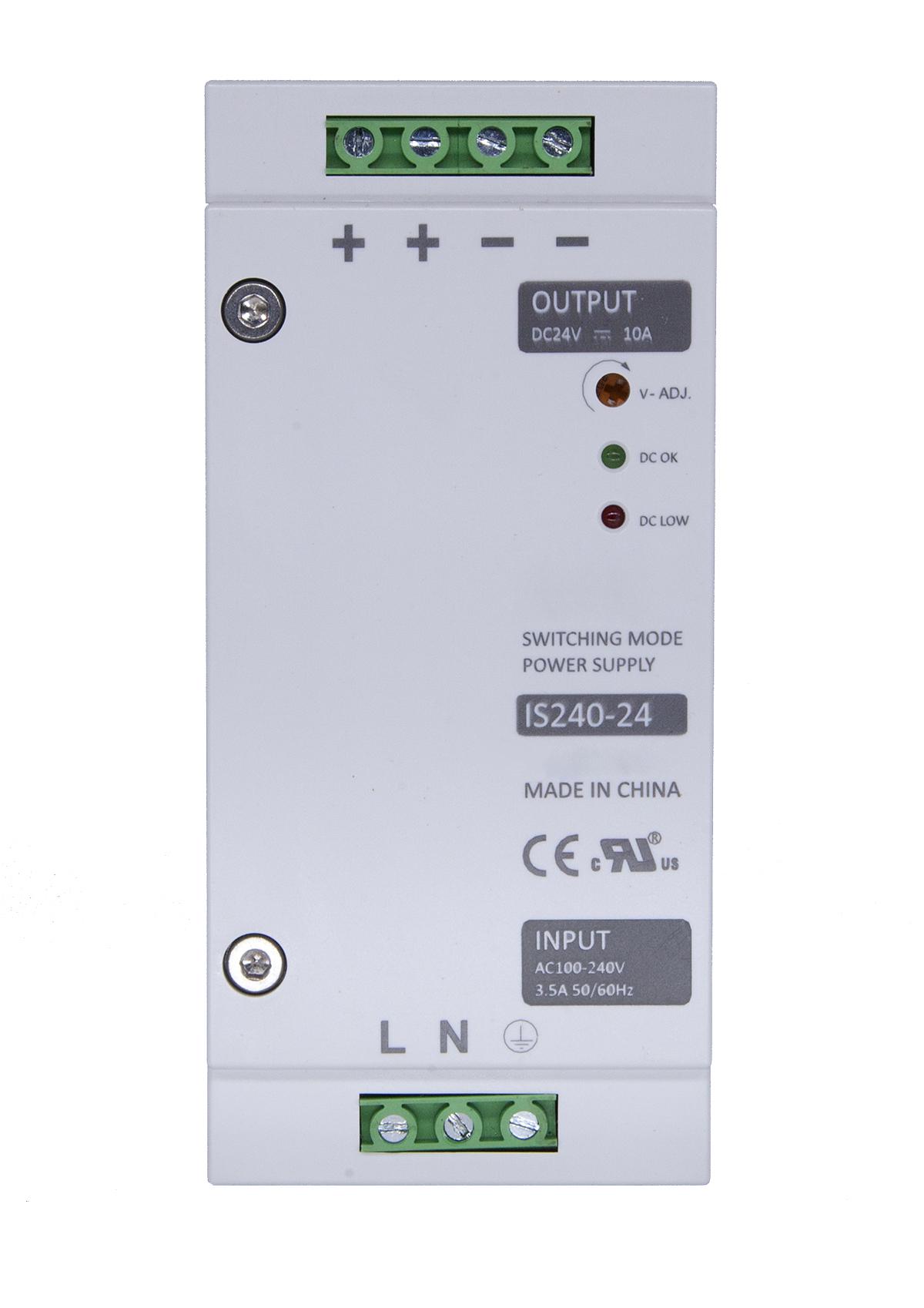

MULTICOMP PRO MP003275 Industrial Power Supply
The 240W AC-DC Din Rail Power Supply is a compact, reliable industrial power solution designed for process control, factory automation, traffic systems, and other applications. It features universal AC input voltage from 90V to 264V, over voltage and over current protection, LED indicators, and free air convection cooling. The power supply operates efficiently within -25°C to +70°C ambient temperature, with safe isolation and EMC compliance. Its sturdy DIN rail mounting method facilitates easy installation in industrial environments. It provides a stable 24V output, adjustable within 22-28V, with built-in protections for safe operation.
MULTICOMP PRO MP003275 Industrial Power Supply Specifications:
- Input Voltage: 90V to 264VAC
- Input Frequency: 47-63Hz
- Output Voltage: 24V (adjustable 22-28V)
- Output Current: 10A
- Ripple (Max): Not specified
- Efficiency: Up to 90%
- Protection: Over voltage (33V), Over current (11A), Short circuit, Over temperature (110°C ±10°C)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 20% to 95% non-condensing
- Dimensions: 60mm x 130mm x 125mm
- Weight: 1000g
- Isolation Voltage: I/P-O/P 3KV AC, I/P-FG 1.5KV AC
- Certifications: CE, FCC, CB, UL, CUL, RoHS
- MTBF: 230,000 hours at 25°C
Buy the Multicomp 240W AC-DC – Reliable DIN Rail Power Supply for Industrial Applications
Upgrade your automation setup with this 240W DIN rail power supply from Multicomp. Featuring wide input voltage compatibility from 90V to 264V AC, adjustable 24V output, and robust protections including over voltage, current, and temperature safeguards. Its compact design with easy vertical mounting on DIN rails simplifies installation in factory, traffic, and process control environments. Enjoy steady operation from -25°C to +70°C ambient temperature, with LED indicators for status and comprehensive safety certifications ensuring reliable, long-term performance for diverse industrial applications.
Buy Multicomp 240W AC-DC power supply now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP003275?
You can click on the BUY or RFQ button to purchase MP003275 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003275?
You can download the MP003275 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP003275?
MULTICOMP PRO
