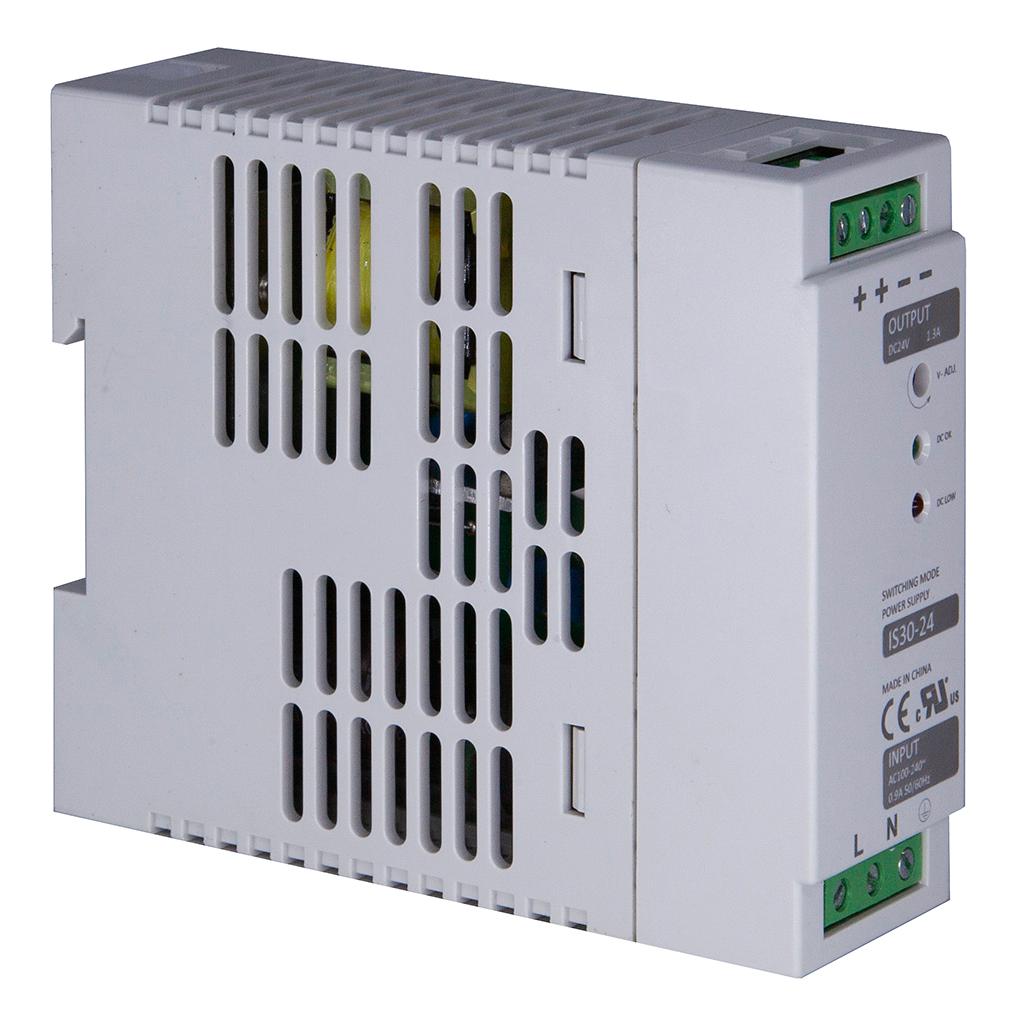

MULTICOMP PRO MP003277 Industrial Power Supply
The 30W AC-DC Din Rail Power Supply provides reliable, compact power conversion for industrial automation, process control, and transportation applications. It features universal AC input from 90V to 264V, high efficiency up to 87%, and comprehensive protections including short circuit, overvoltage, overcurrent, and overtemperature. Suitable for vertical mounting with free air convection cooling, it includes LED indicators for power and fault signals. Compact dimensions and RoHS compliance make it ideal for factory automation and process control systems, ensuring stable power output and safety compliance.
MULTICOMP PRO MP003277 Industrial Power Supply Specifications:
- Input Voltage: 90V AC to 264V AC
- Input Frequency: 47 to 63 Hz
- Output Voltage: 12V or 24V models, with ±1% accuracy
- Output Current: 2.5A for 12V, 1.3A for 24V
- Efficiency: Up to 87%
- Ripple: 42mV at 12V model, 46mV at 24V model
- Protection: Short circuit, overvoltage (16V/30V), overcurrent (4A/2.2A), over temperature (110°C ±10)
- Dimensions: 36mm x 95mm x 108mm
- Weight: 250g
- Temperature Range: -25°C to +70°C operating, -40°C to +85°C storage
- Compliance: RoHS, UL, CE, FCC, CB, CUL
- Cooling: Free air convection
- Isolation Voltage: 3KV AC input-to-output, 1.5KV AC input-to-ground
- MTBF: 230,000 hours at 25°C
Buy the Multicomp 30W – Reliable Power Supply for Industrial Applications
Purchase the reliable 30W AC-DC Power Supply online today and enjoy robust performance for industrial automation, process control, and transportation systems. With universal input, high efficiency, comprehensive protections, and RoHS compliance, this power supply ensures stable and safe operations. Ideal for DIN rail mounting with free air convection cooling, it features LED indicators for status, compact dimensions, and long MTBF for dependable use. Ensure secure, continuous power delivery in your industrial environment by ordering now.
Buy Multicomp 30W AC-DC power supply now and experience unmatched reliability and performance for your industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP003277?
You can click on the BUY or RFQ button to purchase MP003277 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003277?
You can download the MP003277 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP003277?
MULTICOMP PRO
