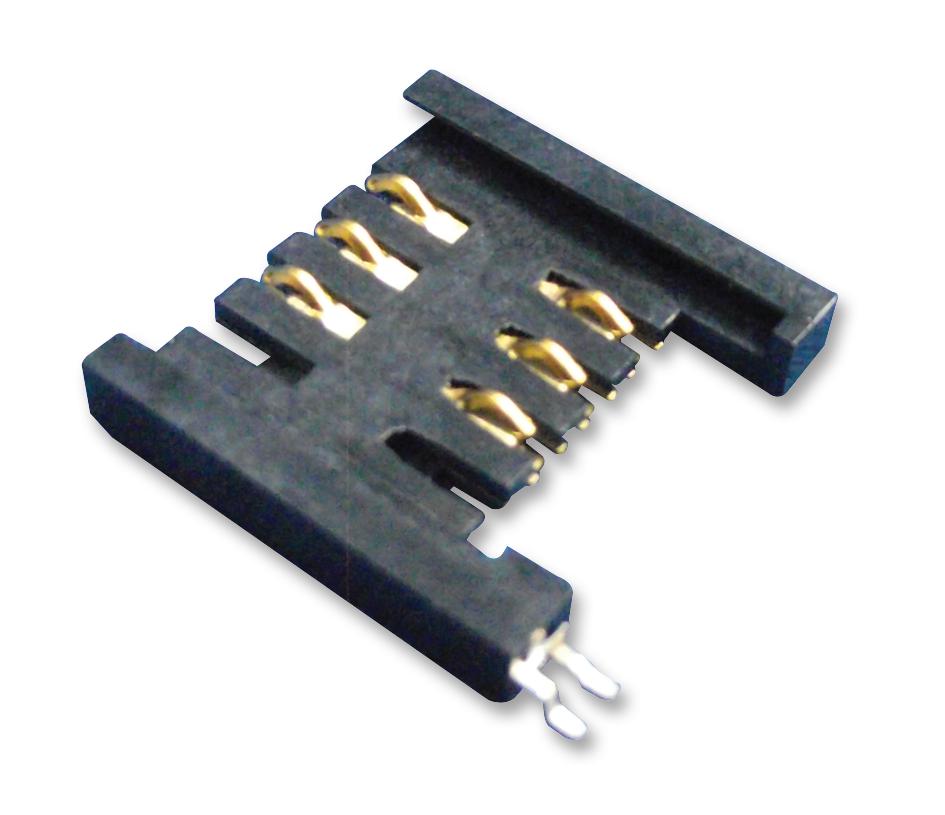

MULTICOMP PRO SIMMP00801B000G Mini SIM Connector
The SIMMP-00801B000-G is a durable 8-pin surface-mount mini SIM connector with friction contact technology. It features versatile operating positions, including shaft, up/down, and horizontal, making it suitable for various devices. The connector has gold-plated contacts, a thermoplastic insulation body, and a right-angle surface-mount termination. Designed for reliable electrical performance, it offers a typical contact resistance of 50 milliohms, with maximum resistance of 100 milliohms. Capable of at least 5,000 mating cycles, it operates from -40°C to 85°C, ensuring dependable use in broad temperature environments.
MULTICOMP PRO SIMMP00801B000G Mini SIM Connector Specifications:
- Connector Type: SIM Socket
- No. of Contacts: 18
- Pitch Spacing: 2.54mm
- Contact Plating: Gold
- Contact Termination: Surface Mount Right Angle
- Row Pitch: > 10mm
- External Depth: 2.6mm
- Dimensions: 15.7mm(L) x 16.4mm(W) x 2.6mm(H)
- Weight: Approx. 0.45g + 0.2g
- Contact Resistance: 50MQ typical, 100MQ Max
- Insulation Resistance: 1,000MQ / 500V DC
- Operating Temperature: -40°C to +85°C
- Operating Humidity: 10% to 95%RH
- Storage Temperature: -40°C to +85°C
- Soldering (Vapor phase): 215°C, 30 Sec.
- IR Reflow: 260°C, 10 Sec.
- Manual Soldering: 360°C, 3 Sec.
- Durability: 5,000 Cycles Min.
- Material: Thermoplastic insulation
Buy the Buy multicomp mini SIM connector Part Number SIMMP-00801B000-G Online
Purchase the versatile mini SIM connector online today to enhance your electronic device design. Featuring gold-plated contacts, friction technology, and a robust thermoplastic insulator, this high-performance connector supports up to 5,000 mating cycles. Its compact dimensions, operating from -40°C to 85°C, make it suitable for various environments. Easy to mount via surface mount right-angle termination, it provides excellent electrical performance with low contact resistance. Order now to ensure dependable connectivity for your mobile devices or communication systems with rapid delivery and trusted service.
Order your multicomp series SIMMP-00801B000-G mini SIM connector today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SIMMP00801B000G?
You can click on the BUY or RFQ button to purchase SIMMP00801B000G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SIMMP00801B000G?
You can download the SIMMP00801B000G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SIMMP00801B000G?
MULTICOMP PRO
