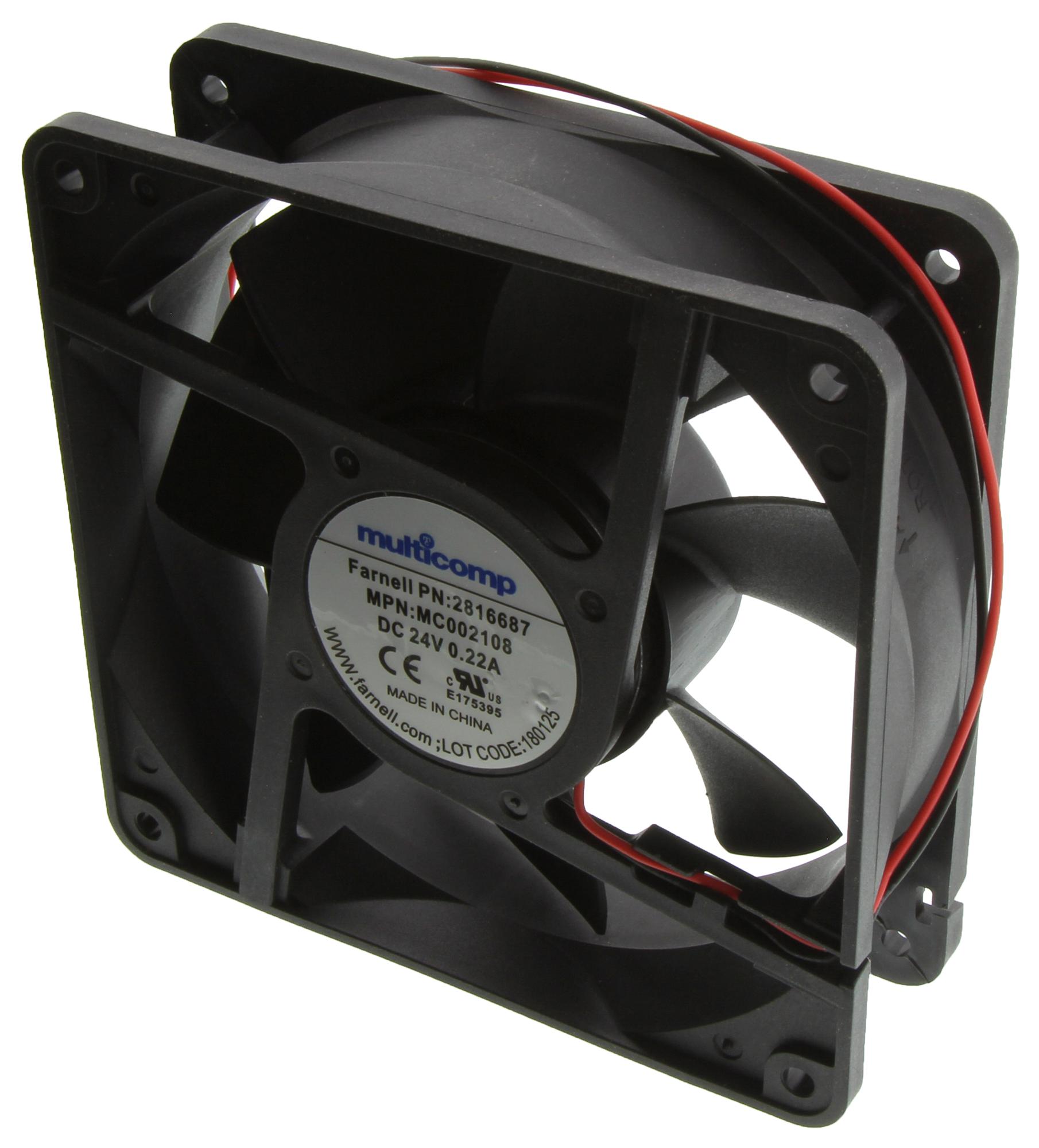

MULTICOMP PRO MC002108 Cooling Fan
The DC Brushless Cooling Fan offers reliable, quiet operation with a ball bearing structure, suitable for electronic cooling applications. It features a 24V DC rated voltage, 0.22A current, and maximum airflow of 115.42 CFM. Its compact design measures approximately 120 mm in length and 38 mm in width, with a speed of 2900 RPM. Made with UL94V-0 rated PBT housing and blades, it withstands temperatures from -10°C to +70°C during operation and -40°C to +80°C for storage. Ideal for industrial cooling and electronic device ventilation, ensuring efficient airflow and durability.
MULTICOMP PRO MC002108 Cooling Fan Specifications:
- Structure: Axial Motor Fan
- Housing Material: PBT UL94V-0
- Blade Material: PBT UL94V-0
- Bearing: Ball Bearing
- Lead Wires: UL1007 22AWG/L=300mm
- Rated Voltage: 24V DC
- Rated Current: 0.22A +0.04A
- Startup Voltage: 10V DC
- Rated Input Power: 15.28 W
- Operating Voltage Range: 21.6 to 26.4 V DC
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +80°C
- Speed: 2900 RPM
- Max Air Flow: 115.42 CFM at air pressure 0
- Max Air Pressure: 7.29 mm H2O
- Noise Level: 42.3 dBa ±2 dB at 1m
- Vibration Resistance: 5-3Hz, 0.04mm peak to peak
- Shock Resistance: 60g for 11 ms
- Lifespan: 50,000 hours at 25°C
- Dimensions: Length 120 mm ±0.5, Width 38 mm ±0.5
- Compliance: UL Listing, RoHS
Buy the Multicomp Series Cooling Fan: MC002108
Order the reliable 24V DC axial cooling fan MC002108 online today to ensure efficient cooling and durability for your electronic or industrial applications. This high-performance fan features a ball bearing design, UL94V-0 rated housing and blades, and offers maximum airflow of 115.42 CFM at 2900 RPM. With a lifespan of 50,000 hours and temperature tolerance from -10°C to +70°C, it’s an ideal choice to keep your devices cool while operating quietly and efficiently. Purchase now for seamless cooling solution integration.
Buy Multicomp Series Cooling Fan MC002108 now and experience unmatched reliability and performance in electronic cooling solutions.
