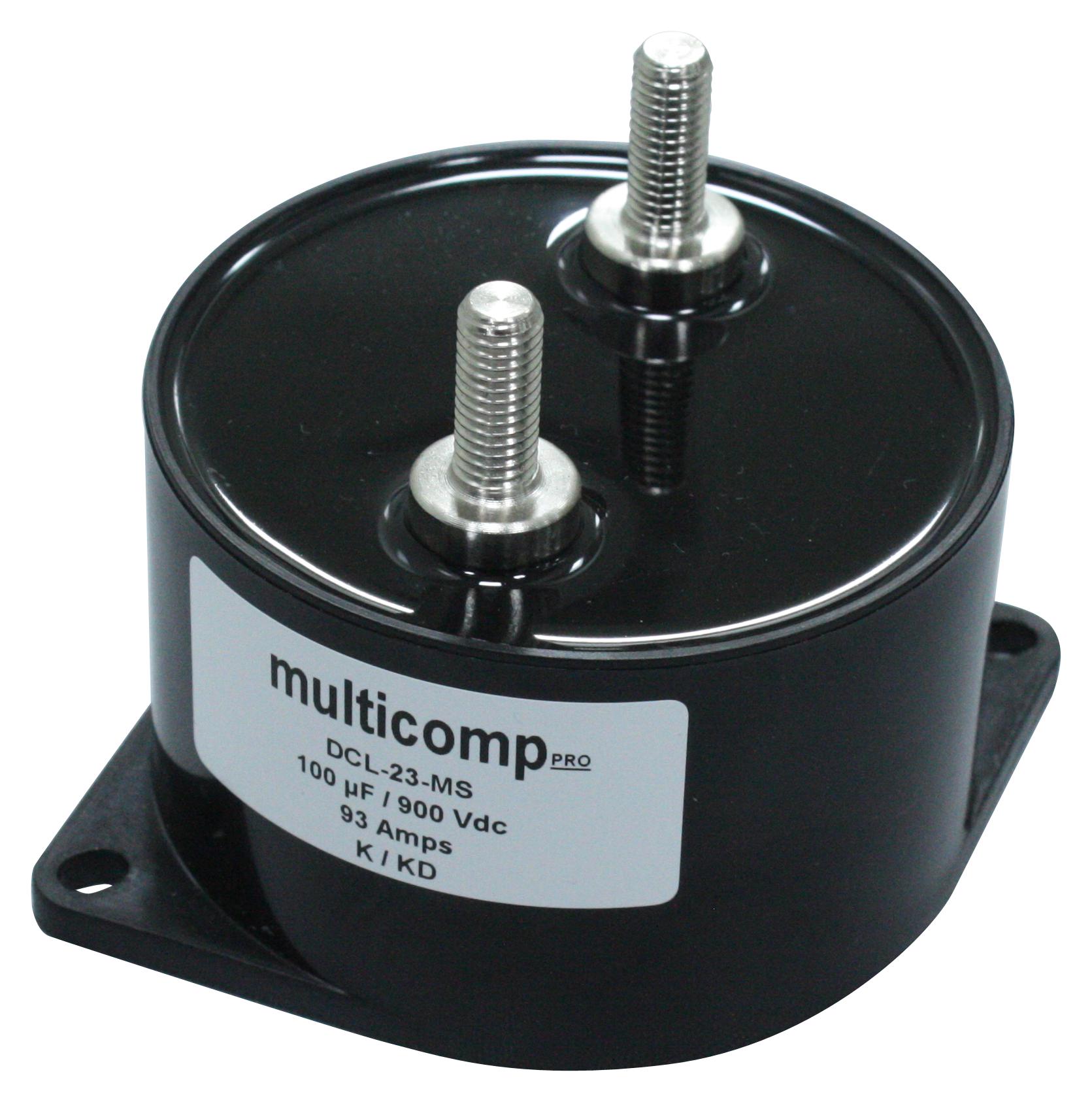

MULTICOMP-PRO MP003983 DC Link Film Capacitor
The DC Link Film Capacitors with screw and stud terminals are designed for high-voltage applications such as inverter systems, wind, solar, and electric vehicle inverters. Made with metallized polypropylene film, these capacitors feature low self-inductance, low ESR, high thermal conductivity, and a life expectancy of up to 100,000 hours. They include integrated mounting flanges and flame-retardant UL94-V0 enclosures. Suitable for DC filtering, motor drives, and induction heaters, they meet IEC standards and are RoHS compliant, ensuring reliable, efficient performance in demanding industrial environments.
MULTICOMP-PRO MP003983 DC Link Film Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL94-VO plastic case with thermosetting resin fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacitance tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800
- Test voltage: 1.3 x rated voltage V DC for 60s; terminal to case KV AC at 50Hz for 60s
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1,000 MΩ x uF at 25°C
- Standards: IEC 61071, IEC 60068
Buy the Buy Multicomp DC Link Film Capacitors Part Number MP003983 Online
Purchase the Multicomp DC Link Film Capacitor MP003983 online today to ensure high-performance, durable, and reliable power filtering for inverter systems, motor drives, and renewable energy applications. With metallized polypropylene film construction and UL94-V0 flame retardant casing, these capacitors deliver excellent thermal conductivity, low ESR, and long life expectancy. Suitable for demanding industrial environments, they meet international IEC standards and RoHS compliance. Get fast delivery and technical support to enhance your power management solutions today.
Buy Multicomp DC Link Film Capacitors MP003983 now and experience unmatched reliability and performance for inverter, motor drive, and filtering applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP003983?
You can click on the BUY or RFQ button to purchase MP003983 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003983?
You can download the MP003983 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP003983?
MULTICOMP-PRO
