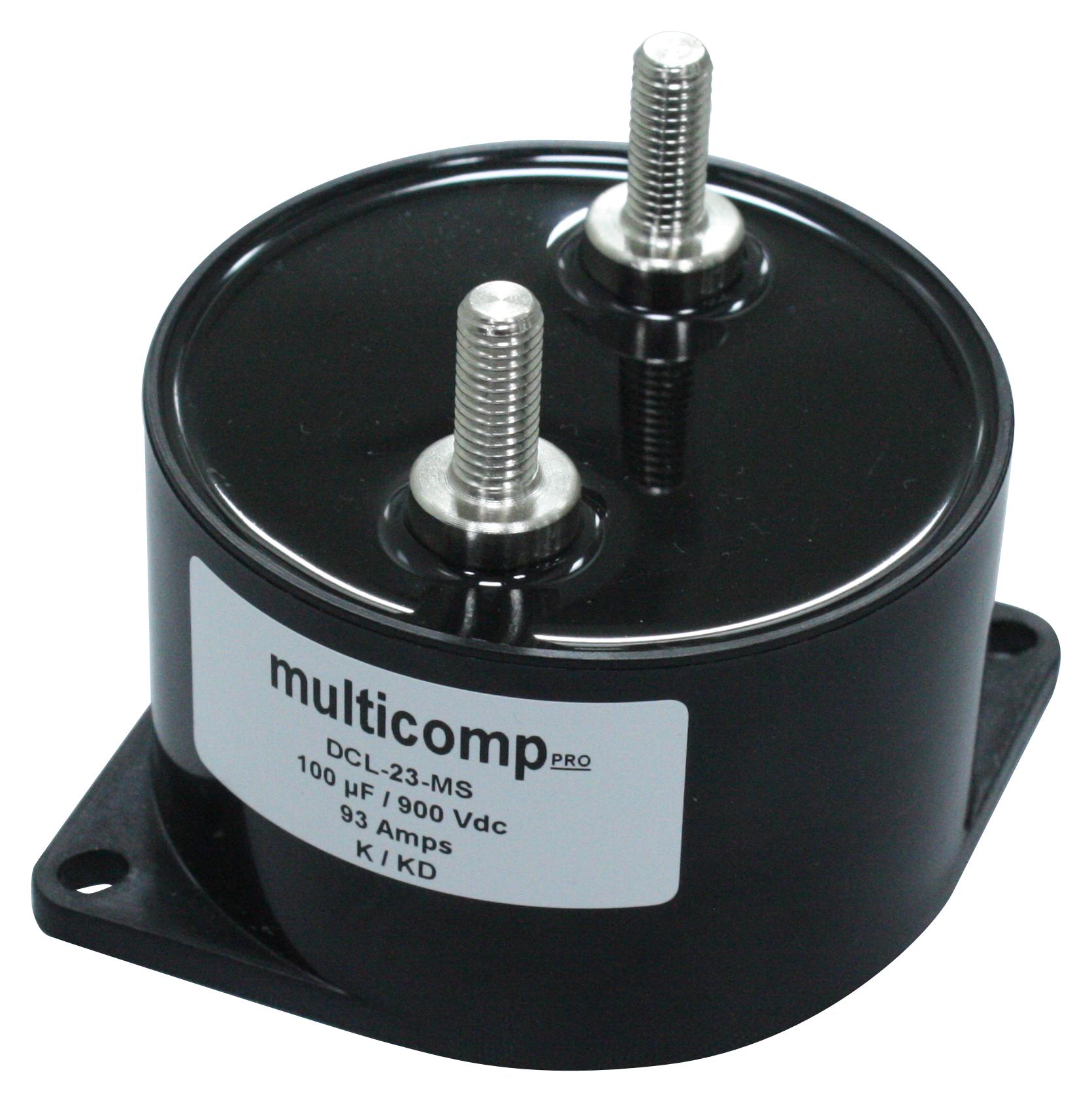

MULTICOMP-PRO MP003988 DC Link Capacitors
These high-performance DC link film capacitors feature low self-inductance as low as 11nH and ESR as slow as 0.5mΩ, making them ideal for power conversion and inverter applications. Constructed with metallized polypropylene film and equipped with integrated mounting flanges, they provide excellent thermal conductivity and a life expectancy of up to 100,000 hours. Suitable for use in DC filtering, wind and solar power inverters, electric vehicle inverters, induction heaters, and motor drives. Designed with UL94-VO flame retardant plastic cases and nickel-plated brass terminals for durability and safety.
MULTICOMP-PRO MP003988 DC Link Capacitors Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800 V
- Test voltage: 1.3× rated voltage for 60 seconds, terminal to case KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1,000 MΩ x µF at 25°C
- Marking includes: capacitor grade, capacitance in pF, rated voltage, max current, capacity tolerance, manufacturing code
Buy the Multicomp Series DC Link Capacitors: MP003988
Order the advanced Multicomp series DC link capacitors online today to benefit from low inductance and ESR, excellent thermal management, and long service life. Perfect for inverters, renewable energy, and motor drive applications, these capacitors feature rugged metallized polypropylene construction with UL94-VO flame retardant cases and nickel-plated brass terminals. Their wide capacitance, voltage ratings, and tight tolerances guarantee optimal performance and durability in your critical power systems. Purchase now to secure reliable power stabilization for demanding industrial and renewable energy applications.
Buy Multicomp MP003988 high-quality DC link film capacitors now and ensure reliable power conversion in your renewable energy, inverter, or motor drive systems.
