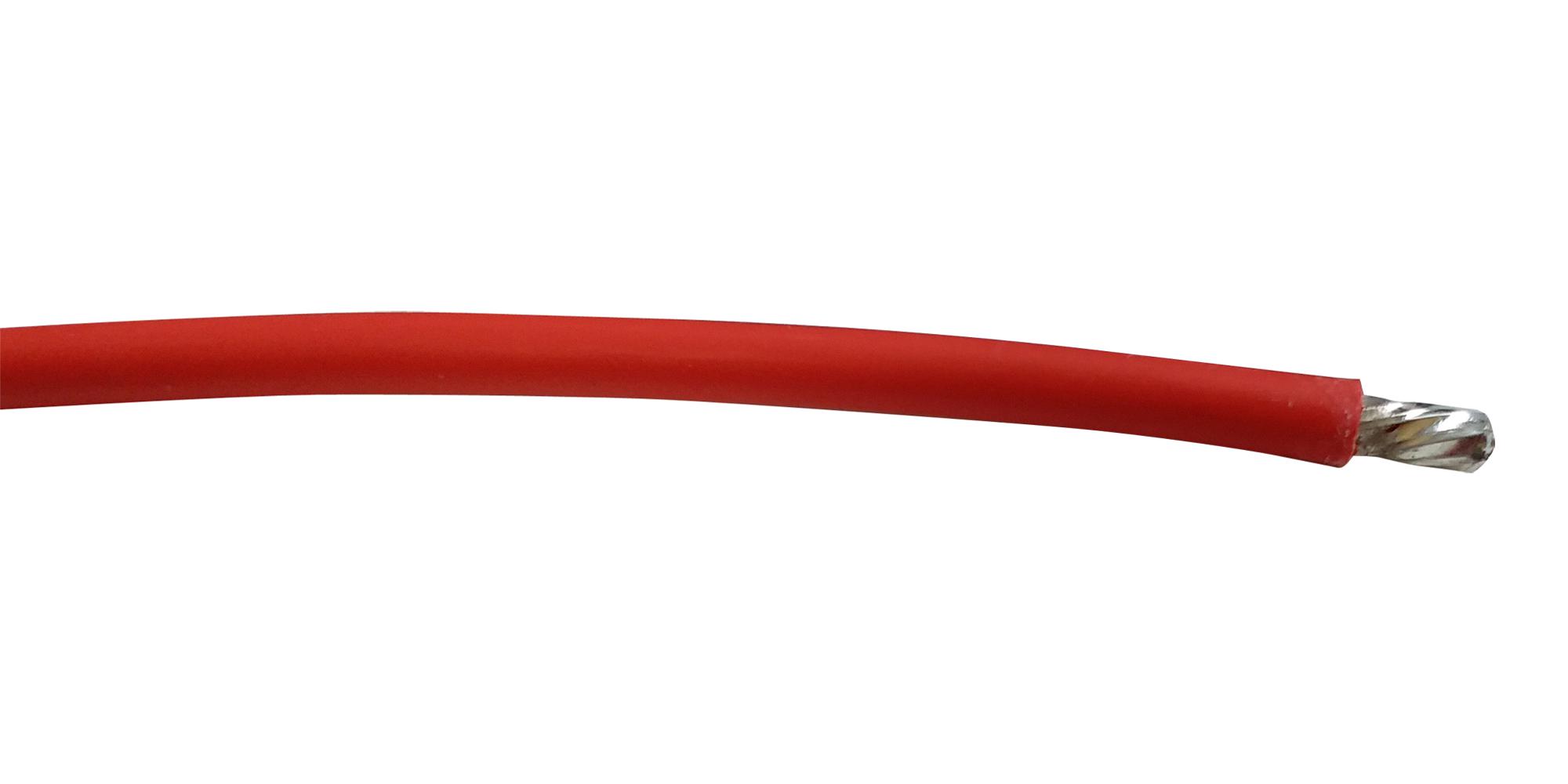

MULTICOMP-PRO PP002407 Hook-Up Wire
UL1569 style stranded hook-up wire meets UL standards with a temperature rating of 105°C and 300V voltage capacity, suitable for various electrical and electronic applications. Made from stranded tinned copper conductor insulated with durable PVC material, it offers excellent flexibility and conductivity. Available in multiple gauges including 16, 18, 20, 22, 24, 26, 28, and 30 AWG, with color-coded insulation for easy identification. The wire is supplied in reels or by meter, optimized for reliable wire connections in control panels, instrumentation, and consumer electronics. Its construction ensures high conductivity, resistance to corrosion, and compliance with RoHS standards.
MULTICOMP-PRO PP002407 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Wire Length: Available in 305m reel or per meter
- Insulation Diameter: Varies by gauge, e.g., 0.49 mm for 26 AWG
- Conductor Diameter: Ranges from 0.31 mm (30 AWG) to 1.49 mm (16 AWG)
- Strand Count: 7/0.16 mm (26 AWG), 34/0.18 mm (18 AWG), 65/0.16 mm (16 AWG)
- Resistance: From 59.4 Q/kM (22 AWG) to 381 Q/kM (30 AWG)
- Color: Multiple options including Black, Red, Blue, White, Green, Yellow, Orange, Brown, Purple, Grey
- Certifications: UL Recognized, RoHS Compliant
Buy the Buy UL1569 Stranded Hook-Up Wire Part Number PP002407 Online
Discover the durable UL1569 stranded hook-up wire designed for professional electrical and electronic applications. Constructed with stranded tinned copper conductors and insulated with high-quality PVC, this wire withstands temperatures up to 105°C and voltages up to 300V, ensuring safety and reliability. It is available in multiple gauges from 16 to 30 AWG, with a variety of color options for easy wiring and identification. Whether in reels or by the meter, this wire is ideal for control panels, instrumentation, and consumer electronics requiring flexible, corrosion-resistant wiring solutions.
Get UL1569 stranded hook-up wire from PrO-POWER today—designed for flexible, reliable electrical connections with high conductivity and corrosion resistance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002407?
You can click on the BUY or RFQ button to purchase PP002407 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002407?
You can download the PP002407 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002407?
MULTICOMP-PRO
