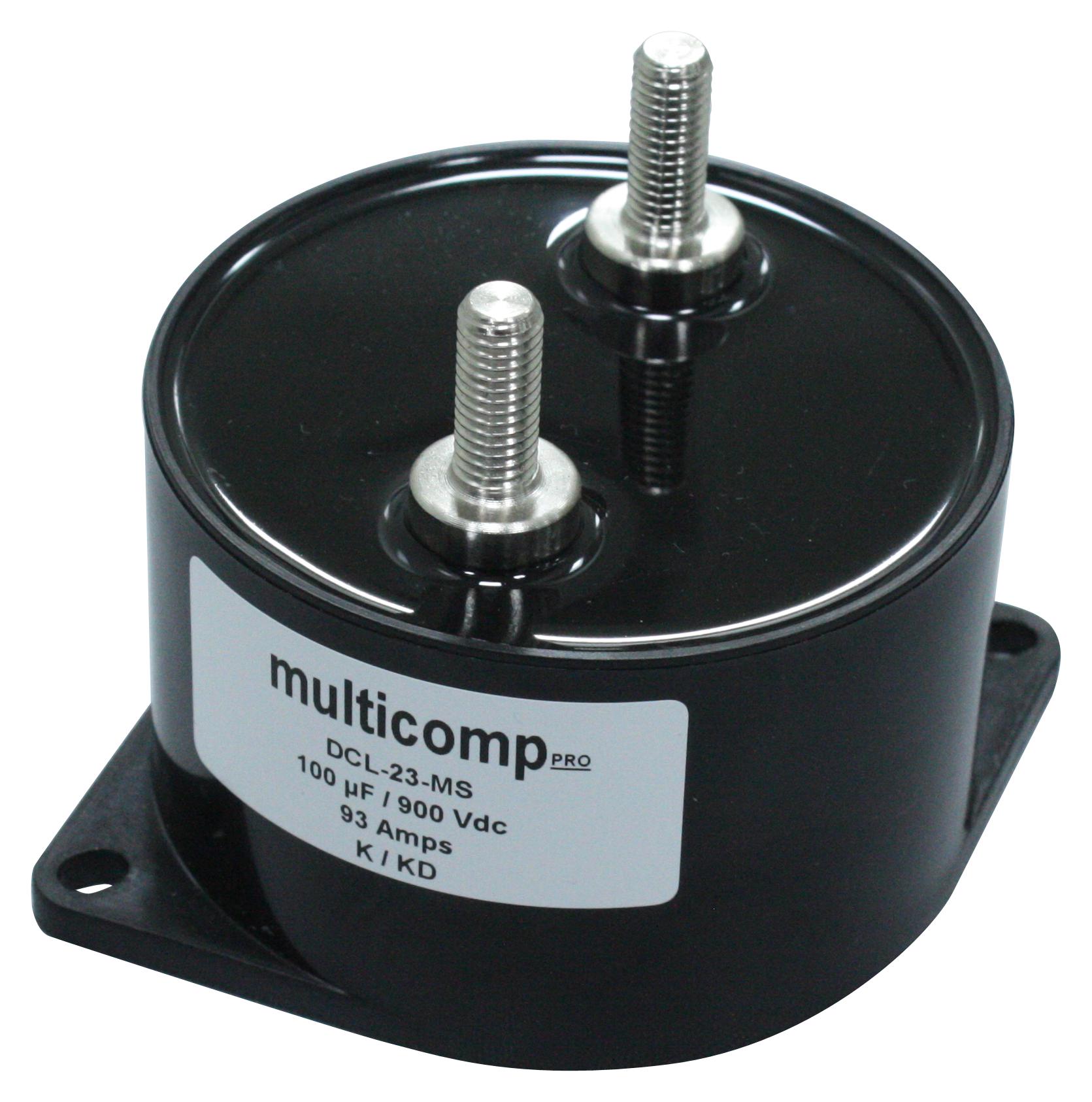

MULTICOMP PRO MP003994 DC Link Capacitor
These high-performance DC link film capacitors feature metallized polypropylene film construction, self-inductance as low as 11nH, and low ESR of 0.5mΩ, making them ideal for DC filtering, wind and solar power inverters, and motor drives. With a life expectancy of up to 100,000 hours and integrated mounting flanges, they offer high thermal conductivity and reliable UL94-V0 flame retardancy. Suitable for electric vehicle and inverter applications, these capacitors support voltages up to 1800V DC and operate efficiently across a temperature range of 0°C to +105°C.
MULTICOMP PRO MP003994 DC Link Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265μF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800V
- Test voltage between terminals: 1.3× rated voltage V DC for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: MΩ x μF at 25°C
- Markings: Grade, capacitance pF, rated voltage V DC, max current Arms, tolerance, manufacturing code
Buy the Multicomp Series DC Link Capacitors: MP003994
Purchase Multicomp DC Link Capacitors MP003994 online for high-quality, reliable power filtering solutions suitable for inverter, motor drive, and electric vehicle applications. These capacitors provide low inductance, low ESR, and operate efficiently within a wide temperature range, ensuring long-lasting performance and safety with UL94-V0 flame retardant casing. With rated voltages up to 1800V DC and a life expectancy of 100,000 hours, they are ideal for demanding industrial and renewable energy systems. Buy now and ensure your project’s reliable power management.
Get Multicomp DC Link Capacitors MP003994 today—designed for high reliability in power conversion applications.
