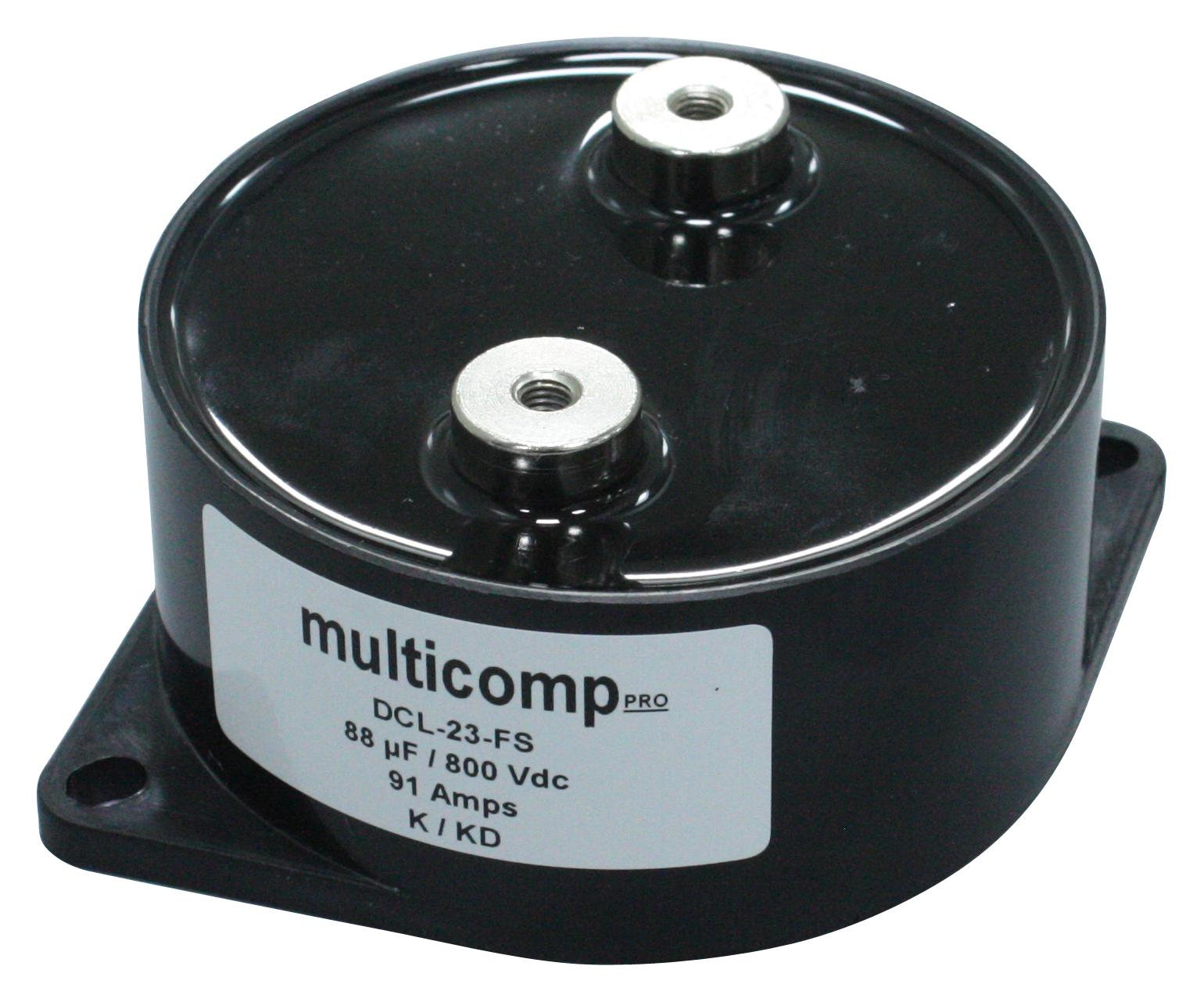

MULTICOMP PRO MP004008 DC Link Capacitor
High-performance DC link film capacitors designed for power inverters and motor drives. Featuring low ESR, self-inductance as low as 11nH, and life expectancy up to 100,000 hours. Constructed with metallized polypropylene film, these capacitors include integrated mounting flanges and are UL94-VO flame retardant. Suitable for DC filtering in wind, solar, electric vehicle inverters, and induction heating applications, they offer excellent thermal conductivity, reliability, and electrical stability across a temperature range of 0°C to +105°C. Available with screw/stud terminals, they meet IEC standards for durability and safety.
MULTICOMP PRO MP004008 DC Link Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265uF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800 V
- Test voltage between terminals: 1.3x rated voltage V DC for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: MΩ x uF, 000 S at 25°C
- Self-inductance: as low as 11nH
- ESR: as low as 0.5mΩ
- Life expectancy: up to 100,000 hours
- Features: Low profile, high thermal conductivity, integrated mounting flanges
- Compliance: UL94-V0 flame retardant, RoHS
Buy the Multicomp Series DC Link Capacitors: MP004008
Enhance your power conversion systems with this high-quality DC link capacitor. Featuring metallized polypropylene construction, low ESR, and UL94-V0 flame retardant materials, it is perfect for inverter, motor drive, and renewable energy applications. With a wide capacitance range up to 265uF, rated voltages up to 1800V DC, and temperature stability from 0°C to 105°C, this capacitor offers durability, reliability, and excellent thermal performance. Easy to install with integrated flanges, ensuring efficient heat dissipation and long operational life.
Buy Multicomp DC Link Capacitors MP004008 now and experience unmatched reliability and performance in power inverter applications.
