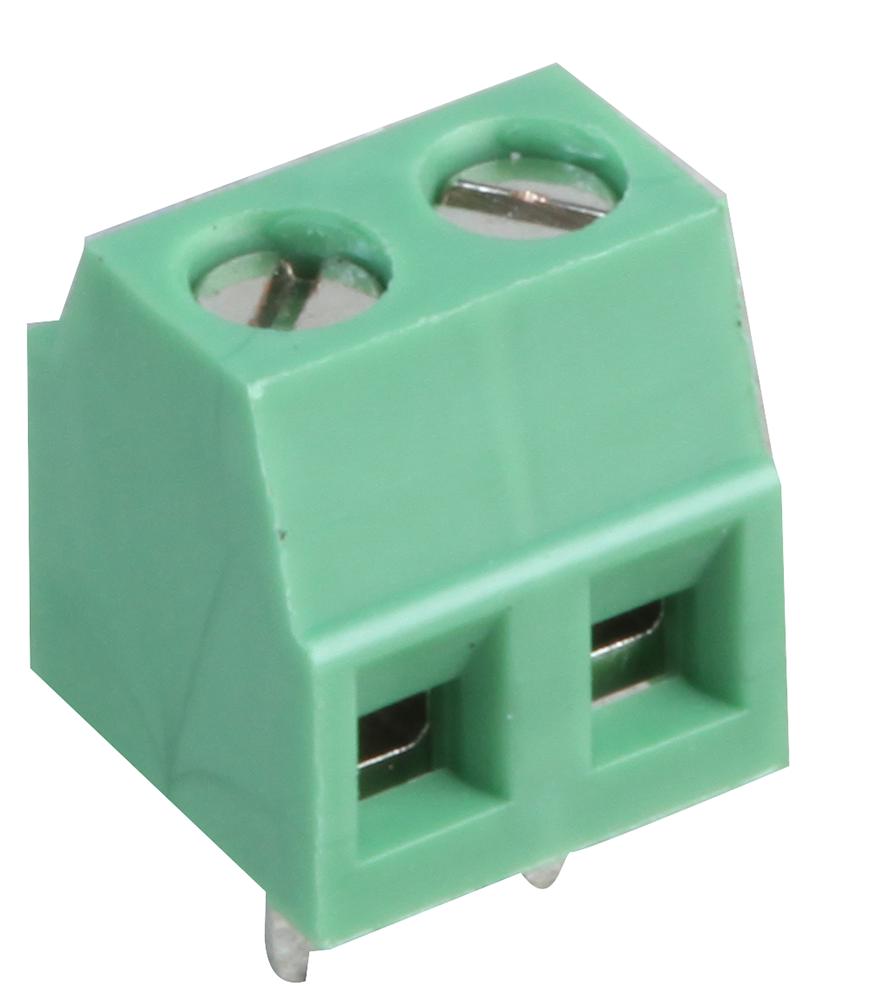

MULTICOMP PRO MC000018 PCB Terminal Block
The MC000018 is a 2-position, 3.81mm pitch PCB terminal block featuring tin-plated brass terminals and a green polyamide 66 insulating body. Designed for through-hole, right-angle mounting, it supports wire gauges up to 16AWG with a wire strip length of 4 to 5mm. The screw connection ensures secure wiring, and its insulation resistance exceeds 2000 megohms. It operates efficiently within a temperature range of -55°C to +105°C. Suitable for electronic assemblies, automation, and control systems, this terminal block provides reliable connections for various electrical projects and industrial applications.
MULTICOMP PRO MC000018 PCB Terminal Block Specifications:
- Pitch: 3.81mm (0.15 inch)
- Number of Poles: 2
- Material of Insulating Body: Polyamide 66 - Green
- Terminal Material: Brass, Tin Plated
- Screw Material: Steel, Ni Plated
- Rated Current: 10A
- Rated Voltage: 300V AC
- Min. Insulation Withstand Voltage: 2000V AC
- Insulation Resistance: > 2000MQ at 500V DC
- Operating Temperature: -55°C to +105°C
- Wire Range: 16AWG (1.3mm²), wire strip length: 4-5mm
- Screw Torque: 2 lb-inch
- Dimension (A): 7.62mm (0.3 inch)
- Mounting Style: Through-hole, right-angle
Buy the Multicomp Series PCB Terminal Block: 3.81mm Pitch 2 Pole Mco00018
Order the Multicomp Series PCB Terminal Block featuring a 3.81mm pitch and a green polyamide insulation body. Designed for secure, reliable connections, this terminal block supports wire gauges up to 16AWG with a strip length of 4-5mm. Its corrosion-resistant tin-plated brass terminals and steel screws ensure durability. Operating within a temperature range of -55°C to +105°C, it’s ideal for industrial automation, control panels, and electrical wiring. Purchase online today for high-quality, dependable performance in your electrical projects.
Buy Multicomp Series PCB Terminal Block with 3.81mm pitch and secure screw connections now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000018?
You can click on the BUY or RFQ button to purchase MC000018 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000018?
You can download the MC000018 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000018?
MULTICOMP PRO
