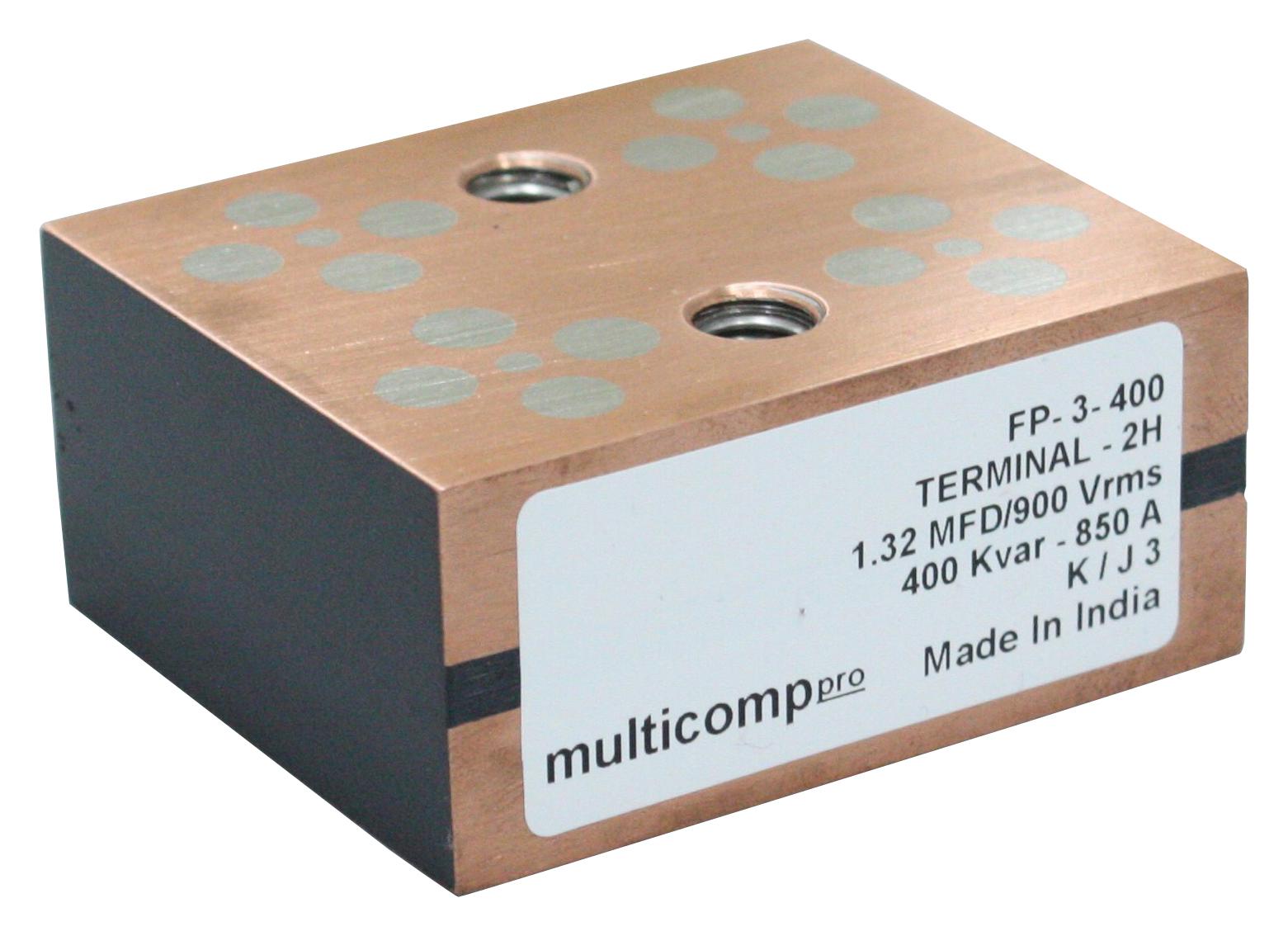

MULTICOMP PRO MP004041 Power Film Capacitor
Power film capacitors with screw and stud terminals designed for conduction cooling, featuring polypropylene dielectric, self-healing properties, and RoHS compliance. They operate at frequencies up to 1000kHz with a maximum core temperature of 85°C, offering capacitance tolerance of ±10% and flame retardant UL94-V0 standards. These capacitors are suitable for high-frequency power applications, providing reliable performance and easy installation with threaded terminals. They are available in various capacitance values and dimensions, making them ideal for industrial, power, and electronic circuit applications requiring robust and stable power filtering components.
MULTICOMP PRO MP004041 Power Film Capacitor Specifications:
- Voltage: 500 Vrms to 900 Vrms
- Capacitance: 0.33 MFD to 5 MFD
- Current: 50-600 Arms depending on model
- Power: up to 400 KVAR
- Operating frequency: Up to 1000 kHz
- Dielectric: Polypropylene
- Temperature rating: Max core temperature 85°C
- Flammability: UL 94 V-0 flame retardant
- Terminal style: Screw and stud type, with M6 x 1 and M8 x 1.25 threads
- Dimensions vary per model with typical sizes around 60 mm length and 30 mm width
- Tightening torque: Max 15 Nm
- RoHS compliant
- Self-healing dielectric properties
Buy the Multicomp Series Power Film Capacitors: MP004041
Discover high-quality power film capacitors with screw and stud terminals designed for power filtering, featuring polypropylene dielectric, RoHS compliance, and operating up to 1000kHz. These robust capacitors endure temperatures up to 85°C, with flame retardant UL94-V0 certification, ensuring safety and durability in industrial and power electronics applications. Suitable for high-current power systems, they provide exceptional stability and long-term reliability, making them ideal for demanding electronic circuits and applications requiring precise filtering and high-frequency performance. Purchase online now for fast delivery and guaranteed quality.
Order your Multicomp Series Power Film Capacitors today and give your power circuits the reliable high-frequency filtering they need.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004041?
You can click on the BUY or RFQ button to purchase MP004041 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004041?
You can download the MP004041 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004041?
MULTICOMP PRO
