MULTICOMP PRO MP000437 White LED Lamp

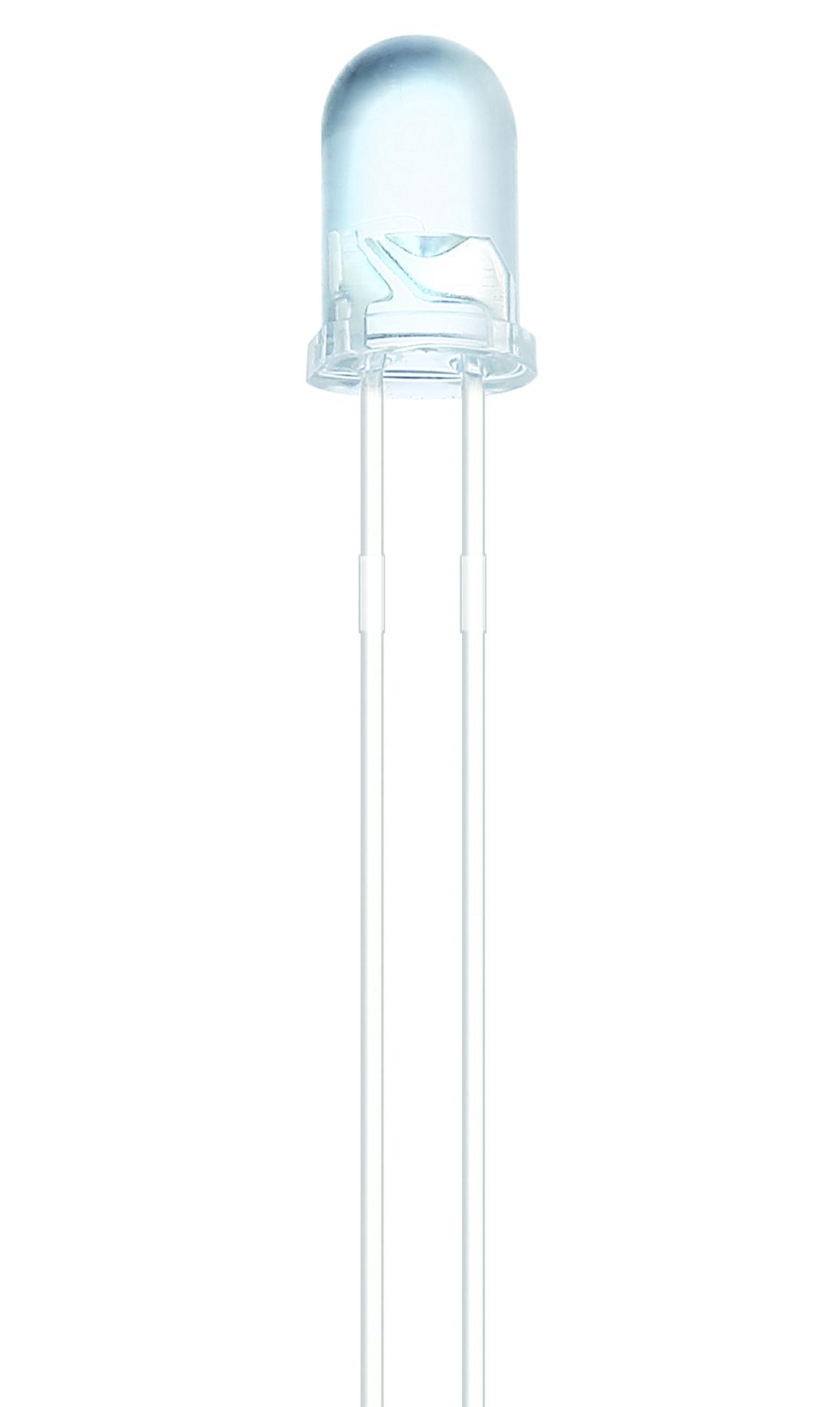

This 5mm round type LED lamp emits white light with a water-clear lens and a 16° viewing angle. Designed with InGaN dice material, it offers a luminous intensity of up to 25,000mcd at 20mA. It supports a forward voltage of 3.2 to 3.6V and a peak current of 100mA. Suitable for various applications, it features RoHS and V4 compliance, with operating temperatures from -40°C to +85°C and storage up to +100°C. The LED's electrical and optical characteristics make it reliable for industrial use.
MULTICOMP PRO MP000437 White LED Lamp Specifications:
- Dice Material: InGaN
- Emitted Colour: White
- Lens Colour: Water Clear
- Viewing Angle: 16 Deg.
- Luminous Intensity: 25000mcd at 20mA
- Forward Voltage: 3.2 - 3.6 V
- Power Dissipation: 85 mW
- Peak Forward Current: 100 mA
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5 V
- Reverse Current: 10 pA
- Electrostatics Discharge: 200 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds
- Viewing Angle: 16 Degrees
- Dimensions: 5mm (T-1 3/4) round
- RoHS and V4 compliant
Buy the Multicomp 5mm Round LED – Reliable White LED for Industrial Applications
Order the high-brightness white 5mm round LED lamp from trusted online sources and ensure your projects are equipped with reliable, energy-efficient illumination. Featuring water-clear lens and precise 16° viewing angle, it provides excellent visibility. Suitable for industrial applications, it supports RoHS and V4 compliance for safety and environmental standards. With a luminous intensity of 25,000mcd, a forward voltage of 3.2-3.6V, and a peak current of 100mA, this LED guarantees durability, performance, and ease of installation. Shop online today for quick delivery and quality assurance.
Buy Multicomp 5mm Round LED now and experience unmatched reliability and high brightness for your industrial lighting needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000437?
You can click on the BUY or RFQ button to purchase MP000437 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000437?
You can download the MP000437 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000437?
MULTICOMP PRO
