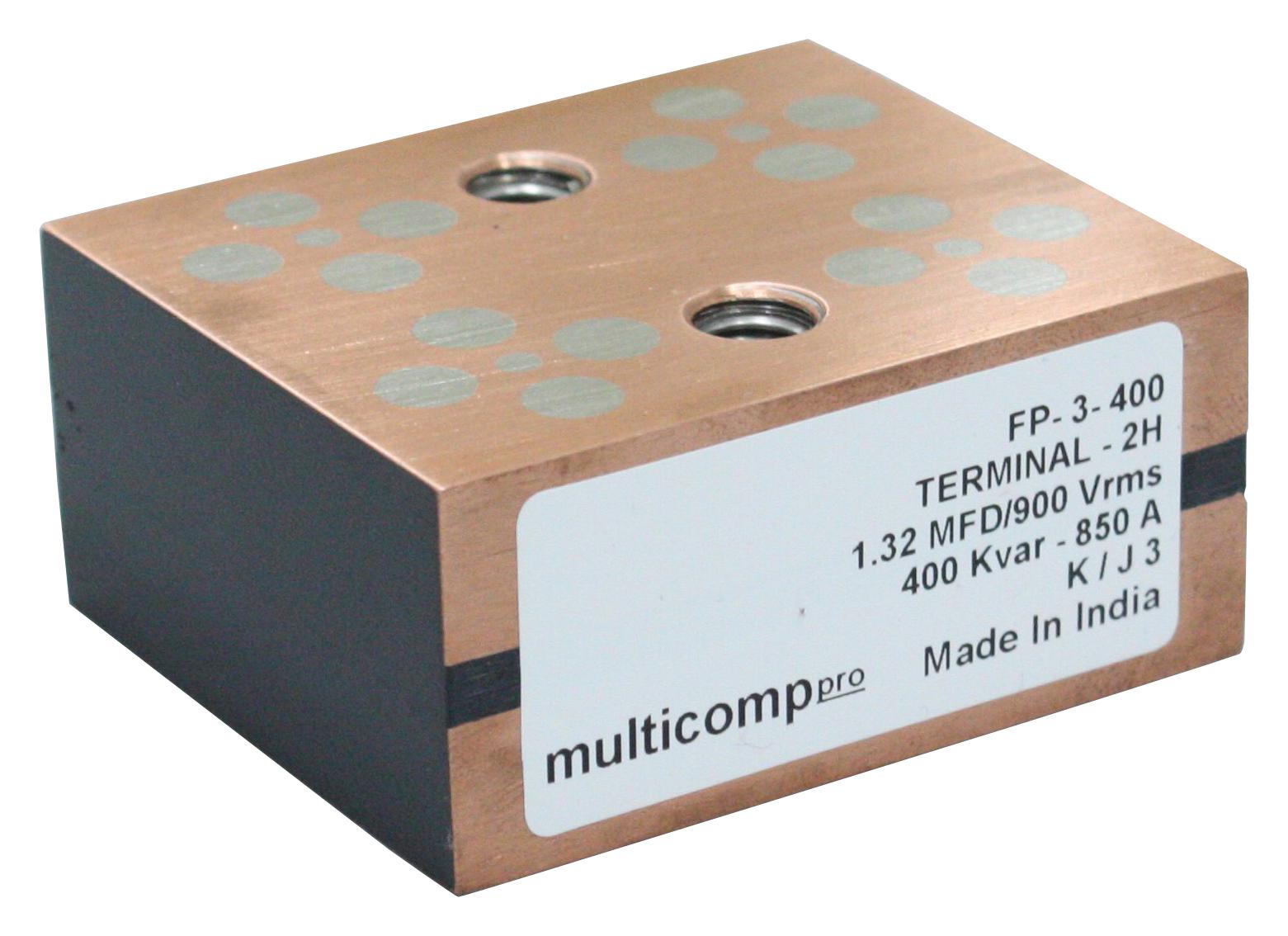

MULTICOMP PRO MP004043 Power Film Capacitors
Power film capacitors with screw/stud terminals offer reliable, conduction-cooled operation using polypropylene dielectric for high-frequency applications up to 1000kHz. These self-healing capacitors feature flame-retardant UL94-V0 material, operate at a maximum core temperature of 85°C, and provide a cap tolerance of +10%. Ideal for industrial power systems, they combine robust construction and precise electrical characteristics, making them suitable for demanding applications requiring high current and power ratings, ensuring durability, safety, and efficient performance in sophisticated electrical circuits.
MULTICOMP PRO MP004043 Power Film Capacitors Specifications:
- Voltage Rating: 500-900 VRMS depending on model
- Capacitance: 0.33-5.0 MFD
- Frequency Range: up to 1000kHz
- Maximum Operating Temperature: 85°C
- Capacitance Tolerance: +10%
- Material: Polypropylene dielectric
- Flame Retardant: UL94-V0
- Terminal Style: 4H and 2H screw/stud terminals
- Dimensions: Varies by model, typical diameter around 56-60 mm
- Tightening Torque: 15 Nm max
- Current Ratings: 550-850 ARMS depending on model
- Power: 400 KVAR at rated voltage
- Construction: Conduction cooled, self-healing
- Compliance: RoHS compliant
Buy the MultiComp Series Power Film Capacitors 500-900 VRMS: MP004043
Order Power Film Capacitors online today and benefit from high-quality, conduction-cooled design with polypropylene dielectric. These reliable capacitors are ideal for high-frequency power applications, supporting up to 1000kHz, with flame-retardant UL94-V0 material and maximum temperature of 85°C. Suitable for demanding industrial environments, they ensure efficient power management, durability, and safety. Whether for power factor correction or filtering, purchase now for fast delivery, competitive pricing, and trusted quality in your electrical projects.
Get MultiComp Power Film Capacitors today—built for reliable power delivery, high-frequency performance, and durable industrial operation.
