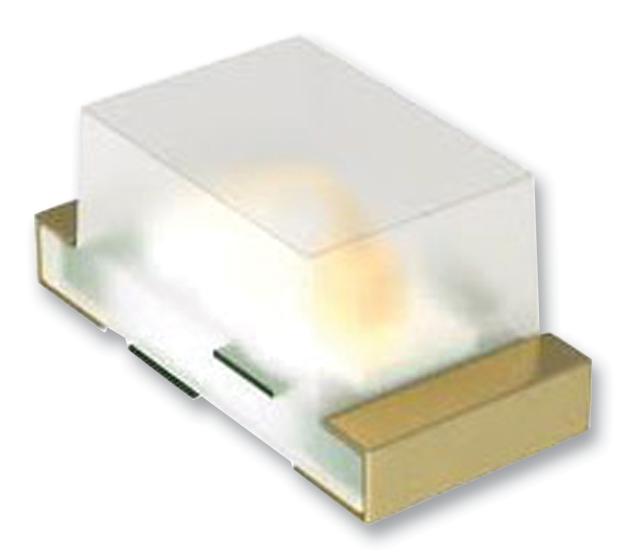

MULTICOMP PRO 7030112 Red SMD Chip LED
The 703-0112 is a red SMD chip LED with a diffused white lens, offering a luminous intensity of 15 cd, a peak wavelength of 643 nm, and a wide viewing angle of 140 degrees. Designed with AlGaAs/GaAs materials, it handles power dissipation up to 66 mW and operates across temperatures from -40°C to +80°C. Suitable for diverse lighting and indicator applications, this LED features reflow soldering compatibility, RoHS compliance, and durable construction ideal for surface-mount technology in electronic devices.
MULTICOMP PRO 7030112 Red SMD Chip LED Specifications:
- Material: AlGaAs / GaAs
- Emitting Colour: Red
- Lens Colour: Diffused White
- Luminous Intensity: 15 cd at If=20mA
- Peak Wavelength: 643 nm
- Operating Temperature Range: -40°C to +80°C
- Storage Temperature Range: -40°C to +85°C
- Power Dissipation: 66 mW
- Forward Voltage: 1.8 - 2.2 V at If=20mA
- Reverse Voltage: 4 V
- D.C. Forward Current: 30 mA
- Pulsed Forward Current: 80 mA (1/10 Duty Cycle, 0.1ms Pulse)
- Viewing Angle: 140°
- Soldering Temperature: Max 260°C for 10 sec
- Reflow Soldering: Recommended with upper/lower heater, time limited to 10 sec
- Package: EIA-481A, 8mm tape, 4000 pcs per reel
- Storage Environment: 5°C to 30°C, 60% RH max, use within 7 days after opening
Buy the Multicomp 7030112 – Reliable Red LED for Industrial Applications
Get your multicomp 7030112 red SMD chip LED online today and enjoy high-quality surface-mount lighting solutions. Perfect for indicator, status, and illumination needs, this LED offers excellent brightness with 15 cd luminous intensity, a 643 nm wavelength, and a wide 140° viewing angle. Constructed with durable AlGaAs/GaAs materials, it supports up to 66 mW power dissipation and operates across -40°C to +80°C temperatures. Easy to install with reflow soldering, it's ideal for various electronic applications seeking reliable, efficient illumination.
Order your multicomp Series7030112 red SMD chip LED today and enhance your electronic projects with reliable indicator lighting and signaling.
