MULTICOMP PRO M141T02AC0300D Microswitch Button SPDT
The microswitch with SPDT configuration features a button operation, rated for maximum contact resistance of 25 milliohms, and insulation resistance exceeding 100 megaohms at 500V DC. It withstands voltages up to 1,000V AC for one minute and operates at a frequency of 60 mechanical and 6 to 12 electrical operations per minute. Designed for reliable use in various applications, it offers a durable snap-action switch with an operating force of 200gf, quick connect and solder terminals, and compact dimensions of 9.7mm depth, 27.8mm width, and 15.8mm height, with a PBT case and a long mechanical life of 1 million cycles.
MULTICOMP PRO M141T02AC0300D Microswitch Button SPDT Specifications:
- Rating: 10A, 125/250V AC
- Maximum Contact Resistance: 25 milliohms
- Insulation Resistance: >100 megaohms at 500V DC
- Withstand Voltage: 1,000V AC for 1 minute
- Operating Frequency: 60 mechanical, 6-12 electrical operations per minute
- Ambient Temperature: -55°C to +85°C
- Ambient Humidity: 85%
- Mechanical Life: 1,000,000 cycles
- Electrical Life (at rated load): 50,000 cycles
- Contact Configuration: SPDT
- Switch Operation: Snap Action, Off-On
- Operating Force Max: 200gf (1.96N)
- Switch Terminals: Quick Connect, Solder
- External Depth: 9.7mm
- External Width: 27.8mm
- Height: 15.8mm
- Series: M141T02
- Switch Case: PBT
- Part Number: M141T02-AC0300D

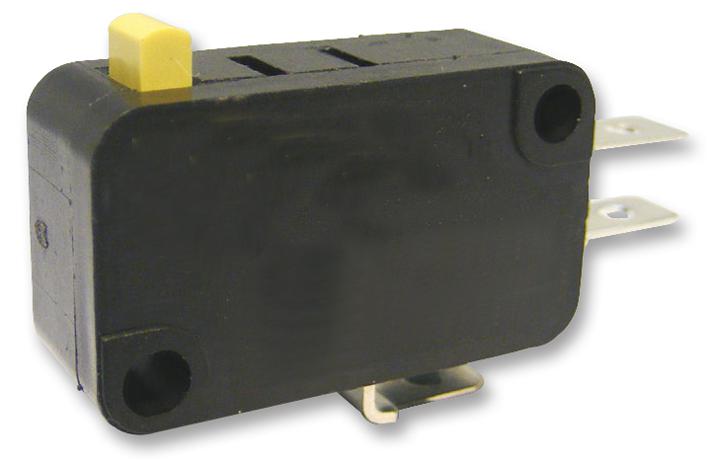

Buy the Buy Multicomp Microswitch Part Number M141T02AC0300D Online
Order the Multicomp Microswitch with SPDT button operation today for reliable switching performance. Rated for 10A at 125/250V AC, it features a snap-action mechanism with durable PBT case, quick connect terminals, and dimensions of 9.7mm depth, 27.8mm width, and 15.8mm height. Designed for up to 1 million mechanical cycles and 50,000 electrical operations at rated load, this compact switch is ideal for automation, control panels, and industrial equipment ensuring long-term, precise operation.
Get Multicomp Microswitch M141T02AC0300D today—optimized for durability, precision, and long-lasting performance in control applications.
