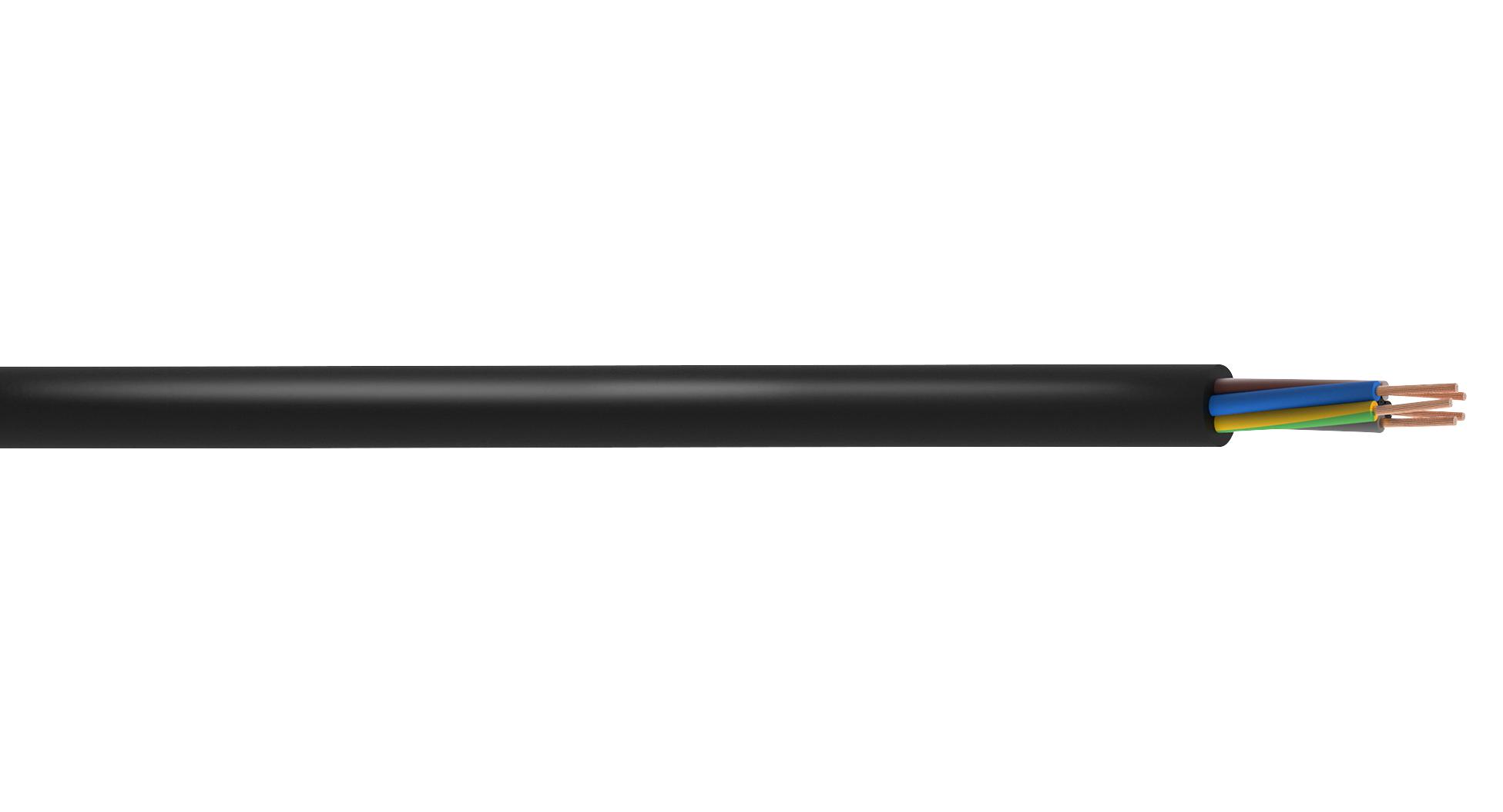

MULTICOMP-PRO PP002148 Flexible Rubber Cable
The flexible rubber cable provides high flexibility and weather, oil, grease, mechanical, and thermal stress resistance, suitable for handling equipment, power supplies, industrial sites, and water treatment environments. It features a voltage rating of 450/750V, with temperature ratings of -30°C to +60°C fixed and -15°C to +60°C flexed. Comprising flexible copper conductors and resistant Ethylene Propylene Rubber insulation with a Polychloroprene sheath, its design ensures durability in severe industrial conditions. Suitable for various core configurations with black sheath color, conforming to BS EN standards.
MULTICOMP-PRO PP002148 Flexible Rubber Cable Specifications:
- Voltage Rating (Uo/U): 450/750V
- Temperature Rating: Fixed -30°C to +60°C, Flexed -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Core Identification: 2 core: Blue, Brown; 3 core: Green/Yellow, Blue, Brown; 4 core: Green/Yellow, Brown, Black, Grey; 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Construction: Copper conductor BS EN 60228, EPR insulation BS EN 50363, PCP sheath BS EN 50363
- Conductor: Class 5 flexible copper
- Dimensions vary by core and cross-sectional area as per part number
- Standards: BS EN 50525-2-21, BS EN 60811-2-1, BS EN/IEC 60332-1-2
- Operating Temperature: Conductors rated for 60°C
- Maximum Resistance of conductors at 20°C varies with cross-sectional area, e.g., 1 mm²: 19.5 Ω/km
- Current Capacity: 1 mm²: 10A, 1.5 mm²: 16A, 2.5 mm²: 20A, 4 mm²: 26A, 6 mm²: 34A (single phase)
- Voltage Drop: 1 mm²: 46 mV/A/m, 1.5 mm²: 32 mV/A/m, 25 mm²: 19 mV/A/m
- De-Rating Factors: Temperature adjustments at 35°C, 40°C, 45°C, etc.
- Cable Lengths: 50m or per metre, 100m or per metre based on part number
Buy the ACME HO7RN-F – Reliable Flexible Rubber Cable for Industrial Applications
Buy the high-quality flexible rubber cable online to power industrial equipment reliably. Engineered for weather resistance, high flexibility, and durability, this cable fits a range of industrial applications. Featuring BS EN standards, it offers excellent insulation with Ethylene Propylene Rubber and Polychloroprene sheath. Perfect for handling equipment, water treatment, and severe environments, it ensures safety, flexibility, and longevity. Purchase now and leverage fast delivery, competitive prices, and trusted quality for your toughest projects.
Order your ACME SeriesPP002148 flexible rubber cable today and ensure durable, weather-resistant power connection in demanding industrial environments.
