MULTICOMP PRO MP004209 Snubber Capacitor
These high-performance snubber capacitors are axial leaded devices featuring low-loss polypropylene dielectric, high frequency and voltage capabilities, and high peak current handling. Suitable for high voltage, high current, and pulse applications such as snubber circuits, speed control, and switch-mode power supplies, they comply with IEC 61071 standards and UL 94V-0 flame retardancy. Constructed with extended double metallized polyester electrodes and metallized polypropylene film, they deliver reliable insulation resistance and low dissipation factor across a wide temperature range, ensuring durability in demanding electrical environments.
MULTICOMP PRO MP004209 Snubber Capacitor Specifications:
- Dielectric Material: Polypropylene film
- Electrode Material: Double metallized polyester and metallised polypropylene film
- Winding Construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UI94-VO tape wrap with thermosetting resin end fill
- Capacitance Range: 0.0151-51 μF
- Tolerance: ±5% (J), ±10% (K)
- Rated Voltage DC: 600, 850, 1000, 1200, 1600, 2000, 2500, 3000 V
- Rated Voltage AC: 275, 450, 500, 500, 630, 630, 700, 750 V
- Test Voltage (terminals): 2× rated V DC for 10s
- Test Voltage (terminal to case): 2.3 kV AC
- Dissipation Factor: < 0.0005 at 1 kHz and +25°C
- Insulation Resistance: > 100,000 MΩ at 100 V DC after 2 min
- Temperature Range: -55°C to +105°C
- Peak Current: Up to 750 Amps depending on capacitance and voltage
- Dimensions: Varies with capacitance; typically around 17-46 mm length and 7-19 mm diameter
- Compliance: RoHS, IEC 61071
- Construction Type: Axial lead, case is polypropylene
- Maximum ESR: Typical ESR +30%

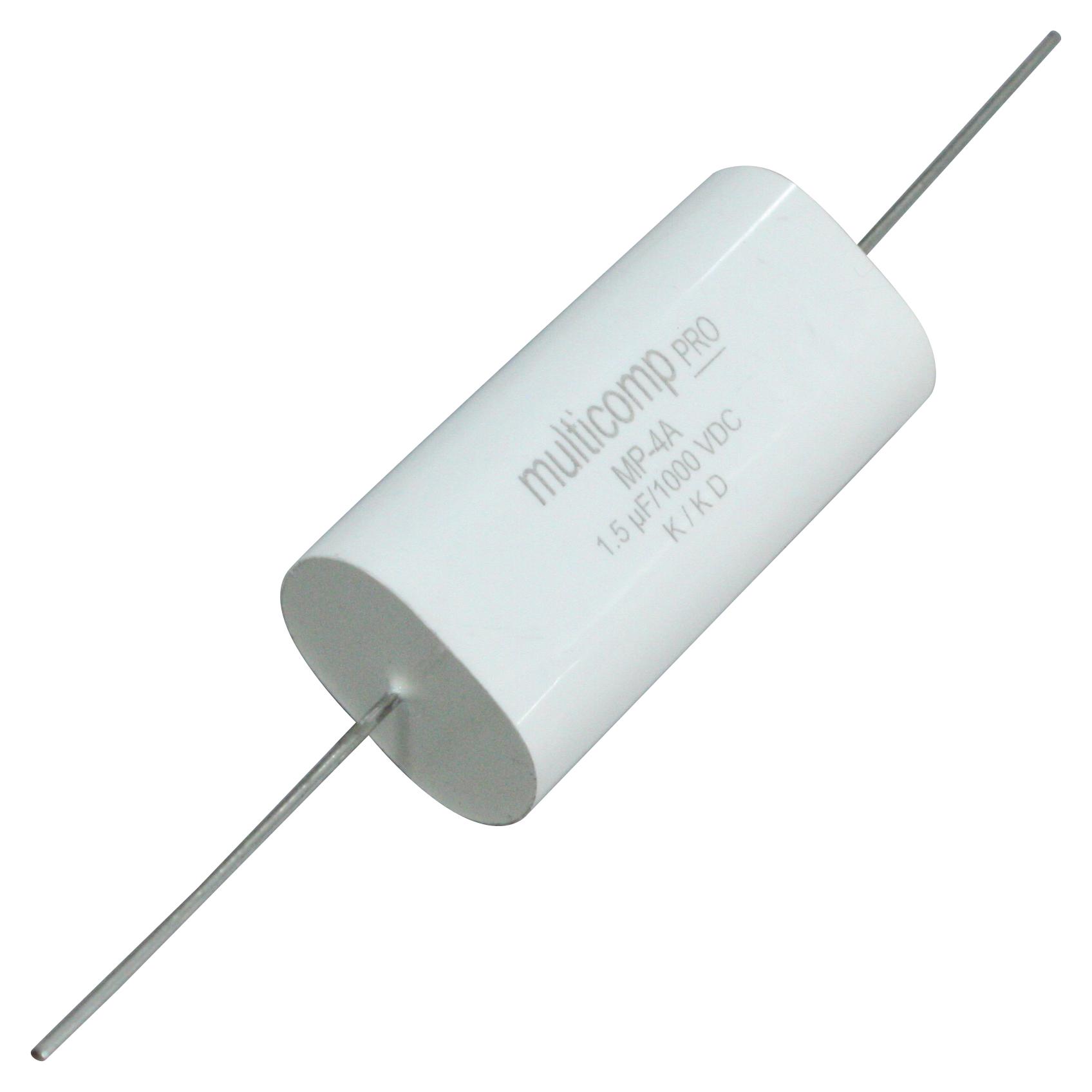

Buy the Buy Multicomp Axial Leaded Snubber Capacitors Part Number MP004209 Online
Experience the superior quality of Multicomp axial lead snubber capacitors designed for high voltage and high current pulse applications such as snubber circuits, speed control, and switch-mode power supplies. These capacitors feature polypropylene dielectric, extended metallized polyester electrodes, and meet IEC 61071 standards with UL94V-0 flame retardancy. Their robust construction ensures excellent insulation resistance, low dissipation factor, and reliable operation across wide temperature ranges, making them ideal for demanding electrical environments where durability and performance are essential.
Buy Multicomp MP004209 axial lead snubber capacitor now and ensure high voltage, high current pulse handling with reliable insulation and low ESR.
