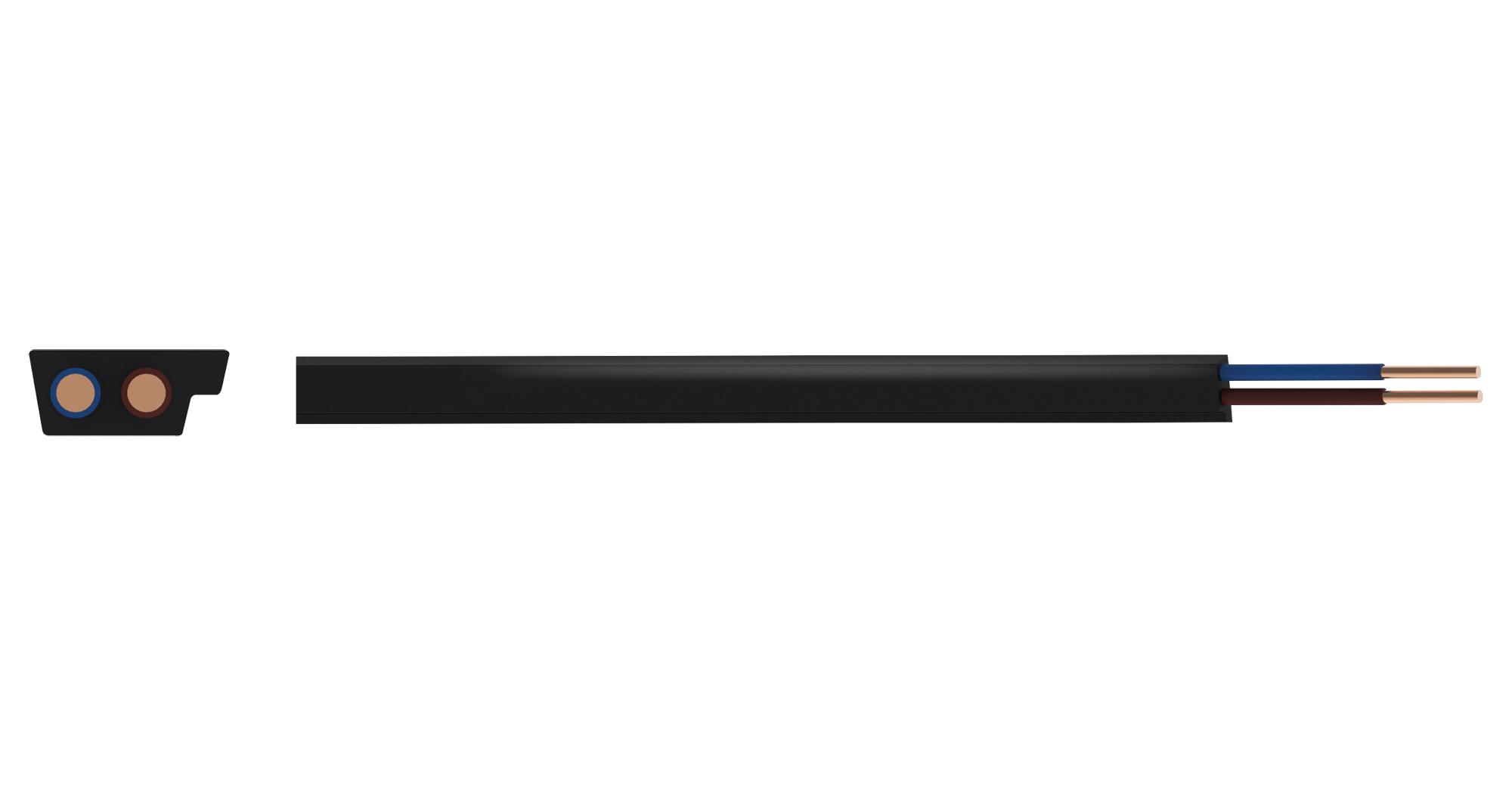

MULTICOMP PRO PP001550 industrial control cable
This flexible AS-I bus multicore cable is designed for simultaneous data and energy transmission in signalling circuits, production facilities, and machine tools. Sheathed with flame retardant, Low Smoke Zero Halogen material, it meets regulatory standards including RoHS and Low Voltage Directive. Constructed with class 6 stranded tinned copper conductors, TPE insulation, and sheath, the cable supports a voltage rating of 300V, test voltage of 2kV, and operating temperatures from -40°C to +105°C. It features a minimum bending radius of 12x diameter fixed and 24x flexed, ensuring durability and flexibility in industrial environments.
MULTICOMP PRO PP001550 industrial control cable Specifications:
- Voltage Rating: 300V
- Test Voltage: 2kV
- Temperature Rating: Fixed: -40°C to +105°C, Flexed: -30°C to +105°C
- Minimum Bending Radius: Fixed: 12 x overall diameter, Flexed: 24 x overall diameter
- Construction: Conductor - Class 6 stranded tinned copper wires; Insulation - TPE; Sheath - TPE
- Cable Standards: DIN EN 60228, VDE 0295, IEC 60228, IEC 60811-2-1, IEC 60707
- RoHS & Low Voltage Directive compliant
- Core Colors: Blue and Brown, Sheath Color: Yellow and Black
- Nominal Cross Sectional Area: 1.5 mm²
- Overall Diameter: 25 mm
- Electrical Characteristics at 20°C: Capacitance - 35 to 45 pF/m, Inductance - 520 to 700 nH/m, Impedance at 167kHz - 70 to 140 Ω
- Part Number: PP001550
- Length: 100 meters
Buy the Buy Multicomp Flexible AS-I BUS Multicore Cable Part Number PP001550 Online
Enhance your industrial setup with the durable and flexible Multicomp Multicore AS-I BUS cable. Designed for easy installation, it features flame-retardant sheathing, reliable tinned copper conductors, and support for high voltage and temperature ranges. Ideal for signalling, energy transmission, and machine tools, this cable guarantees safety, compliance with RoHS, and long-lasting performance. Purchase online now and equip your facility with top-quality wiring solutions that deliver consistent, dependable connectivity for demanding industrial environments.
Order your Multicomp SeriesPP001550 flexible AS-I BUS multicore cable today and ensure reliable, durable data and energy transmission for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001550?
You can click on the BUY or RFQ button to purchase PP001550 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001550?
You can download the PP001550 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001550?
MULTICOMP PRO
