MULTICOMP PRO MP004213 Snubber Capacitor
High-performance snubber capacitor designed for high voltage and high current pulse applications such as snubber circuits, speed control, and switched-mode power supplies. Features low loss polypropylene dielectric, high peak current capacity, and high DV/DT capability. Constructed with double metallised polyester electrodes and metallised polypropylene dielectric, these capacitors comply with IEC 61071 standards and UL94-VO flame retardant requirements. Suitable for medium to high pulse environments, these axial leaded capacitors provide reliable insulation resistance and excellent frequency response, ensuring durability and safety in power electronic systems.
MULTICOMP PRO MP004213 Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallised polypropylene film
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric internal series connection
- Terminals: Tinned copper
- Enclosure: Tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51 μF
- Capacity tolerance: ±5%(J), ±10%(K)
- Rated voltage V DC: 600, 850, 1000, 1200, 1600, 2000, 2500, 3000
- Rated voltage V AC: 275, 450, 500, 630, 700, 750, 850, 950, 1050, 1200 V
- Test voltage: 2× rated V DC for 10 seconds; 2.3 kV AC; terminal to case test voltage
- Dissipation factor: < 0.0005 at 1 kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100 V DC after 2 minutes
- Temperature range: -55°C to +105°C, full rated voltage up to +85°C, half voltage at +105°C
- Peak current capacity varies with capacitance and voltage, typical ESR values depend on model

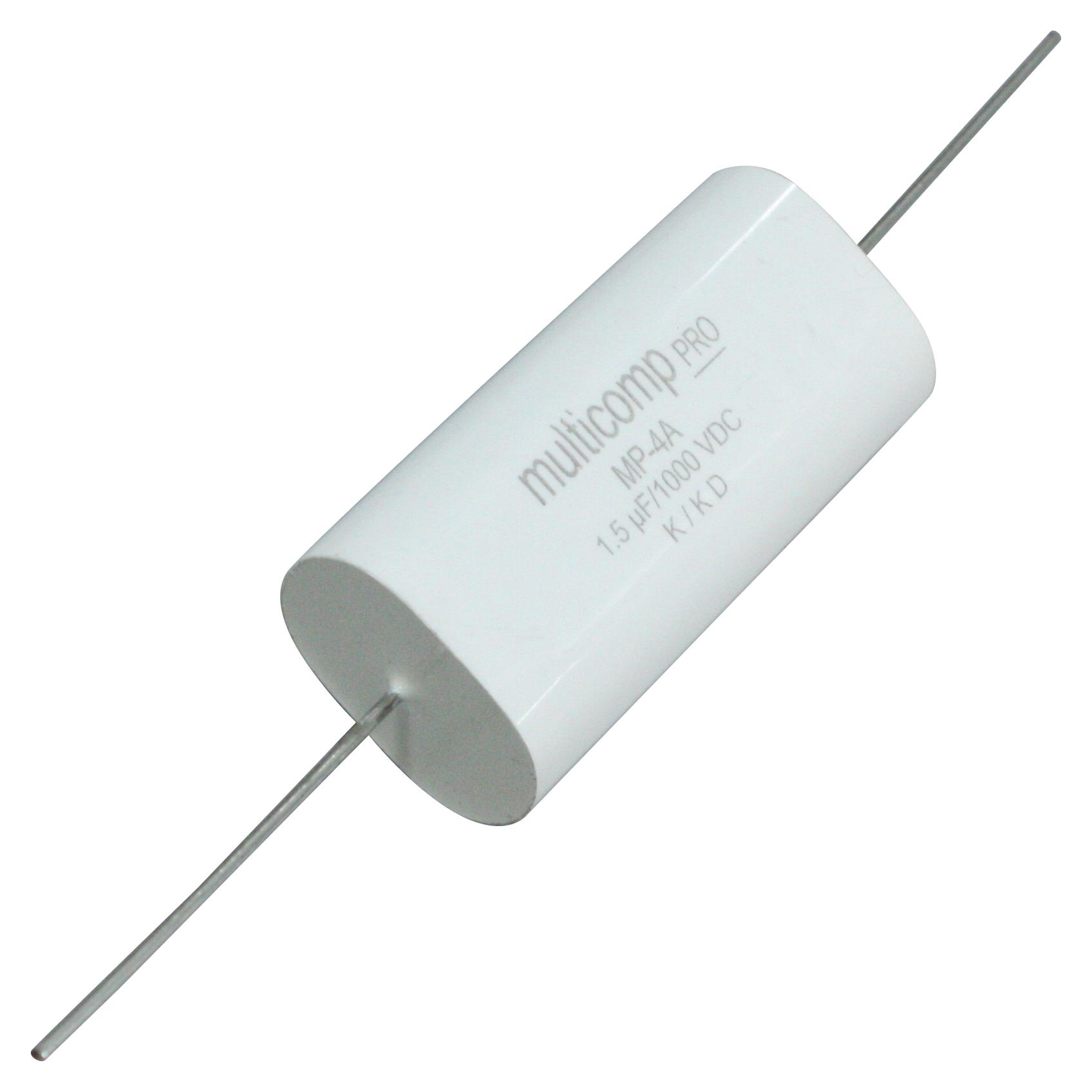

Buy the Buy Multicomp Precision Snubber Capacitors Part Number MP004213 Online
Experience the performance of Multicomp snubber capacitors designed for high voltage, high current applications like snubber circuits, SMPS, and motor speed control. Manufactured with polypropylene dielectric for low loss and high frequency capability, they offer excellent insulation resistance, high peak current capacity, and UL94-VO flame retardant safety. Available in axial leaded form, these capacitors are suitable for medium to high pulse power environments, ensuring durability, safety, and optimal performance in your electronic systems. Buy online now for fast delivery and quality assurance.
Get Multicomp MP004213 today—built for high pulse durability and reliable power performance.
