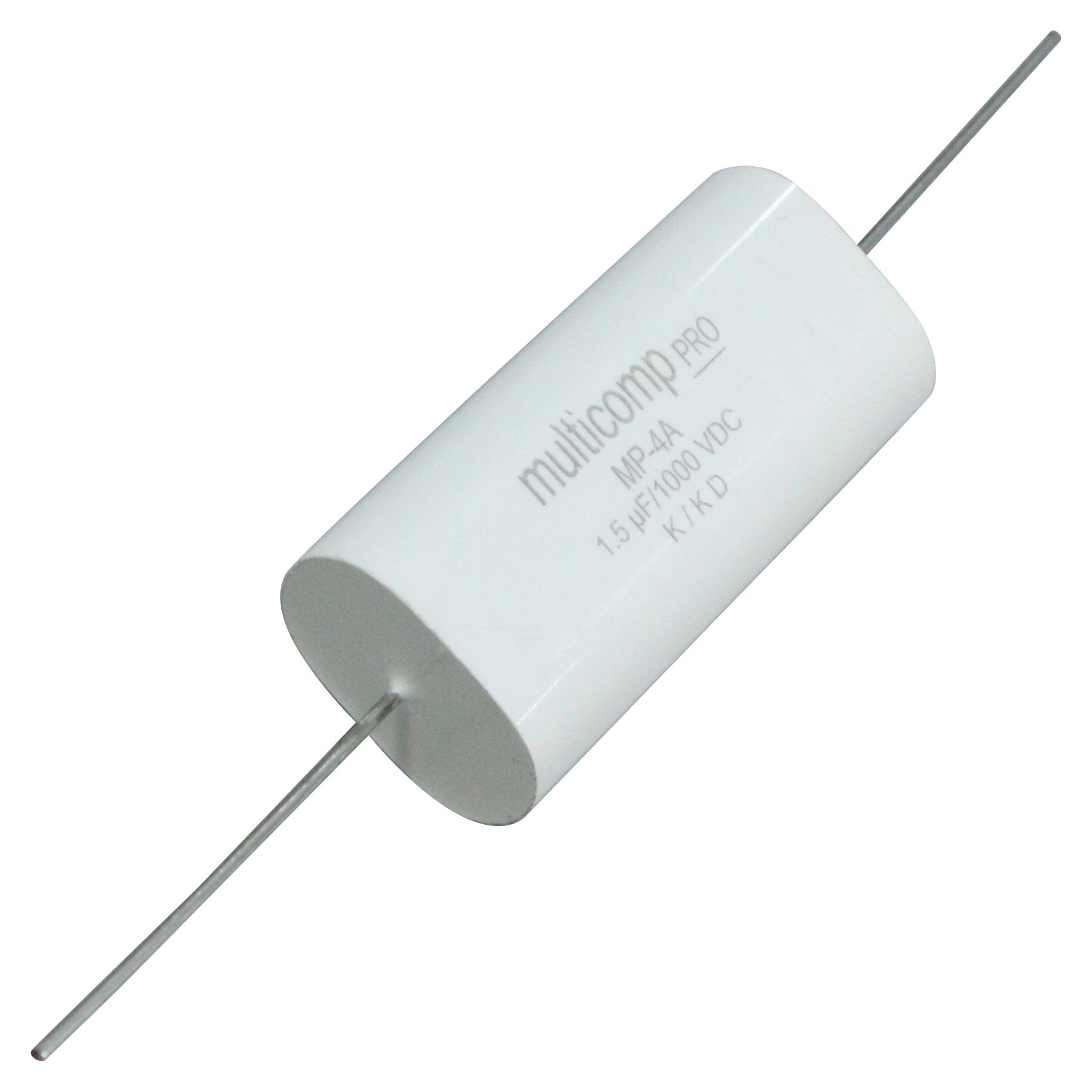

MULTICOMP-PRO MP004227 High Voltage Snubber Capacitor
These axial leaded snubber capacitors feature low-loss polypropylene dielectric, high frequency and voltage capabilities, and high peak current for use in high voltage, high current, and medium to high pulse applications such as snubber circuits, speed control, and switching power supplies. Constructed with extended double metallised polyester electrodes and metallised polypropylene film, they conform to IEC 61071 standards, are flame retardant UL94-V0, and RoHS compliant. Suitable for demanding industrial environments requiring reliable performance and durability.
MULTICOMP-PRO MP004227 High Voltage Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallised polypropylene film
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UL94-V0 Flame retardant polypropylene tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51µF
- Capacity tolerance: ±5%(J), ±10%(K)
- Rated voltage DC: 600, 850, 1000, 1200, 1600, 2000, 2500, 3000 V
- Rated voltage AC: 275, 450, 500, 630, 700, 750 V
- Test voltage: 2x rated V DC for 10 secs; 2-3 kV AC test voltage
- Dissipation factor: < 0.0005 at 1 kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100 V DC after 2 min
- Temperature range: -55°C to +105°C, full rated voltage up to +85°C
- Peak current and ESR vary with capacitance and voltage specifications
Buy the Multicomp Snubber Capacitors – Reliable High Voltage Capacitors for Industrial Applications
Enhance your power management systems with our high voltage axial snubber capacitors, designed for demanding industrial applications. Featuring polypropylene dielectric for low loss and high peak current capability, these capacitors are ideal for snubber circuits, speed control, and SMPS. Constructed with flame-retardant materials and conforming to IEC 61071 standards, they offer excellent insulation resistance and stability across a wide temperature range. Purchase online today and ensure your projects benefit from reliable, high-performance components with fast, secure delivery.
Order your Multicomp Series MP004227 axial leaded snubber capacitor today and ensure your power circuits operate with dependable quality and high performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004227?
You can click on the BUY or RFQ button to purchase MP004227 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004227?
You can download the MP004227 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004227?
MULTICOMP-PRO
