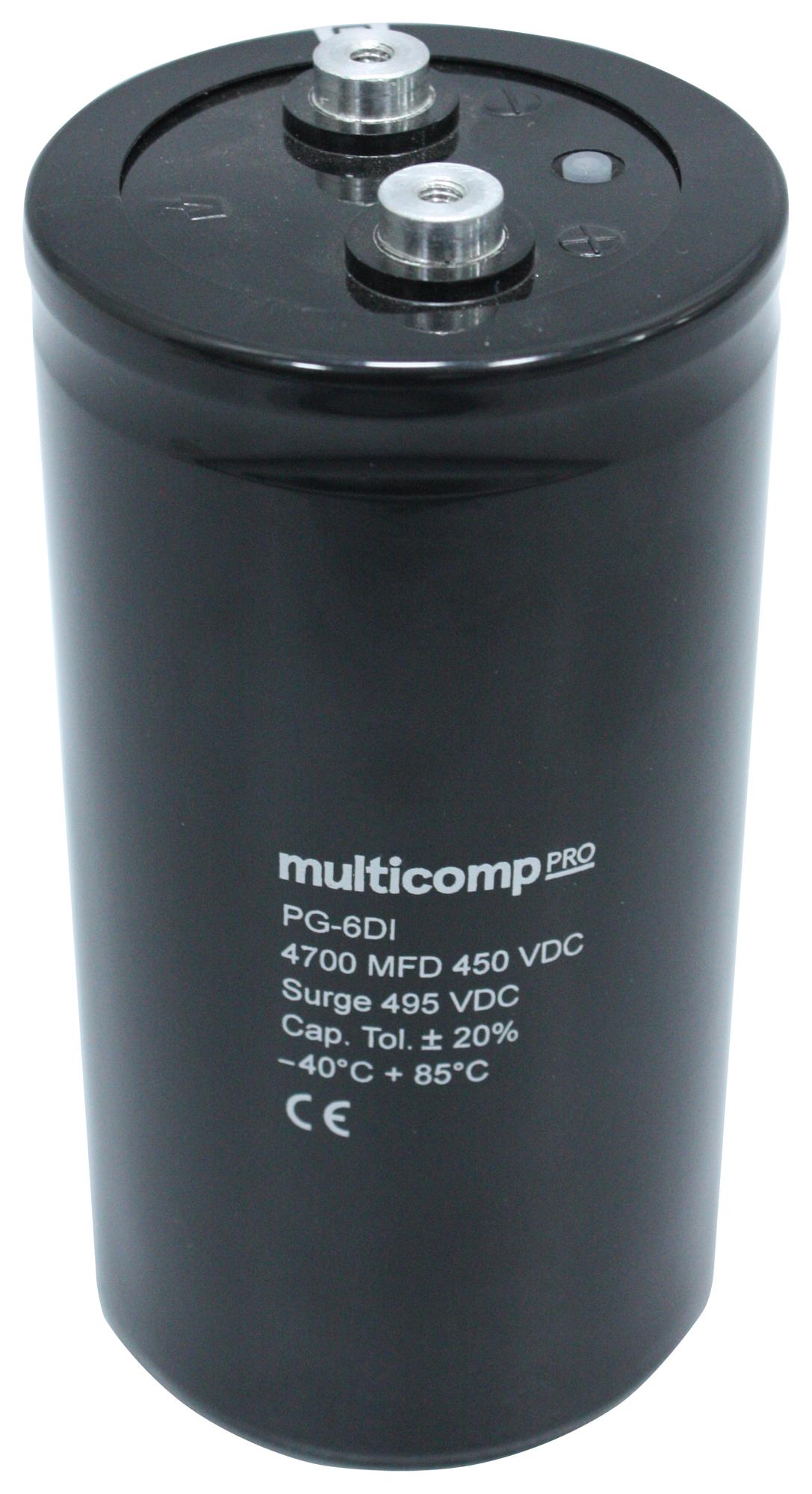

MULTICOMP-PRO MP004262 Electrolytic Capacitor
The multicomp electrolytic capacitors with screw terminals are designed for use in power filtering and energy storage applications. Featuring a voltage range from 50 V DC to 550 V DC and capacitance values between 330uF to 470,000uF, they support operating temperatures from -40°C to +85°C. Available in various sizes and mounting styles, these capacitors have options for round or flat terminal styles, with screw or stud mounting. They are RoHS compliant, with specified ripple current capacity at different temperatures and frequencies, making them suitable for demanding electrical applications.
MULTICOMP-PRO MP004262 Electrolytic Capacitor Specifications:
- Voltage range: 50 V DC to 550 V DC
- Capacitance: 330uF to 470,000uF, Tolerance +20%
- Operating Temperature: -40°C to +85°C
- Can sizes: 35 x 62mm to 90 x 240mm
- Leakage current: Ir = 0.003 CV (microamps)
- Ripple Current: withstands rms ripple at 100Hz at 85°C, with temperature and frequency multipliers
- RoHS compliant
- Can is insulated with PVC sleeve and polypropylene end-disc
- Max ripple current varies with diameter, e.g., 20A for 35mm and 50mm, 40A for 63mm, 76mm, 90mm
- Terminal styles: round or across flat, available in screw or stud mounting styles
- Useful life: approximately 12000 hours at maximum rated conditions
- Manufacturing date code: 4-digit code indicating production date
- Dimensions and mounting details are specified for various sizes and terminal styles
Buy the Buy Multicomp Electrolytic Capacitors Part Number MP004262 Online
Purchase the precise Multicomp electrolytic capacitor MP004262 online today and benefit from its high stability, robust build, and wide voltage and capacitance range. Designed for demanding applications, it offers excellent ripple current capacity, reliable operation at -40°C to +85°C, and various mounting options. Perfect for power filtering, energy storage, and industrial uses, this capacitor ensures long service life, RoHS compliance, and versatile mounting styles. Secure your stock now and upgrade your electrical systems with trusted quality fully available online.
Order your Multicomp Series MP004262 electrolytic capacitor today and enhance your power filtering or energy storage projects with reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004262?
You can click on the BUY or RFQ button to purchase MP004262 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004262?
You can download the MP004262 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004262?
MULTICOMP-PRO
