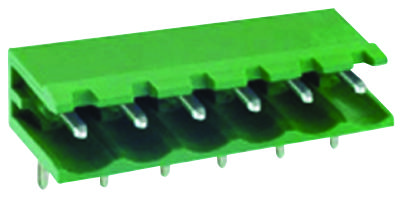

MULTICOMP PRO ME01050802 Pluggable Terminal Block
This pluggable terminal block header features a 5.08mm pitch and open end design, ideal for PCB applications requiring reliable connections. Constructed with a polyamide 66 insulating body and brass tin-plated solder pins, it ensures durability and corrosion resistance. Rated for 16 Amp at AC300V, with insulation withstand voltage of at least 2000V and an insulation resistance over 2000MQ DC500V, it performs efficiently within temperatures from -40°C to +105°C. Suitable for industrial automation, control systems, and wiring projects, it offers easy installation and secure locking. Available in various pole configurations, it supports a wide range of electrical and mechanical requirements.
MULTICOMP PRO ME01050802 Pluggable Terminal Block Specifications:
- Current rating: 16 Amp AC300V
- Insulation withstand voltage: AC2,000V min
- Insulation resistance: >2,000MQ DC500V
- Operation temperature: -40°C to +105°C
- Pitch: 5.08mm (0.2")
- Pole options: 2, 4, 5, 6, 7, 8, 10, 12
- Dimensions vary by pole, e.g., 2 pole: 10.16mm (0.4"), 4 pole: 15.24mm (0.6"), 5 pole: 25.4mm (1")
- Material: Insulating body Polyamide 66, green
- Solder pins: Brass, tin plated
- PCB layout: 5.08#0.1 at i, 1240.3 mm
- Mounting: Right angle, open end
- Compliance: RoHS
- Rated for industrial controls and automation wiring solutions
Buy the Multicomp Pro ME010-50802 – Reliable Terminal Block for Industrial Applications
Experience secure and reliable electrical connections with the Pluggable Terminal Block, featuring a 5.08mm pitch, open end, and right-angle PCB mounting. Constructed with high-quality polyamide and brass tin-plated pins, it ensures durability and corrosion resistance. Rated at 16 Amp and AC300V, it withstands voltages up to 2000V with an insulation resistance exceeding 2000MQ. Its wide range of pole options makes it versatile for industrial automation, control panels, and wiring projects. Easy to install and designed for long-term performance, order online today for efficient connection solutions.
Get Multicomp Pro ME010-50802 today—built for secure connections and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ME01050802?
You can click on the BUY or RFQ button to purchase ME01050802 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ME01050802?
You can download the ME01050802 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ME01050802?
MULTICOMP PRO
