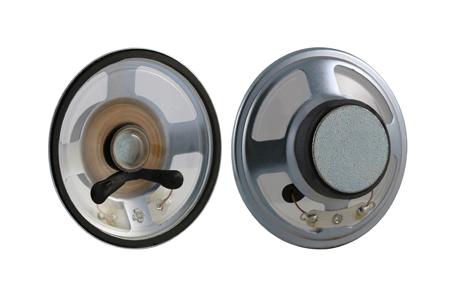

MULTICOMP-PRO MP004284 8 Ohm Audio Speaker
This 8 Ohm speaker features a Mylar cone, rated at 2W power handling with a diameter of 66mm. Designed for reliability, it offers a resonant frequency of 500Hz and a frequency range from 2Hz to 5kHz, making it suitable for various audio applications. Its high impedance and RoHS compliance ensure safety and environmental standards. Constructed with a copper voice coil, ferrite magnet, and IP67 waterproof rating, it performs well across temperature ranges from -20°C to +70°C, delivering clear sound and durability in demanding environments.
MULTICOMP-PRO MP004284 8 Ohm Audio Speaker Specifications:
- Rated impedance at 1kHz/1V: 8 Ohm
- Rated input power: 2W
- Maximum input power: 3W
- Resonant frequency (f0): 500Hz +20%Hz
- Frequency range: 2Hz - 5kHz
- Sound pressure level at 1kHz/1W/0.5m: 85 +3dB
- Total harmonic distortion at 1kHz/1W: 5% Max
- Voice coil diameter: 13.3mm
- Magnet: Ferrite (Nd-Fe-B)
- Material: Frame & Yoke - SPCC, Diaphragm - Mylar, Voice coil - Cu
- IP rating: IP67
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -25°C to +60°C
- Weight: 50g ±10%
- Dimensions: 32mm x 18mm x 6mm
- Polarity: Forward movement when positive DC current applied
- RoHS compliant
Buy the Multicomp Series 8 Ohm Audio Speaker: MP004284
Purchase the multicomp 8 Ohm audio speaker MP004284 online today and elevate your sound projects. Its waterproof IP67 rating, RF performance, and compact size make it ideal for demanding environments. With a robust Mylar cone, copper voice coil, and ferrite magnet, this 2W speaker delivers clear, high-quality sound across a wide frequency range. Easy to install and RoHS compliant, it ensures safety and environmental standards. Trust this durable component for reliable performance in industrial, outdoor, or custom audio applications.
Order your multicomp Series 8 Ohm Audio Speaker MP004284 today and enhance your audio projects with reliable waterproof performance and durable design.
