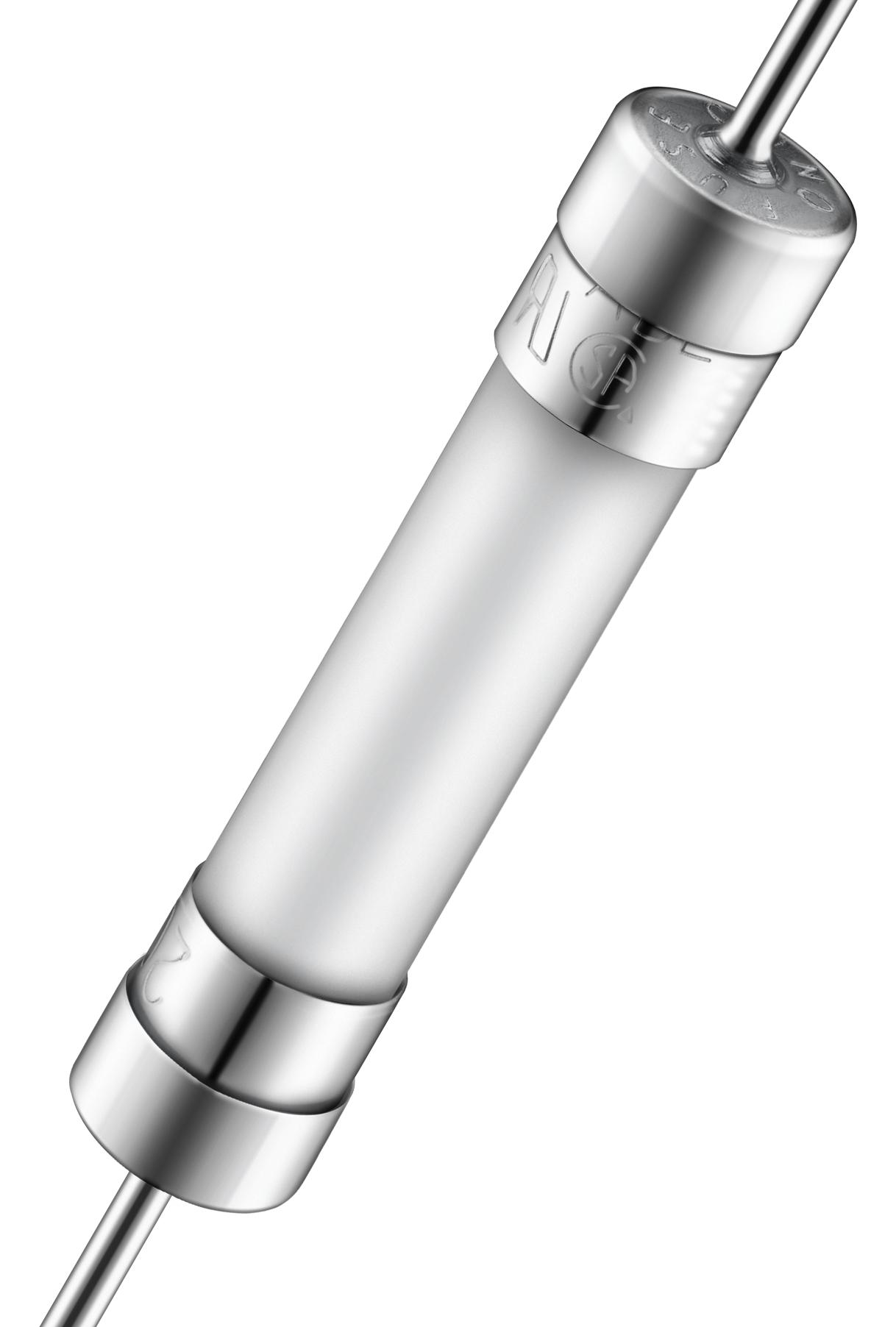

MULTICOMP PRO MP004296 Ceramic Cartridge Fuse
This fast-acting ceramic cartridge fuse features axial leads and measures 6.3mm by 32mm, suitable for overcurrent protection in electrical circuits. Compliant with RoHS, it is recognized by UL, CSA, and PSE agencies, ensuring high safety standards. Rated from 500mA to 30A with an interrupting capacity up to 10,000A at 125V AC/DC, it operates in temperatures from 1°C to 125°C. The body is ceramic with nickel-plated brass caps, and it includes detailed dimensions for reliable installation and operation in various electronic and electrical applications.
MULTICOMP PRO MP004296 Ceramic Cartridge Fuse Specifications:
- Dimensions: 6.3mm x 32mm
- Body Material: Ceramic
- Cap Material: Nickel-plated brass
- Rating Range: 500mA to 30A
- Voltage Rating: 125V AC/DC, 250V AC
- Interrupting Capacity: Up to 10,000A at 125V
- Operating Temperature: 1°C to 125°C
- RoHS Compliant: Yes
- Agency Approvals: UL Listed, CSA Certified, PSE
- Lead Diameter: 0.8 mm
- Total Length (with caps): 33 mm
- Body Diameter: 5.72 mm
- Cap Diameter: 6.35 mm
- Melting I2t: from 0.0184 A²s for 6.3A rating
- Certifications: UL Recognized, CSA Approved
- Application: Overcurrent protection for electronic circuits
Buy the Buy Multicomp Ceramic Cartridge Fuse Part Number MP004296 Online
Secure your electrical systems with the ceramic cartridge fuse. Featuring axial leads, a ceramic body, and high interrupting capacity, this fuse ensures reliable circuit protection. Rated from 500mA up to 30A, it is suitable for various applications requiring fast-acting overcurrent protection. Certified by UL, CSA, and PSE, it complies with RoHS standards and operates effectively between 1°C to 125°C. Easy to install with specified dimensions, this fuse offers durability and safety for electronic and electrical devices.
Buy Multicomp ceramic cartridge fuse MP004296 now and experience unmatched reliability and circuit protection for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004296?
You can click on the BUY or RFQ button to purchase MP004296 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004296?
You can download the MP004296 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004296?
MULTICOMP PRO
