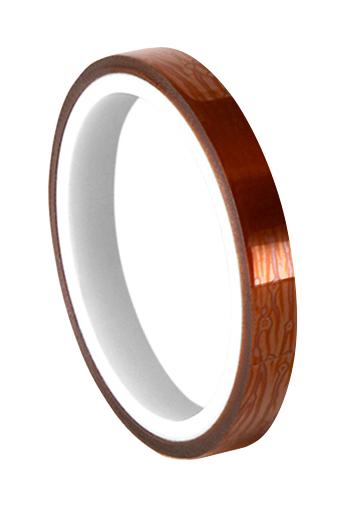

MULTICOMP PRO MP700386 Thermal Conductive Tape
Thermally conductive adhesive transfer tapes improve heat dissipation from electronic components to cooling devices such as heat sinks and heat pipes. Designed with a filled acrylic polymer and ceramic filler, they offer high mechanical strength, excellent surface wet-out on rough or low-energy surfaces, and superior shock resistance. Available in 5 mil and 10 mil thicknesses, they are halogen-free, non-corrosive, and suitable for thin bonding applications. These tapes provide reliable thermal transfer with thermal impedance values of 3.2°C·cm2/W for 5 mil and 5.8°C·cm2/W for 10 mil. They come in various widths up to 22 inches and lengths up to 108 yards, with proper cleaning and pressure recommendations for optimal bond performance, making them ideal for electronics cooling, LED lighting, and power modules.
MULTICOMP PRO MP700386 Thermal Conductive Tape Specifications:
- Tape Type: Filled Acrylic Polymer
- Filler Type: Ceramic
- Color: White
- Tape Thickness: 0.125 mm (5 mils), 0.25 mm (10 mils)
- Surface Resistivity: 1.6 x 10^9 Ohm-cm
- Volume Resistivity: 5.2 x 10^13 Ohm-cm (5 mil), 3.9 x 10^13 Ohm-cm (10 mil)
- Thermal Impedance: 3.2°C·cm2/W (5 mil), 5.8°C·cm2/W (10 mil)
- Thermal Conductivity: 0.6 W/m-K
- Specific Gravity: 1.07 g/cc
- Dielectric Strength: 26 kV/mm (5 mil), 7 kV/mm (10 mil)
- Peel Strength: 990 g/25.4 mm (5 mil), 1300 g/25.4 mm (10 mil) on aluminum
- Shelf Life: 24 months at 22°C and 50% RH
- Maximum Width: 22 inches
- Maximum Length: 108 yards
- Application Temperature: Room temperature, can be heated for enhanced wetting
- Storage Condition: Original packaging at 22°C and 50% RH
Buy the Buy Multicomp Thermally Conductive Adhesive Transfer Part Number MP700386 Online
Order the high-quality Multicomp thermal conductive tape MP700386 online today. Designed for efficient heat transfer, it provides excellent adhesion, shock resistance, and is ideal for electronics cooling, LED lighting, and power modules. Its halogen-free, flexible construction makes it suitable for thin bonding applications. With a 24-month shelf life and customizable sizes, this tape ensures optimal performance across various industrial and electronic applications. Purchase now to enhance your thermal management solutions immediately.
Buy Multicomp MP700386 now and experience reliable heat transfer and durable bonding for electronic cooling applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP700386?
You can click on the BUY or RFQ button to purchase MP700386 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP700386?
You can download the MP700386 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP700386?
MULTICOMP PRO
