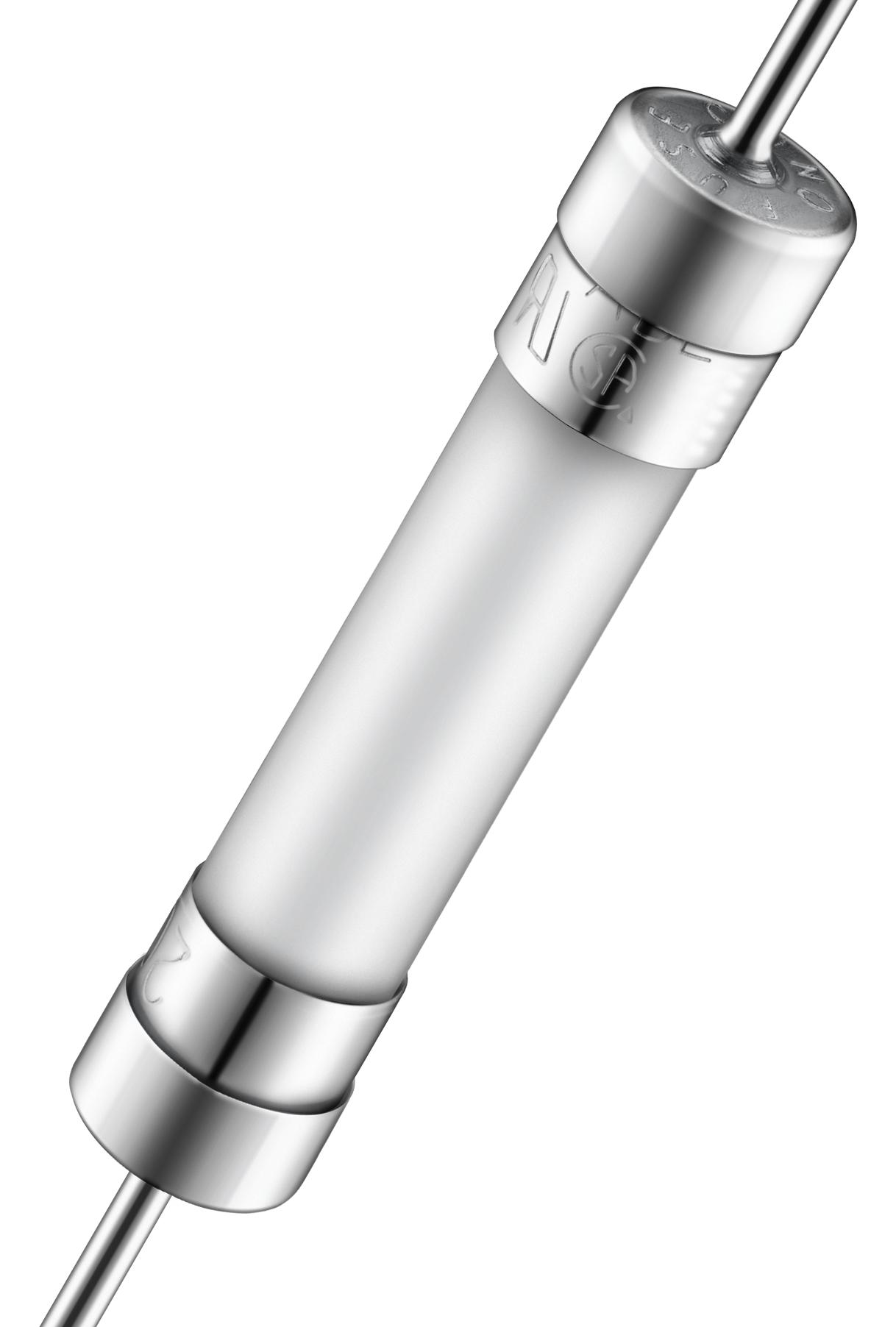

MULTICOMP PRO MP004306 ceramic cartridge fuse
The multicomp series fast acts ceramic cartridge fuse measures 6.3mm x 32mm, suitable for axial lead mounting. It offers high interrupting ratings up to 750A at 250V AC/DC, with ratings spanning from 500mA to 30A. Made of ceramic with nickel-plated brass caps, it supports operating temperatures from 1°C to 55°C, up to a maximum of 125°C. Compliant with RoHS, UL recognized, and CSA certified, this fuse is designed for reliable circuit protection with fast response to overcurrent conditions.
MULTICOMP PRO MP004306 ceramic cartridge fuse Specifications:
- Size: 6.3mm x 32mm
- Material: Body = Ceramic, Caps = Nickel Plated Brass
- Rating: 500mA to 30A
- Voltage: Up to 250V AC/DC
- Interrupting Rating: 750A at 250V AC/DC
- Operating Temperature: 1°C to 55°C, max 125°C
- Lead Wire Diameter: 0.8mm, Length: 38mm ±2mm
- Total Length with Caps: 33mm ±0.75mm
- RoHS Compliant, UL Listed, CSA Certified
- Fast acting response for overcurrent protection
Buy the Multicomp Series Fast Acting Ceramic Fuse: MP004306
Experience fast, reliable circuit protection with the multicomp ceramic cartridge fuse, 6.3mm x 32mm. Designed for electronic devices, it handles rated currents from 500mA to 30A, with high interrupting capacity up to 750A at 250V AC/DC. Made with ceramic body and nickel-plated brass caps, supports temperatures from 1°C to 125°C. UL listed and RoHS compliant, this fuse ensures safety, durability, and quick response during overcurrent situations, making it essential for industrial and electronic applications.
Get multicomp Series MP004306 today—built for fast response and reliable circuit protection in electronic applications.
