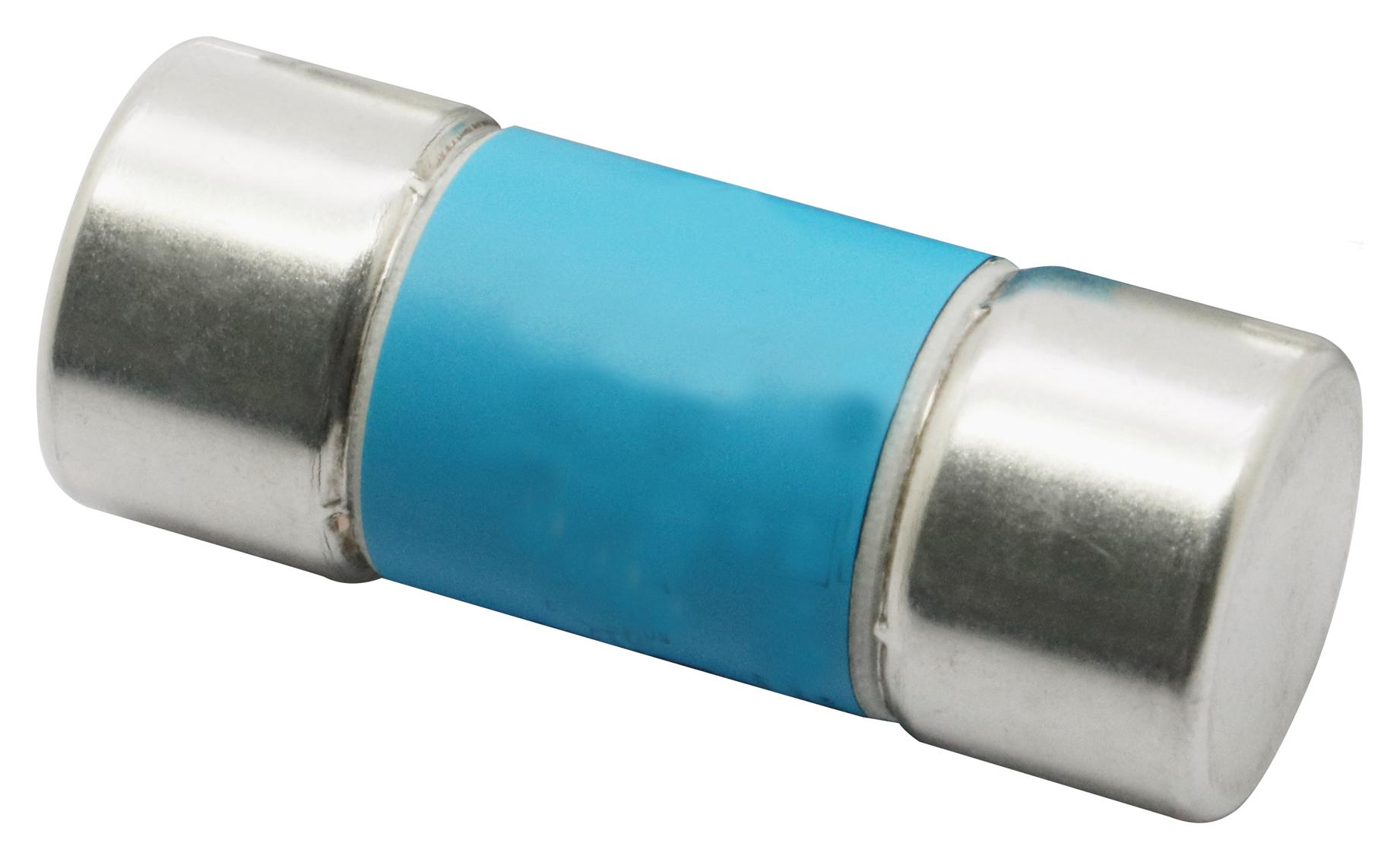

MULTICOMP PRO MP006253 PV Fuse
The gPV Cartridge Fuse is designed for high-power photovoltaic applications, offering reliable protection with a 1500V DC rating and current ratings from 20A to 45A. Featuring a glass-fiber body and silver-plated caps for durability, it provides fast response times with a time constant of 1ms to 3ms. Suitable for DIN rail mounting using BH400 and BH401 holders, it meets UL 248-19 and IEC 60269-6 standards, ensuring safety and compliance for solar power systems and high-voltage electrical circuits.
MULTICOMP PRO MP006253 PV Fuse Specifications:
- Rated Voltage: 1500V DC
- Rated Current: 20A, 25A, 30A, 35A, 40A, 45A
- Breaking Capacity: 10 kA at 1500V DC, 10 kA at 1300V DC for 70A and 80A
- Time Constant: 1ms to 3ms
- Body Material: Glass-fiber with silver-plated caps
- Dimensions: 22mm x 58mm
- Standards: UL 248-19, IEC 60269-6
- Mounting: DIN rail using BH400, BH401 holders
- Approvals: UL (File: E490190)
- Application: PV solar systems, high-voltage electrical protection
Buy the Multicomp Series PV Fuse: 1500V DC 20A to 45A for Solar Protection MP006253
Order the Multicomp Series PV Fuse MP006253 online today and secure your solar power system with high-voltage protection. Featuring a robust glass-fiber body and silver-plated caps, this fuse ensures reliable operation at 1500V DC with current ratings from 25A for safe, efficient performance. Designed for DIN rail mounting with BH400 and BH401 holders, it complies with UL and IEC standards, providing certified safety and durability for high-power photovoltaic and electrical systems. Purchase now for peace of mind in your electrical installations.
Get Multicomp Series PV Fuse MP006253 today—built for high-voltage solar power applications with reliable protection and long-lasting durability.
