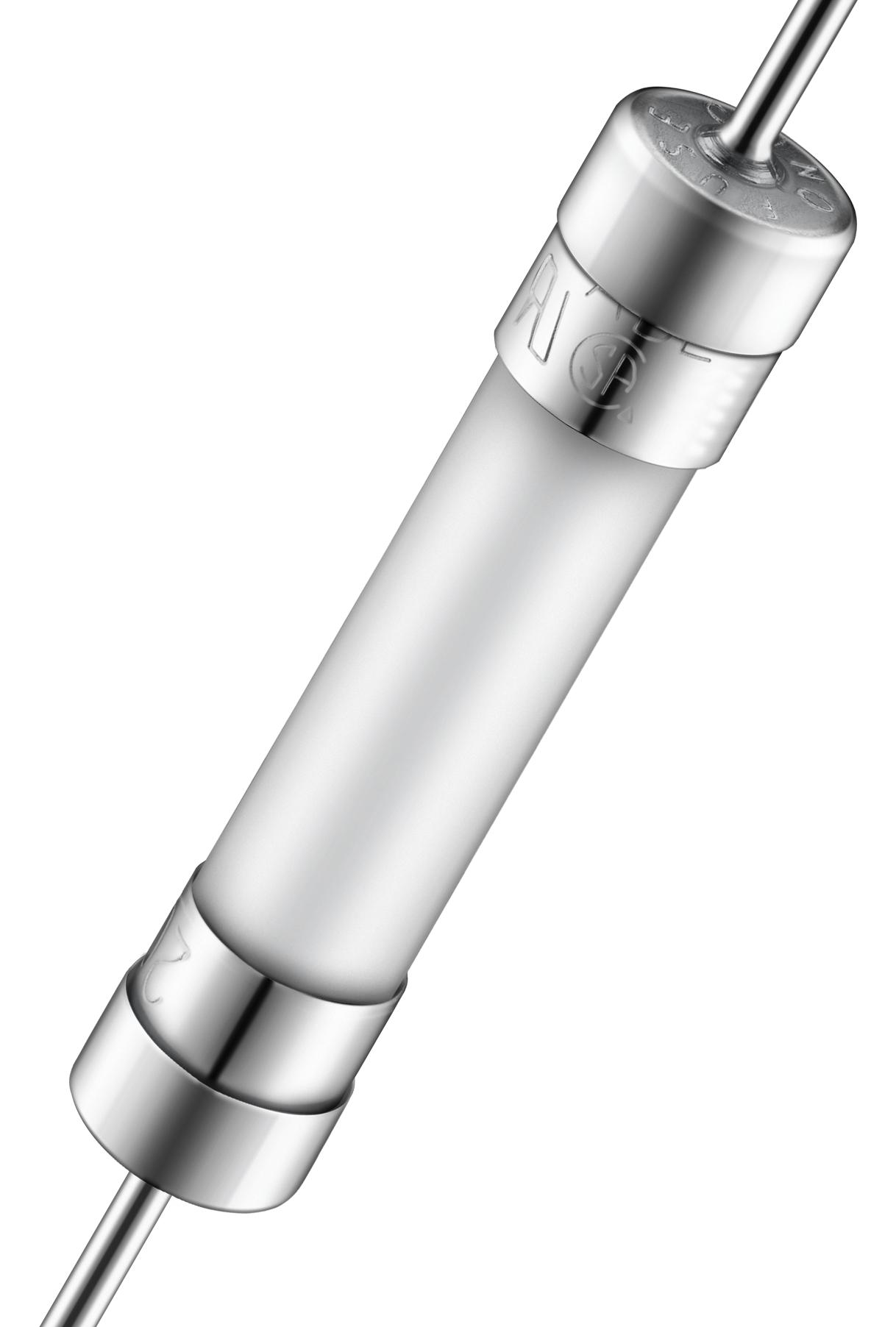

MULTICOMP PRO MP004307 Ceramic Cartridge Fuse
The fast-acting ceramic cartridge fuse with axial leads measures 6.3mm by 32mm, designed for quick circuit protection. Made with a ceramic body and nickel-plated brass caps, it features an adjustable ampere rating from 500mA to 30A and operates within temperatures of -55°C to 125°C. Suitable for AC and DC circuits, it offers high interrupting ratings up to 10,000A at 125V AC and 750A at 250V AC/DC. Certified by UL, CSA, and PSE, it ensures reliable safety standards for various electrical applications.
MULTICOMP PRO MP004307 Ceramic Cartridge Fuse Specifications:
- Size: 6.3mm x 32mm
- Body Material: Ceramic
- Caps: Nickel Plated Brass
- Ampere Rating: 500mA to 30A
- Voltage Rating: 125V AC, 250V AC/DC
- Interrupting Rating: Up to 10,000A at 125V AC
- Operating Temperature: -55°C to 125°C
- Rated Current: 500mA, 750mA, 1A, 2A, 3A, 4A, 5A, 6A, 10A, 15A, 20A, 25A, 30A
- Lead Wire Diameter: 0.8 mm
- Lead Length: 38 ± 2 mm
- Certification: UL Listed, CSA Certified, PSE
- Rated Voltage: 125V AC/DC, 250V AC
- Mechanical Dimensions: Cap Diameter 6.35 mm, Height 6.45 mm, Ceramic Diameter 5.72 mm
- High Melting Capacity: Up to 10,000A at 125V AC
- Application: Circuit protection in electrical devices
Buy the Buy multicomp Ceramic Cartridge Fuse Part Number MP004307 Online
Purchase the multicomp Ceramic Cartridge Fuse MP004307 online today to experience superior circuit safeguarding. This fast-acting fuse features a ceramic body and nickel-plated brass caps, providing dependable performance in AC and DC systems. Rated from 500mA to 30A, it withstands temperature ranges from -55°C to 125°C and offers high interrupting capacity up to 10,000A at 125V AC. Certified by UL, CSA, and PSE, it guarantees adherence to safety standards, ensuring optimal protection for your electrical appliances and circuits.
Buy multicomp MP004307 now and ensure reliable electrical circuit protection with high interrupting ratings and certified safety features.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004307?
You can click on the BUY or RFQ button to purchase MP004307 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004307?
You can download the MP004307 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004307?
MULTICOMP PRO
