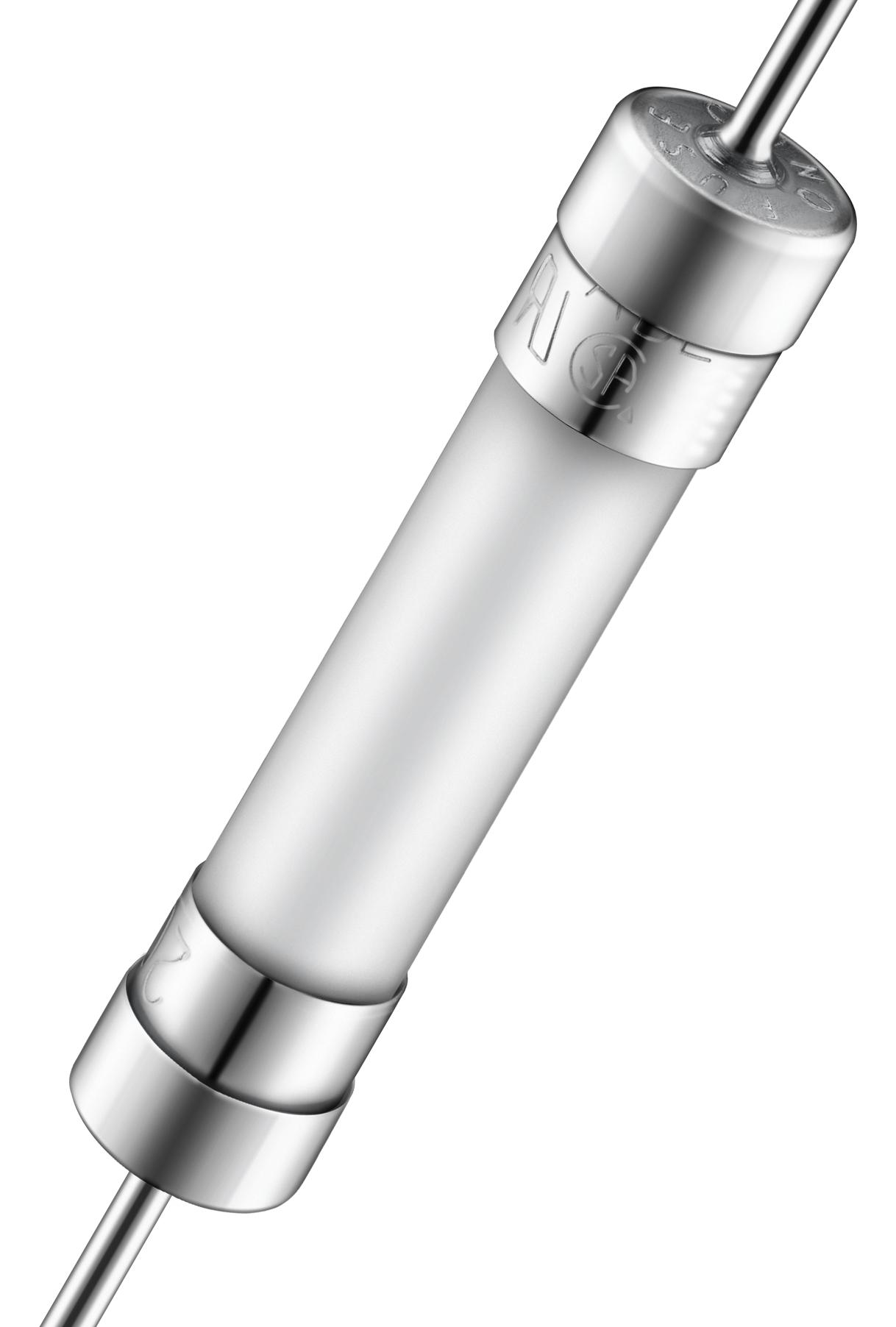

MULTICOMP PRO MP004311 Ceramic Cartridge Fuse
This high-quality ceramic cartridge fuse is designed for fast acting circuit protection in electronic devices. Measuring 6.3mm by 32mm, it features axial leads for easy installation. Suitable for AC and DC applications, it offers reliable interruption ratings up to 100A at 125V AC and 400A at 125V DC. The fuse body is ceramic with nickel-plated brass caps, ensuring durability and excellent thermal stability. It conforms to RoHS standards, is UL listed, CSA certified, and recognized in Canada and the US, making it ideal for a wide range of industrial and electronic safeguarding needs.
MULTICOMP PRO MP004311 Ceramic Cartridge Fuse Specifications:
- Body Material: Ceramic
- Cap Material: Nickel plated brass
- Wire Diameter: 0.8 mm
- Lead Length: 38 ± 2 mm
- Total Length with Caps: 33 ± 0.75 mm
- Diameter of Cap: 6.35 mm
- Height of Cap: 6.45 mm
- Diameter of Ceramic: 5.72 +0.2 mm
- Rated Current: 500mA to 30A
- Rated Voltage: 125V AC / 250V AC / 125V DC
- Interrupting Rating: up to 100A at 125V AC, 400A at 125V DC
- Operating Temperature: -55°C to 125°C
- RoHS Compliant, UL Listed, CSA Certified, PSE Approved
Buy the Multicomp Series Ceramic Cartridge Fuse: MP004311
Purchase the ceramic cartridge fuse today for reliable circuit protection in electronic and industrial applications. With a compact size of 6.3mm x 32mm, RoHS compliance, and certifications including UL and CSA, this fuse is ideal for safeguarding sensitive electronic equipment. Its high interrupting ratings ensure safe disconnection during overloads or short circuits. Easy to install with axial leads, it's suitable for both AC and DC circuits. Ensure safety and optimal performance by choosing our high-quality ceramic fuse—order online now for fast delivery.
Get Multicomp Series MP004311 today—built for precise circuit protection and long-lasting durability.
