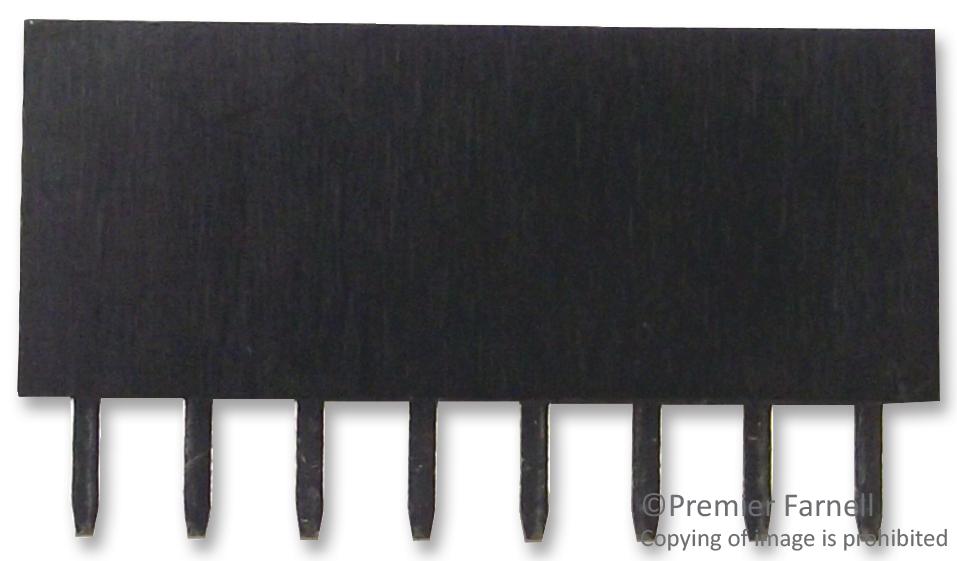

MULTICOMP PRO 2212S20SG85 PCB Socket Single Row
The MULTICOMP PRO 2212S-20SG-85 is a 2.54mm pitch, single-row PCB socket connector designed for secure and reliable connections in electronic circuits. This connector offers a current rating of 3A and a voltage rating of 250V, making it suitable for a wide range of applications including industrial control systems, automation equipment, and consumer electronics. The connector's construction utilizes copper alloy contacts for excellent conductivity and a PBT insulator for robust insulation and durability. Its straight design ensures easy integration into PCB layouts, while the selective gold plating on the contacts guarantees low contact resistance and long-term reliability. Available in various contact configurations to meet diverse application needs.
MULTICOMP PRO 2212S20SG85 PCB Socket Single Row Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000 MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT
- Contact Material: Copper alloy
- Contact Finish: Selective gold plated
- General Tolerance: 0.X=±0.2, .XX=±0.15
- Number of Contacts: 20
- A (mm): 51.3
- B (mm): 48.26
