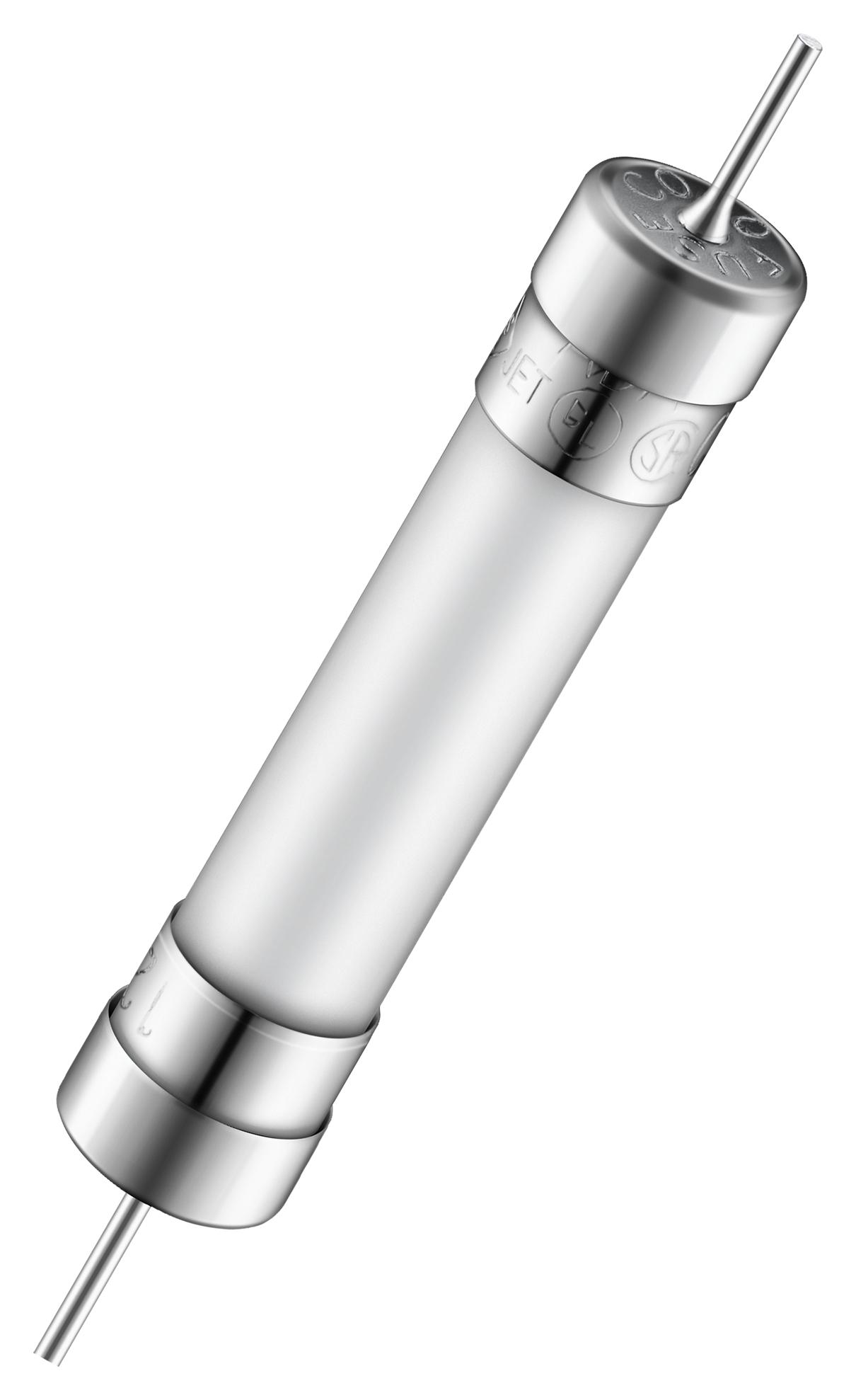

MULTICOMP PRO MP004322 Ceramic Cartridge Fuse
This Time-Lag Ceramic Cartridge Fuse with axial leads provides reliable overcurrent protection for various electrical devices and industrial applications. Designed with ceramic body and nickel plated brass caps, it ensures durability and consistent performance in temperature ranges from -55°C to 125°C. The fuse ratings range from 800mA to 30A with voltage ratings up to 250V AC or DC, conforming to UL, CSA, and PSE standards. Its compact size of 6.3mm diameter and 32mm length makes it suitable for space-constrained panels and equipment, offering high interrupting ratings up to 10,000A for safe circuit disconnection.
MULTICOMP PRO MP004322 Ceramic Cartridge Fuse Specifications:
- Body Material: Ceramic
- Caps Material: Nickel Plated Brass
- Lead Wire Diameter: 0.8 mm for 12A and less, 1.0 mm for ratings above 13A to 19A, 1.2 mm for ratings above 20A
- Dimensions: 6.3mm diameter, 32mm length
- Temperature Range: -55°C to 125°C
- Maximum Voltage Rating: 250V AC/DC
- Rated Currents: 800mA to 30A
- Interrupting Rating: Up to 10,000 amperes at 125V AC
- Standards: UL Listed, CSA Certified, PSE
- Operation Time: 4 hours at rated current, faster blow at 135% rating in seconds
- Part Numbers: MP004318, MP004319, MP004322, etc.
Buy the Multicomp Reliable Time-Lag Ceramic Fuse for Industrial Applications
Get the authentic Multicomp ceramic cartridge fuse series MP004322 online today for top-tier overcurrent protection. Designed for electrical safety and durability, these fuses handle ratings from 800mA up to 30A with high interrupting capacities. They are suitable for various industrial and consumer equipment, featuring ceramic bodies and nickel-plated brass caps for long-lasting performance. Easy to install in space-constrained panels, these fuses meet UL, CSA, and PSE standards. Secure your circuit protection needs and order online now for fast delivery and dependable quality.
Order your Multicomp Series MP004322 ceramic time-lag fuse today and ensure your electrical devices are protected with high-quality, reliable circuit protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004322?
You can click on the BUY or RFQ button to purchase MP004322 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004322?
You can download the MP004322 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004322?
MULTICOMP PRO
