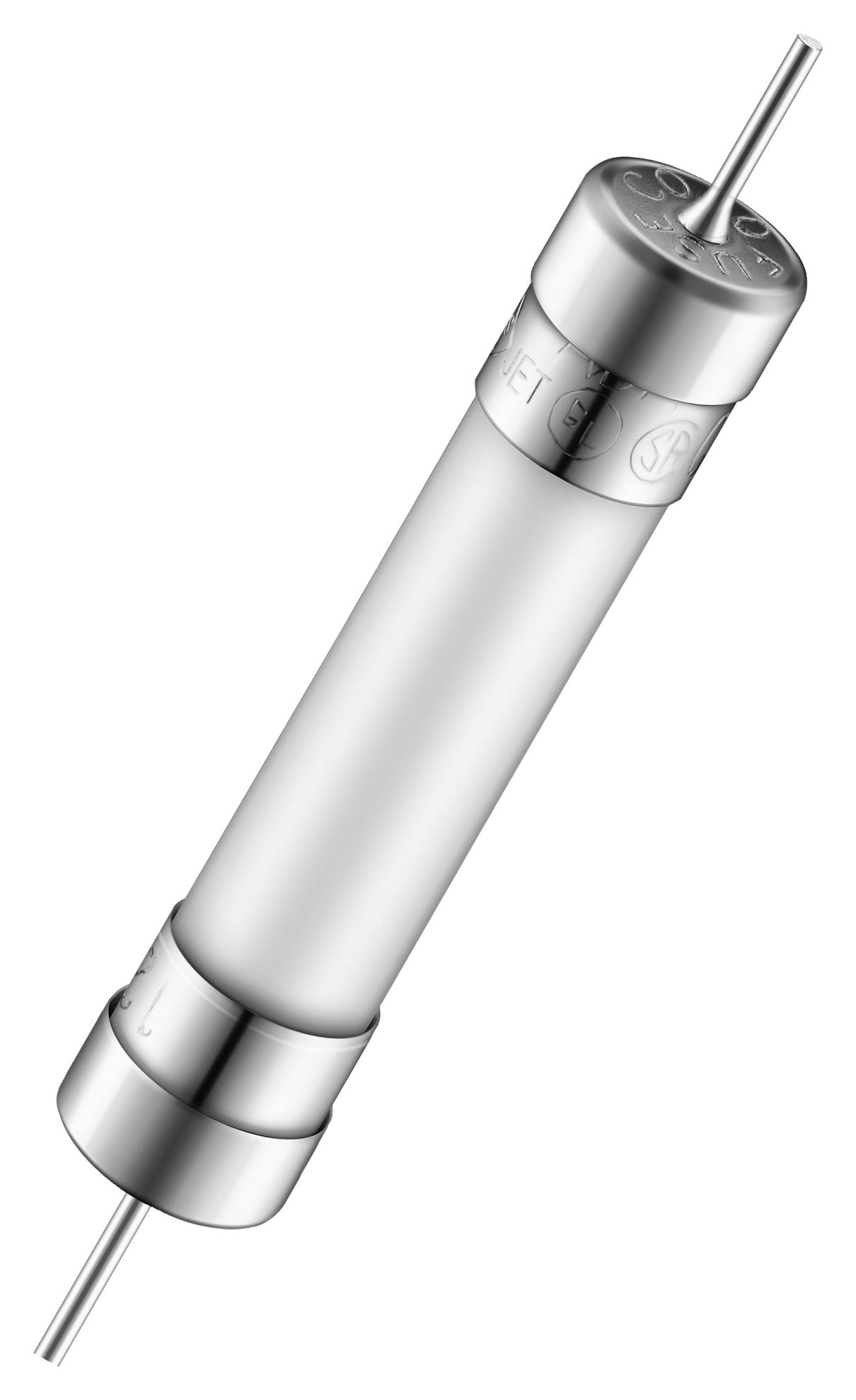

MULTICOMP PRO MP004327 Ceramic Cartridge Fuse
The Time-Lag Ceramic Cartridge Fuse is an axial leaded fuse measuring 6.3mm by 32mm, designed for circuit protection with various current ratings from 800mA to 30A. It features a ceramic body with nickel-plated brass caps and lead wires of different diameters depending on current ratings. The fuse supports a breaking capacity up to 10,000 amperes at 125V AC, with certifications including UL and CSA. It is suitable for applications requiring reliable overload and short circuit protection in electrical systems, operating within temperatures from -55°C to 125°C.
MULTICOMP PRO MP004327 Ceramic Cartridge Fuse Specifications:
- Dimensions: 6.3mm diameter x 32mm length
- Body Material: Ceramic
- Caps Material: Nickel Plated Brass
- Lead Wire Diameter: 0.8 mm for 12A and less, 1.0 mm for above 13A to 19A, 1.2 mm for above 20A
- Operating Temperature: -55°C to 125°C
- Interrupting Rating: Up to 10,000A at 125V AC
- Rated Voltage: 250V AC (varies by current rating)
- Rated Current: 800mA to 30A
- Certifications: UL Listed, CSA Certified
- Protection Type: Time-lag (delayed)
Buy the Buy multicomp:ro Time-Lag Ceramic Cartridge Fuse Part Number MP004327 Online
Purchase the multicomp:ro Ceramic Cartridge Fuse MP004327 online today for dependable circuit protection. With current ratings spanning from 800mA to 30A, it provides high breaking capacity up to 10,000A at 125V AC. Engineered with durable ceramic bodies and nickel-plated brass caps, it ensures safety and longevity in your electrical systems. Ideal for applications demanding precise overload and short circuit safeguards, this fuse operates efficiently within -55°C to 125°C temperature range. Shop now for fast, secure online ordering and enhanced electrical reliability.
Buy multicomp:ro MP004327 now and experience reliable overload protection with high current ratings and UL safety certification.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004327?
You can click on the BUY or RFQ button to purchase MP004327 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004327?
You can download the MP004327 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004327?
MULTICOMP PRO
