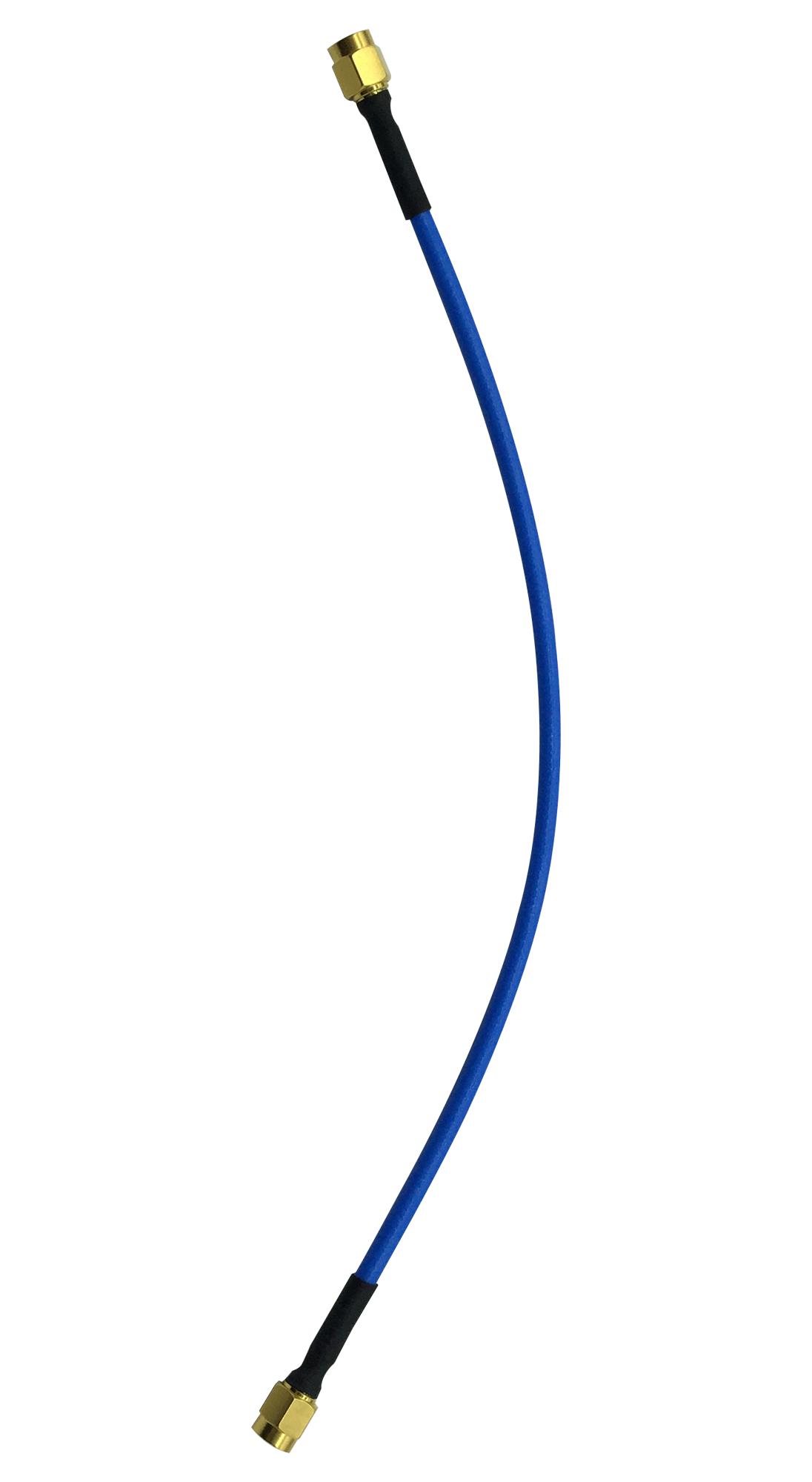

MULTICOMP PRO MC002992 RF Cable Assembly
This 250mm RF cable assembly features an SMA straight plug connector at both ends, designed for high-frequency applications up to 18GHz. Made with brass and gold-plated for durability and optimal signal transmission, it includes PTFE insulation for excellent dielectric performance. The cable offers a 500V RMS voltage rating, low contact resistance, and high durability with 500 mating cycles. Its blue jacket provides protection and easy identification, suitable for RF testing, communications, and industrial signal applications, ensuring reliable connections in demanding environments.
MULTICOMP PRO MC002992 RF Cable Assembly Specifications:
- Cable Length: 250mm + 5mm
- Connector Type A: SMA Straight Plug
- Connector Type B: SMA Straight Plug
- Cable Type: Coaxial
- Jacket Colour: Blue
- Impedance: 50 Ohms
- Frequency: 0-18GHz
- VSWR: 1.2@18GHz
- Return Loss: 20.828dB@18GHz
- Voltage Rating: 500V RMS
- Insulation Resistance: 5,000 MΩ Min.
- Dielectric Withstanding Voltage: 1000V AC / 1 min. hold
- Contact Resistance: Centre contact: 3 mΩ Max., Outer contact: 2 mΩ Max.
- Mating Cycles: 500 times
- Body Material: Brass, Gold Plated
- Centre Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
Buy the multicomp SMA Straight Plug RF Cable – Reliable 250mm for Industrial Applications
Upgrade your RF connectivity with this 250mm SMA straight plug cable assembly. Designed for high-frequency applications up to 18GHz, it features durable brass and gold-plated connectors, PTFE insulation for excellent dielectric properties, and a blue jacket for easy identification. With a 500V RMS rating, low contact resistance, and 500 mating cycles, it ensures reliable, long-lasting connections. Ideal for test equipment, communication systems, and industrial signal transmission, offering consistent performance in demanding environments.
Buy multicomp SMA Straight Plug RF Cable assembly now and experience unmatched reliability and performance for your RF testing and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002992?
You can click on the BUY or RFQ button to purchase MC002992 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002992?
You can download the MC002992 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002992?
MULTICOMP PRO
