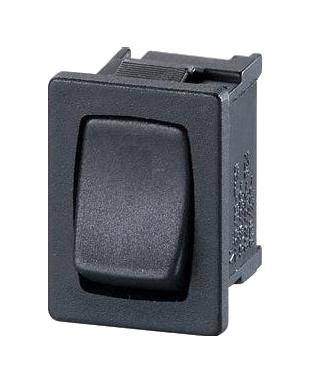

MULTICOMP PRO MP004406 Miniature Rocker Switch
The multicomp Pro miniature rocker switches are compact, durable, and RoHS compliant components suitable for small appliances and control panels. Available in non-illuminated and illuminated versions, these switches feature a 13mm x 19mm cut-out size, rapid-faston tabs (4.8mm x 0.8mm), and a cycle life of 50,000 operations. They support SPST, Latching, SPDT, Latching functions, with ratings up to 10A/250V AC, and meet UL, ENEC, CQC, CE standards. Their splash-proof caps offer IP65 protection when correctly installed, ensuring reliable performance in demanding environments.
MULTICOMP PRO MP004406 Miniature Rocker Switch Specifications:
- Cut Out Size: 13mm x 19mm
- Actuator Type: Rocker
- Body Material: PVC with splash-proof cap
- Switch Action: Latching, SPST, SPDT, DPST
- Electrical Rating: 10A/250V AC
- Cycle Life: 50,000 operations
- RoHS Compliant
- Ingress Protection: IP65 when fitted correctly
- Faston Tabs Size: 4.8mm x 0.8mm
- Ambient Temperature: 125°C
- Standards: UL, ENEC, CQC, CE
- Color Options: Black, White, Red, Green
- Illumination: Non-illuminated and illuminated versions available
- Switch Cap: Snap-fit, splash-proof, designed for quick installation
Buy the Buy multicomp Pro Switch Part Number MP004406 Online
Purchase the multicomp Pro MP004406 miniature rocker switch online today to ensure your small appliance or control panel maintains reliable operation. These compact switches offer a robust design with IP65 splash-proof protection, rated up to 10A/250V AC, and support multiple functions including SPST and SPDT. With a cycle life of 50,000 operations, RoHS compliance, and quick snap-fit installation, they deliver long-lasting durability. Upgrade your equipment with confidence by ordering these high-quality switches today.
Buy multicomp Pro MP004406 now and enjoy reliable performance with durable, splash-proof rocker switches suitable for small appliances and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004406?
You can click on the BUY or RFQ button to purchase MP004406 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004406?
You can download the MP004406 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004406?
MULTICOMP PRO
