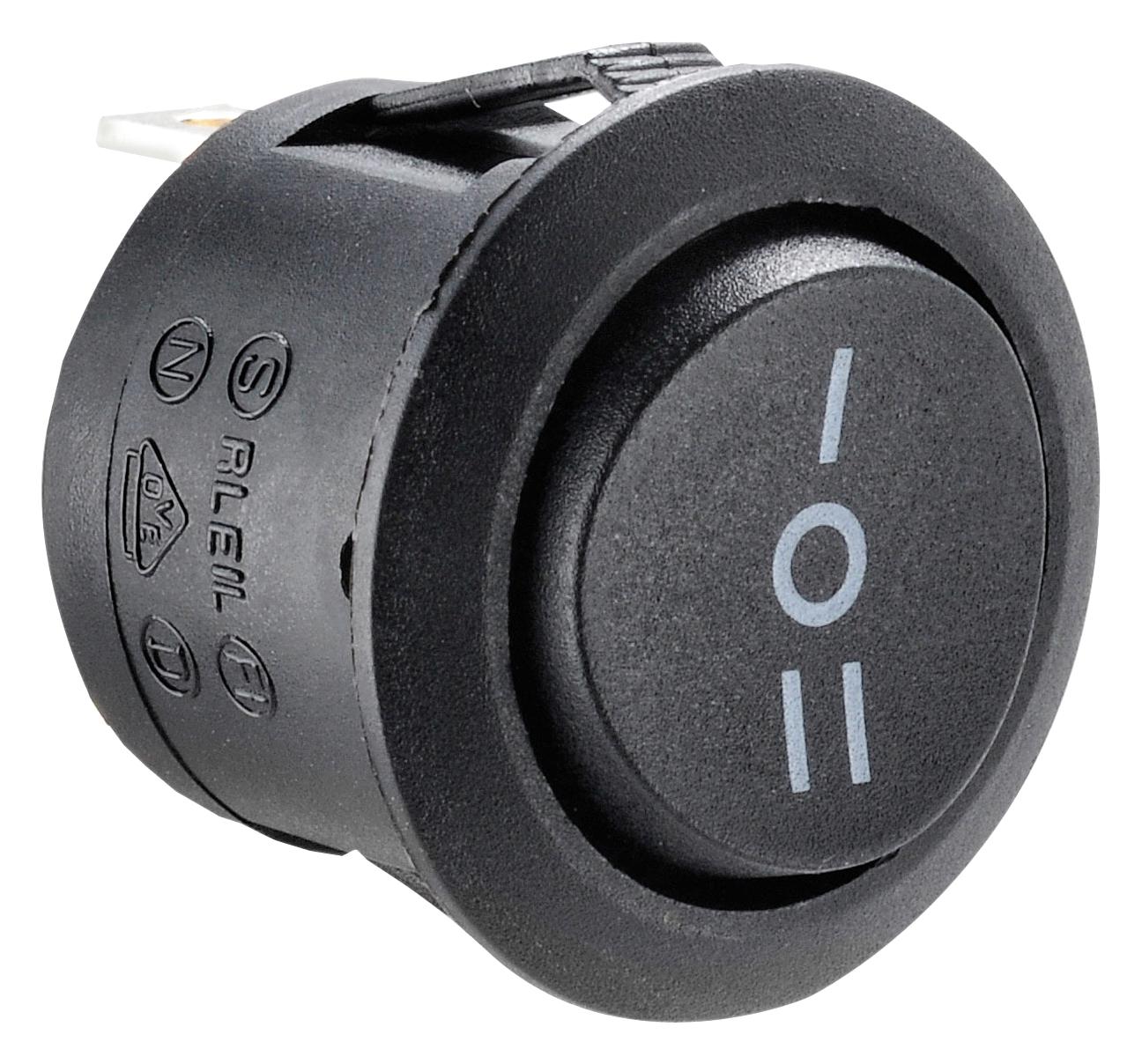

MULTICOMP PRO MP004431 Round Rocker Switch
The 20mm round rocker switches are designed for electronic and industrial applications, offering a variety of configurations including SPST, SPDT, and DPDT, with both latching and momentary switch actions. These switches are UL and ENEC approved, feature nylon housings with copper alloy terminals, and are suitable for mounting over 20mm cut-outs. Available in different voltages, colors, and markings, they are ideal for operational control, power applications, and device interfaces, providing reliable switching performance in a compact form factor.
MULTICOMP PRO MP004431 Round Rocker Switch Specifications:
- Housing Material — Nylon #66 UL 94V-2
- Rocker Material — Nylon #66 UL 94V-2
- Terminal Material — Copper alloy SN or AG plated
- Contact Material — AgNi (15) alloy
- Switch Action — SPST, SPDT, DPDT, latching or momentary
- Rated Current — 6A/250V AC, 10A/250V AC, 12V DC, 24V DC, 250V AC
- Colors — Black, Red, Green, White
- Body Marking — Various
- Approval — UL, ENEC
- Actuator Size — 20mm diameter
- Cut Out Size — 19.2mm to 19.6mm
- Panel Thickness — Not specified
- Switch Type — Rocker, switch action center off, changeover, on-off
- Additional — Splash-proof cap available for over 20mm switches
- RoHS Compliant — Yes
Buy the Multicomp Series 20mm Round Rocker Switch: MP004431
Enhance your control panel with the versatile 20mm round rocker switches from Multicomp. Featuring various configurations such as SPST, SPDT, and DPDT, these switches are UL and ENEC approved for safety and reliability. Crafted with durable nylon housings and copper alloy terminals, they offer a compact, robust solution suitable for industrial, consumer, and automation applications. Choose from multiple voltages, colors, and markings to fit your specific needs. Purchase online today for fast delivery and dependable performance in your electronic devices.
Order your Multicomp Series 20mm Round Rocker Switch MP004431 today and ensure reliable control for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004431?
You can click on the BUY or RFQ button to purchase MP004431 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004431?
You can download the MP004431 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004431?
MULTICOMP PRO
