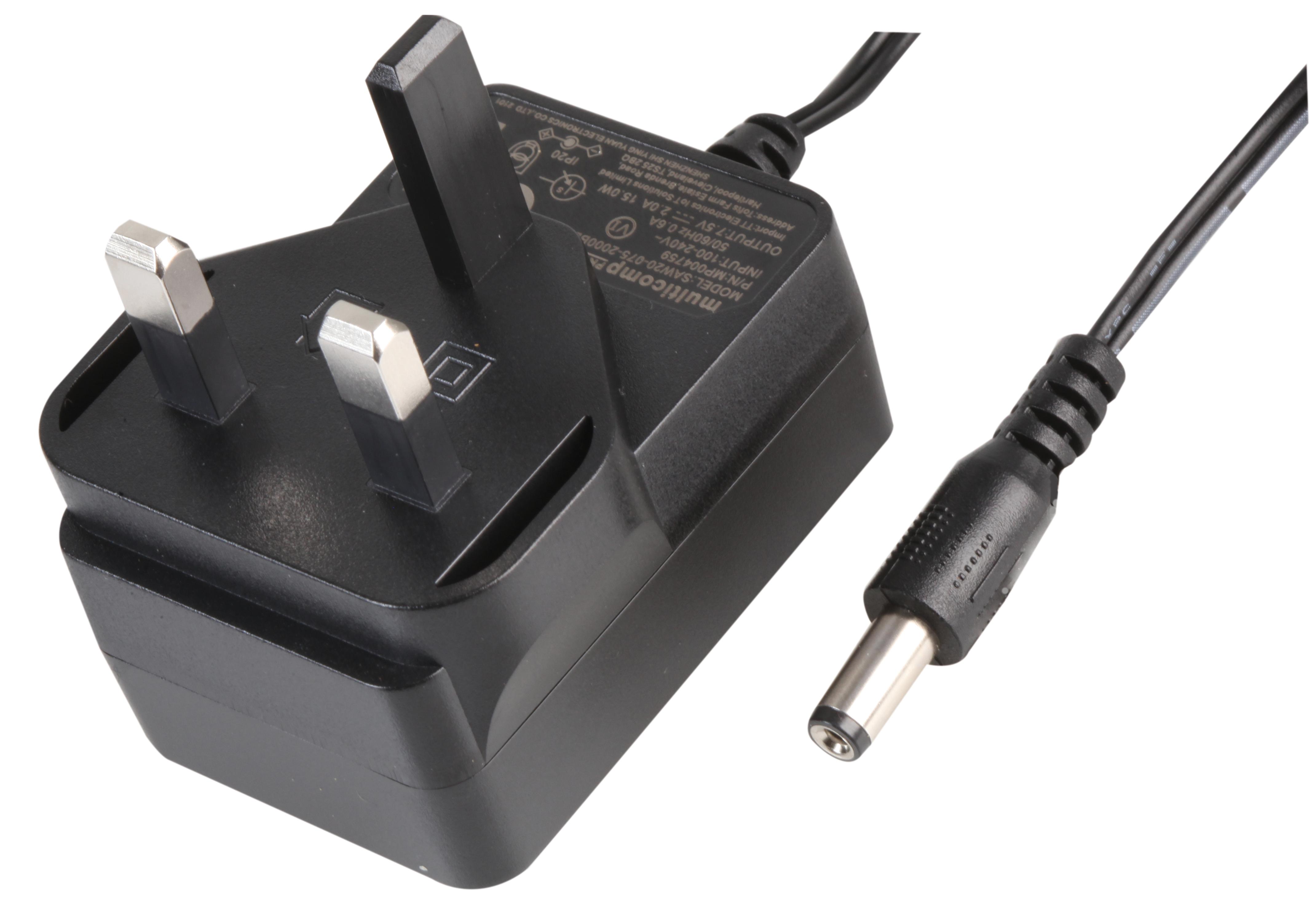

MULTICOMP PRO MP004759 Wall Power Supply
This 15W UK Wall Plug Adapter provides a reliable 7.5V DC output at 2A, ideal for various general power applications. It features a compact design with a European fixed UK plug head, RoHS compliance, and Level VI efficiency, ensuring reduced energy consumption. The adapter supports AC input voltages from 90V to 264V and frequencies between 47Hz and 63Hz. It delivers a stable output with ripple & noise of 200mVp-p, an efficiency minimum of 81.39%, and built-in safety standards, making it suitable for sensitive electronic devices in diverse environments across a wide temperature and humidity range.
MULTICOMP PRO MP004759 Wall Power Supply Specifications:
- AC Input Voltage: 90V AC to 264V AC
- AC Input Frequency: 47Hz to 63Hz
- Output Voltage: +7.5V
- Nominal Load Current: 2A
- Nominal Output Power: 15W
- Input AC Current: 0.6A max.
- Inrush Current: 40A max.
- Output Regulation: 45%
- Line Regulation: 45%
- Ripple & Noise: 200mVp-p.
- Average Efficiency: 81.39% Min
- Size: 59mm (L) x 48.54mm (W) x 26.4mm (H)
- Weight: 139g
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 20% to 85%
- Safety Certification: BS EN60950-1, EN55022, EN61000-3-2
- MTBF: 50,000 hours
Buy the Buy Multicompp Pro 15W Wall Plug Adapter Part Number MP004759 Online
Purchase the Multicompp Pro 15W UK Wall Plug Adapter MP004759 online today. Designed for efficient and reliable power with a compact UK plug, this adapter supplies 7.5V DC at 2A, suitable for a wide range of electronic applications. Features include RoHS compliance, high efficiency over 81%, ripple noise of 200mVp-p, and safety certifications ensuring secure operation. With an input voltage range from 90V to 264V and support for diverse environments, it offers a dependable power source for home, industrial, and professional equipment. Easy to install and ideal for replacing or enhancing existing power supplies.
Buy Multicompp Pro MP004759 now and experience reliable power delivery with compact UK plug design and high efficiency for your electronic devices.
